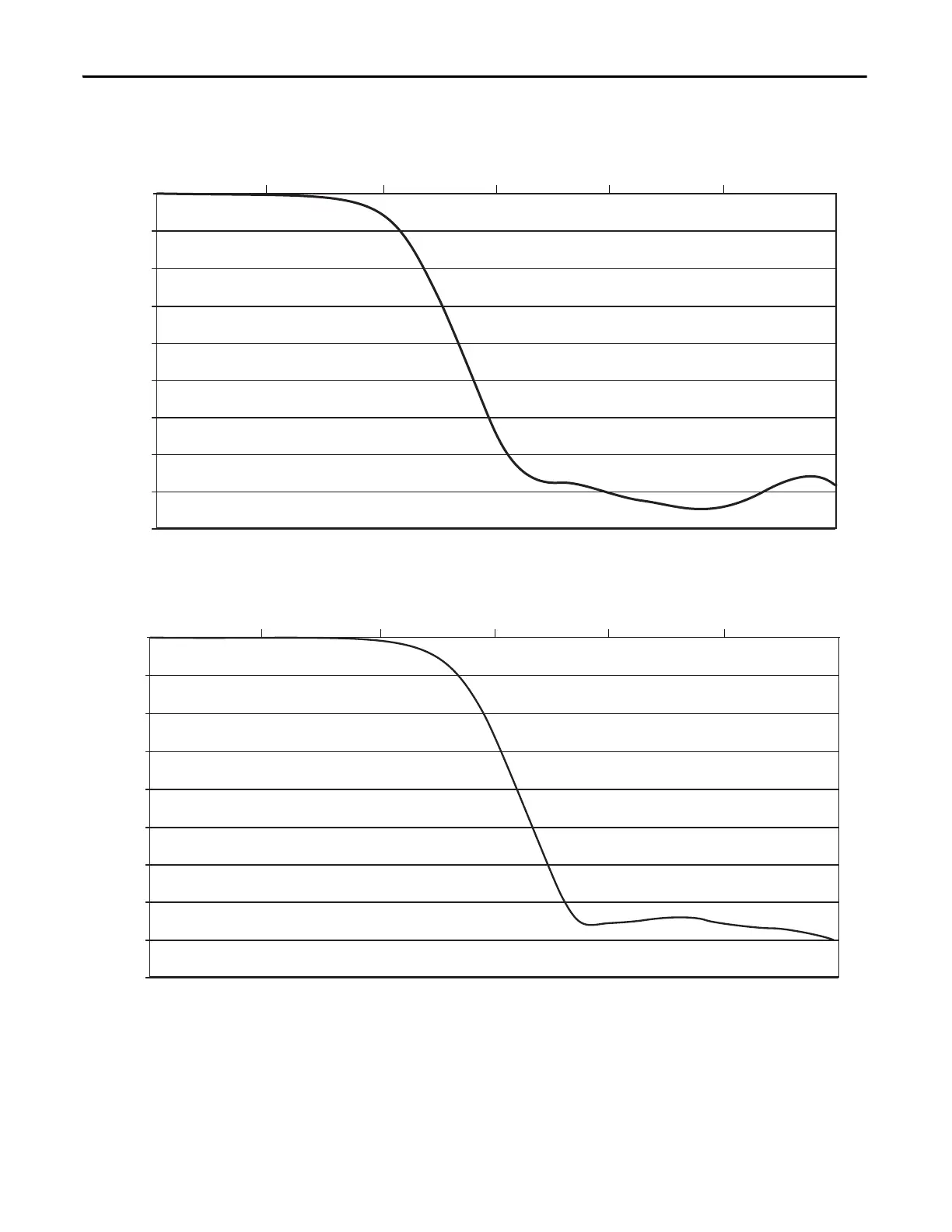

Figure 50 - Frequency Response of Current Input with Filter = 1 Hz
Figure 51 - Frequency Response of Current Input with Filter = 5 Hz
0.01 0.10 1.00 10.00 100.00 10000.001000.00
-30
-20
-10
-40
-70
-80
-60
-50
-90
Frequency (Hz)
Frequency Response (dB)
ADC resolution = -72.2 dB
0.01 0.10 1.00 10.00 100.00 10000.001000.00
-30
-20
-10
-40
-70
-80
-60
-50
-90
Frequency (Hz)
Frequency Response (dB)
ADC resolution = -72.2 dB
