78 Rockwell Automation Publication 1734-UM013J-EN-P - July 2014

Chapter 5 Configure the Module in a GuardLogix Controller System

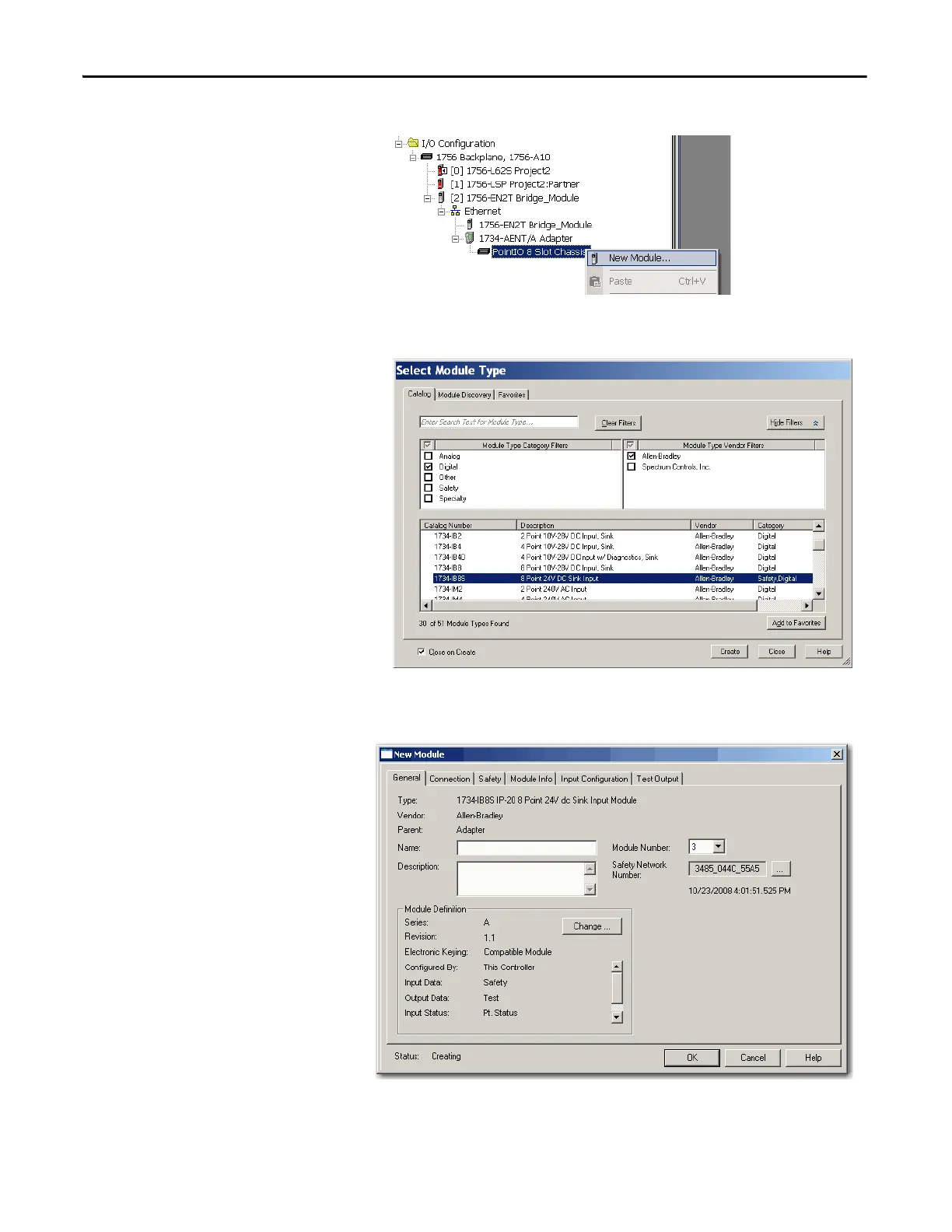

1. Right-click the POINT I/O Chassis and choose New Module.

2. From the Select Module dialog box, check Digital and Allen-Bradley.

3. Select an input module and click Create.

4. Specify the module’s general properties.

a. In the Name field of the New Module dialog box, type a unique name

for the input module.

Default Chapter5
