Rear Panel

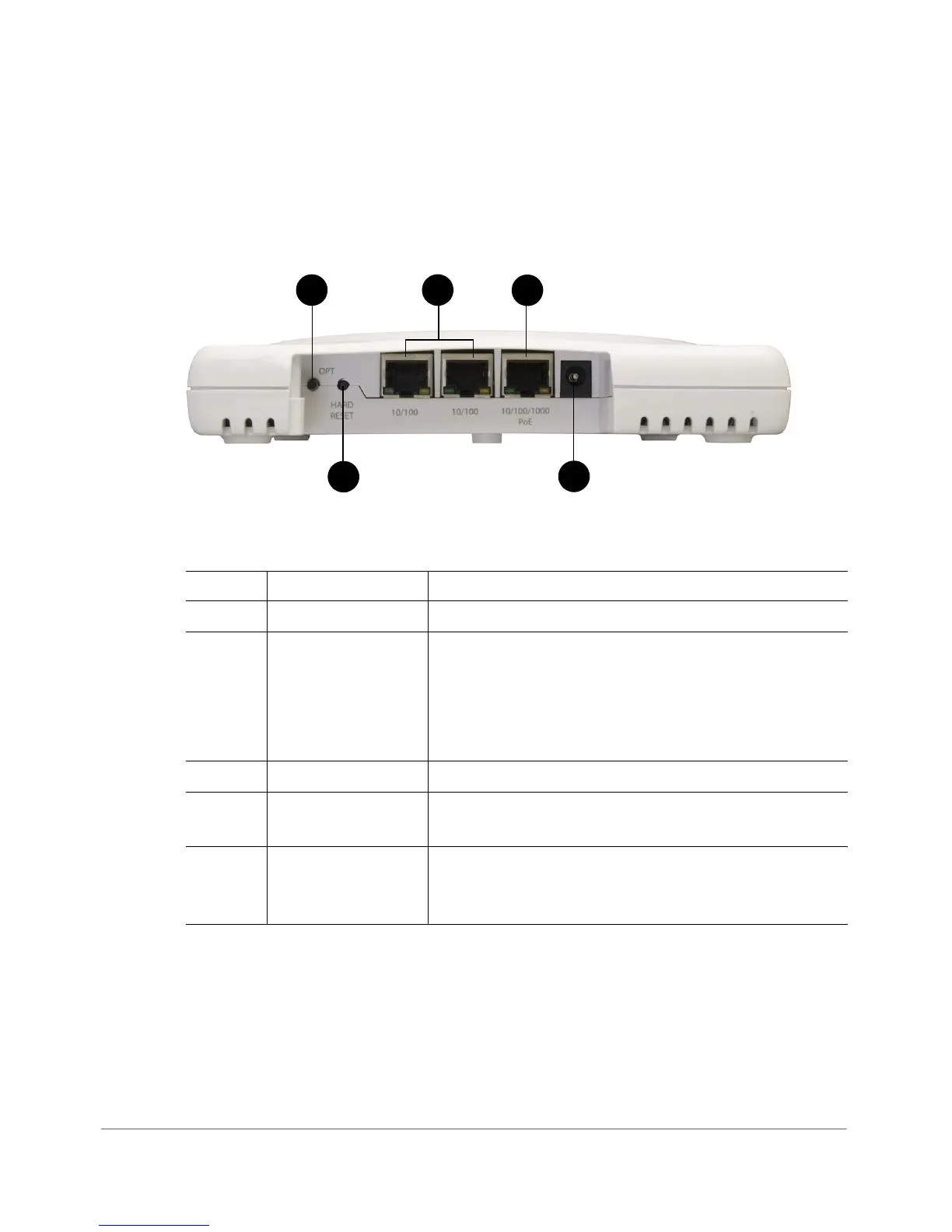

Figure 13 shows the rear panel of the 7363. For a description of each rear panel
part, refer to Ta b l e 1 4.
Figure 13. 7363 rear panel
Table 14. 7363 rear panel elements
Number Item Name Description
1 OPT Button Not active in this model at this time.
2HARD RESET
Button
Pressing, and then quickly releasing this internal button
reboots the AP. Pressing and holding it for six seconds
resets the AP to factory default settings.
CAUTION! Resetting the AP to factory default
settings erases all previously configured settings.
3 10/100 Ports (2) Two RJ-45 ports for 10/100Mbps connections.
4 10/100/1000 PoE
Port
One RJ-45 port for a 10/100/1000 PoE (Power over
Ethernet, 802.3af) connection.
5 Power Connect the power adapter (12 VDC/1.25A) to this
socket. Power can also be supplied via the 10/100/
1000 PoE (802.3af) port.
