Rear Panel

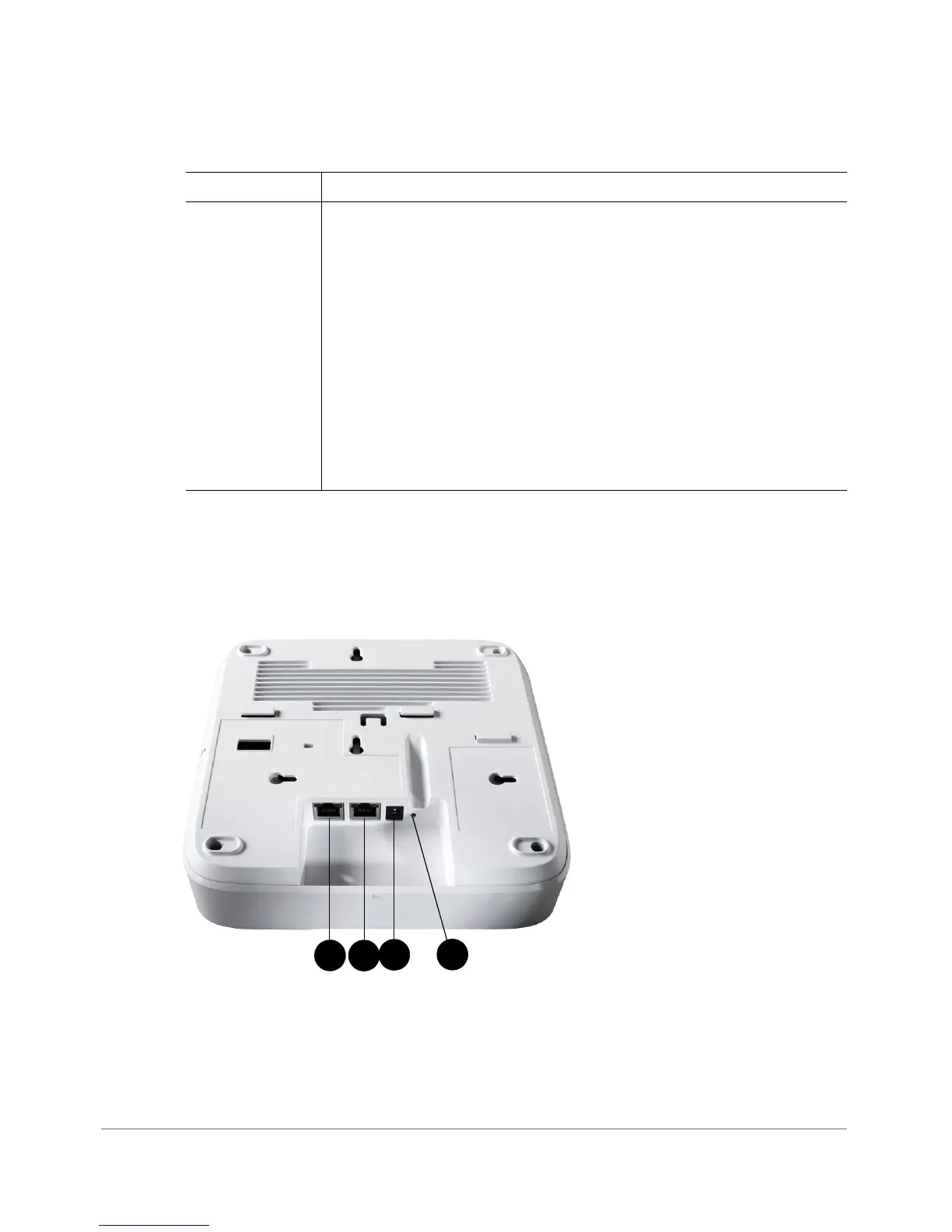

Figure 19 shows the rear panel of the 7982. For a description of each rear panel
part, refer to Ta b l e 2 0.
Figure 19. 7982 rear panel
5GHz LED • Off: The WLAN service is down.
• Amber: The WLAN is up, but no clients or downlink MAPs are
associated/connected.
• Green: The WLAN is up and at least one client is associated. No
downlink MAPs are connected.
• Slow flashing green (one flash every two seconds): The WLAN is
up and at least one downlink MAP is connected. No clients are
associated.
• Fast flashing green (two flashes every second): The WLAN is up,
at least one downlink MAP is connected, and at least one client is
associated.
Table 19. 7982 front panel elements (Continued)
LED Description
