Introducing the Ruckus Wireless AP
Getting to Know the AP Features
Ruckus Wireless Indoor AP 100.2.0 User Guide, 800-70892-001 Rev A 55
Rear Panel
The rear panel of the R300 includes one 10/100/1000 PoE Ethernet port, power
socket and reset button. See Tab le 2 7 for a description of each rear panel part.

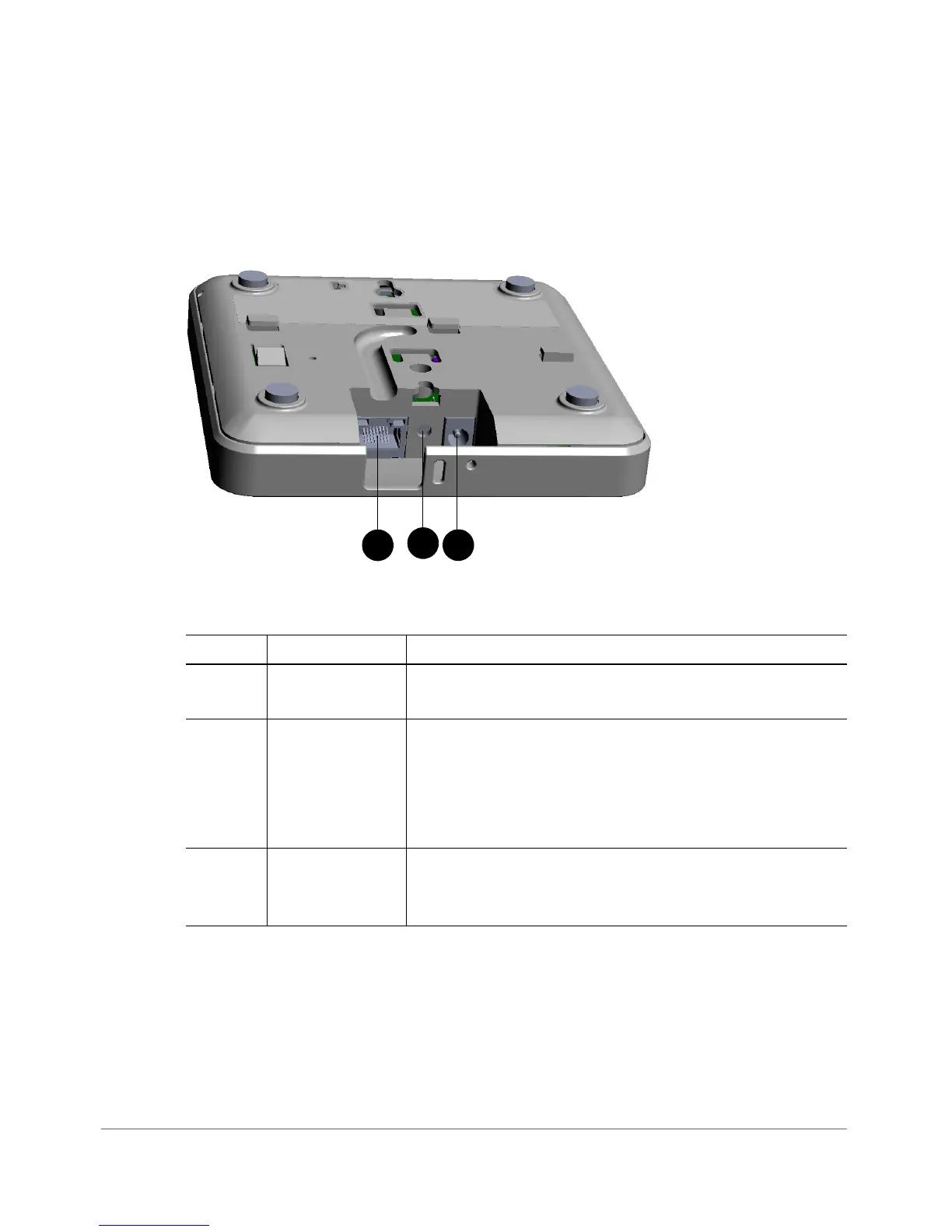

Figure 25. R300 rear panel
Table 27. R300 rear panel elements
Number Item Name Description
1 10/100/
1000+PoE Port
One RJ-45 port for a 10/100/1000 PoE (Power over
Ethernet, 802.3af) connection.
2 RST Button Pressing, and then quickly releasing this internal button
reboots the AP. Pressing and holding it for six seconds
resets the AP to factory default settings.
CAUTION! Resetting the AP to factory default settings
erases all previously configured settings.
3 Power Connect the power adapter (12 VDC/1.25A) to this
socket. Power can also be supplied via the 10/100/1000
PoE port.
