44 Programming SATEL
4.1 Objects
The objects are treated as separate alarm systems. By default, one object is created in the
control panel. New object can be created:
• using the keypad, in the service mode, by means of the NEW OBJECT function
(STRUCTURE SYSTEM OBJECTS NEW OBJECT) – having started the function, select
the object to be created (after an object is created, the LCD keypad will automatically
display the functions to allow you to assign partitions to objects and to name the objects),
• using the DLOADX program, in the “Structure” window, “System” tab, after clicking on the
system name – a new object will be created after you click on the “Add” button.

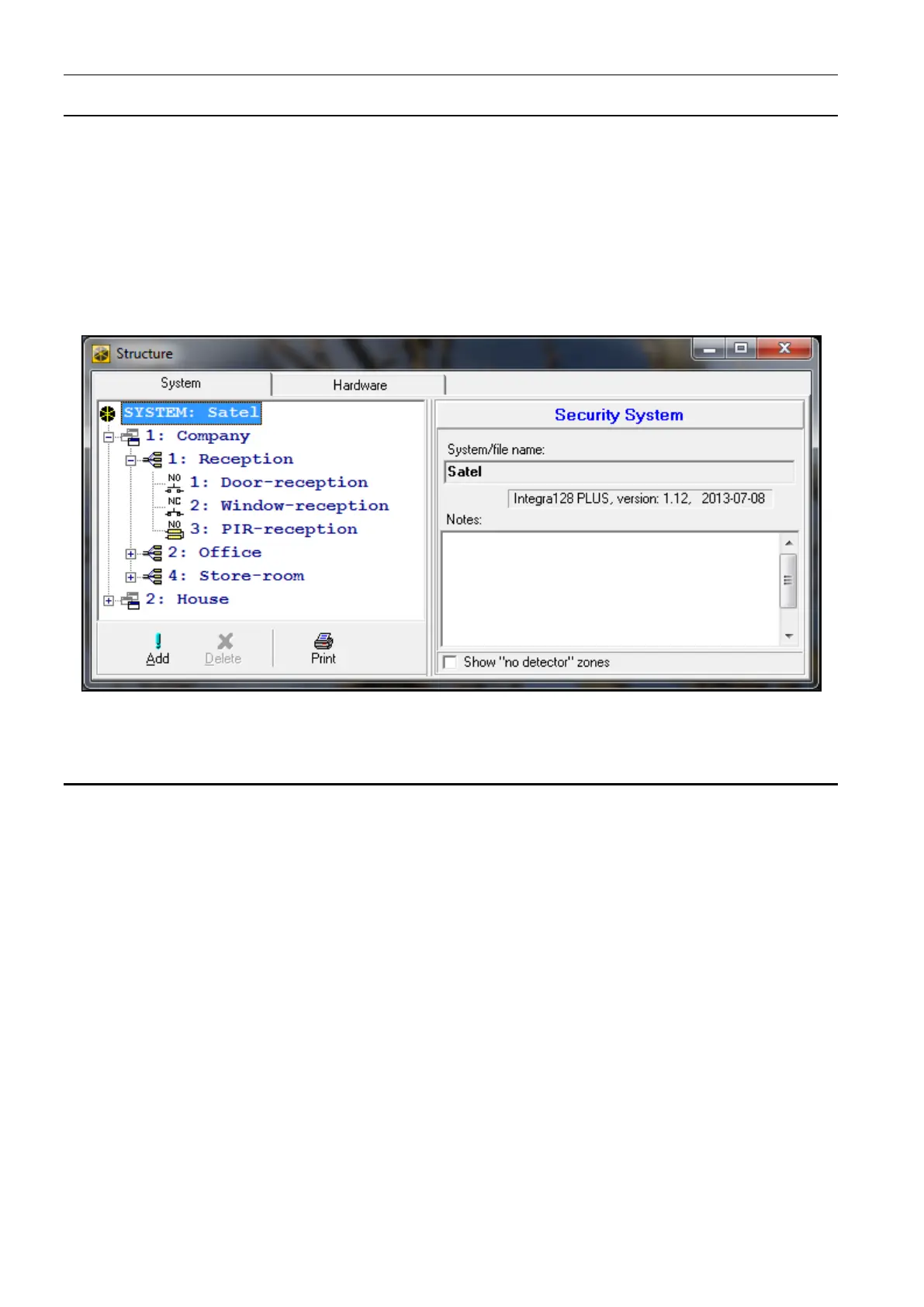

Fig. 2. Presentation of the system structure in the DLOADX program.
4.2 Partitions
The partition is a separated area within the premises protected by the security alarm system.
The subdivision into partitions enables arming/disarming the system only in part of the
protected area, as well as limiting access to some portion of the premises to selected users.
4.2.1 Creating partitions
A new partition can be created and, at the same time, assigned to an object:
• using the keypad, in the service mode, by means of the PARTITIONS function (STRUCTURE
SYSTEM OBJECTS EDIT OBJECT [select object from list] PARTITIONS) – see:
“Selection from the multiple-choice list” p. 25,
• using the DLOADX program, in the “Structure” window, “System” tab, after clicking on the
object name – a new partition will be created after you click on the “Add” button.
4.2.2 Programming partitions
You can program the partitions:
• using the keypad, in the service mode, by means of the functions available in the
PARTITIONS submenu (STRUCTURE SYSTEM PARTITIONS),
• using the DLOADX program, in the “Structure” window, “System” tab, after clicking on the
partition name.
