Section 8: Appendix
CG4 Series Service Manual Page 8-7
8.2 OPTIONAL ACCESSORIES - DISPENSER (cont’d)

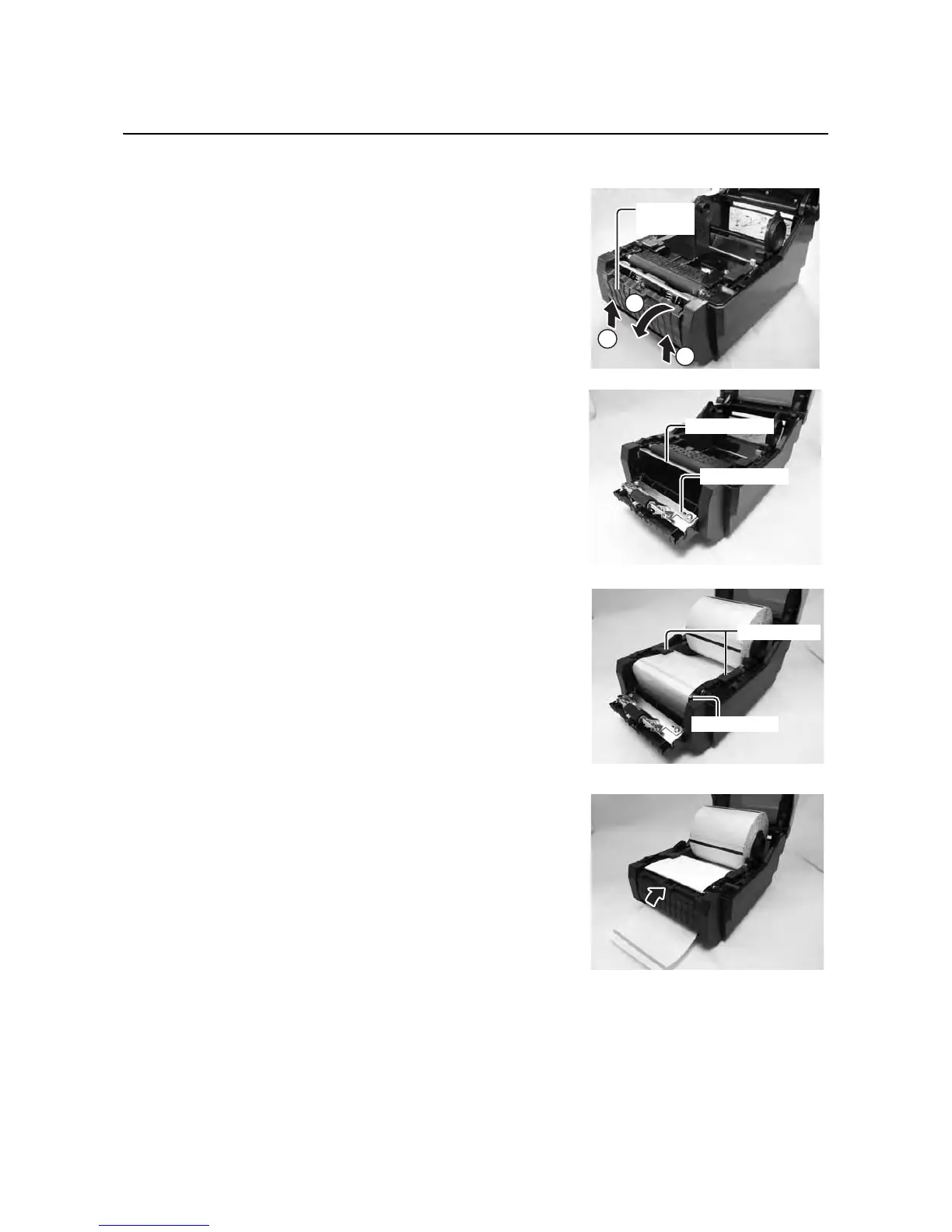

8.2.2 To route the label when the dispenser is installed
1.
With the power supply off, pull the cover open/close
latches
on both sides of the printer toward you to unlock
the top cover, and then open the
top cover. Make sure
that the cover rests firmly so that it will not fall forward
and injure your hands.
2. With your thumbs positioned on the two corners of the
pressure bracket, push the pressure bracket up and
pull it forward to open the
pressure bracket.
3. Peel off the first two leading labels from the liner (back-
ing paper) and then load the label roll on the
media
holder
.
After pulling out the leading liner (backing paper), pass
the liner (backing paper) through the
media guides and
then pass over the
dispenser bar so as to cover it. Then
pass the liner (backing paper) under the
pressure
bracket
as shown.
4. If the paper is not taut, roll the paper on the media
holder
so that the paper is taut.
Next, tightly close the
pressure bracket with the liner
(backing paper) passing through it.
To Next Page
