SATO CG4 Series Service Manual

Section 1: Introduction
Page 1-4 CG4 Series Service Manual
1.3 PARTS IDENTIFICATION (cont’d)
9
USB and RS232C interface on-board
10
USB and LAN interface on-board
USB and IEEE interface on-board
11
10
10
11
11
12
13
14

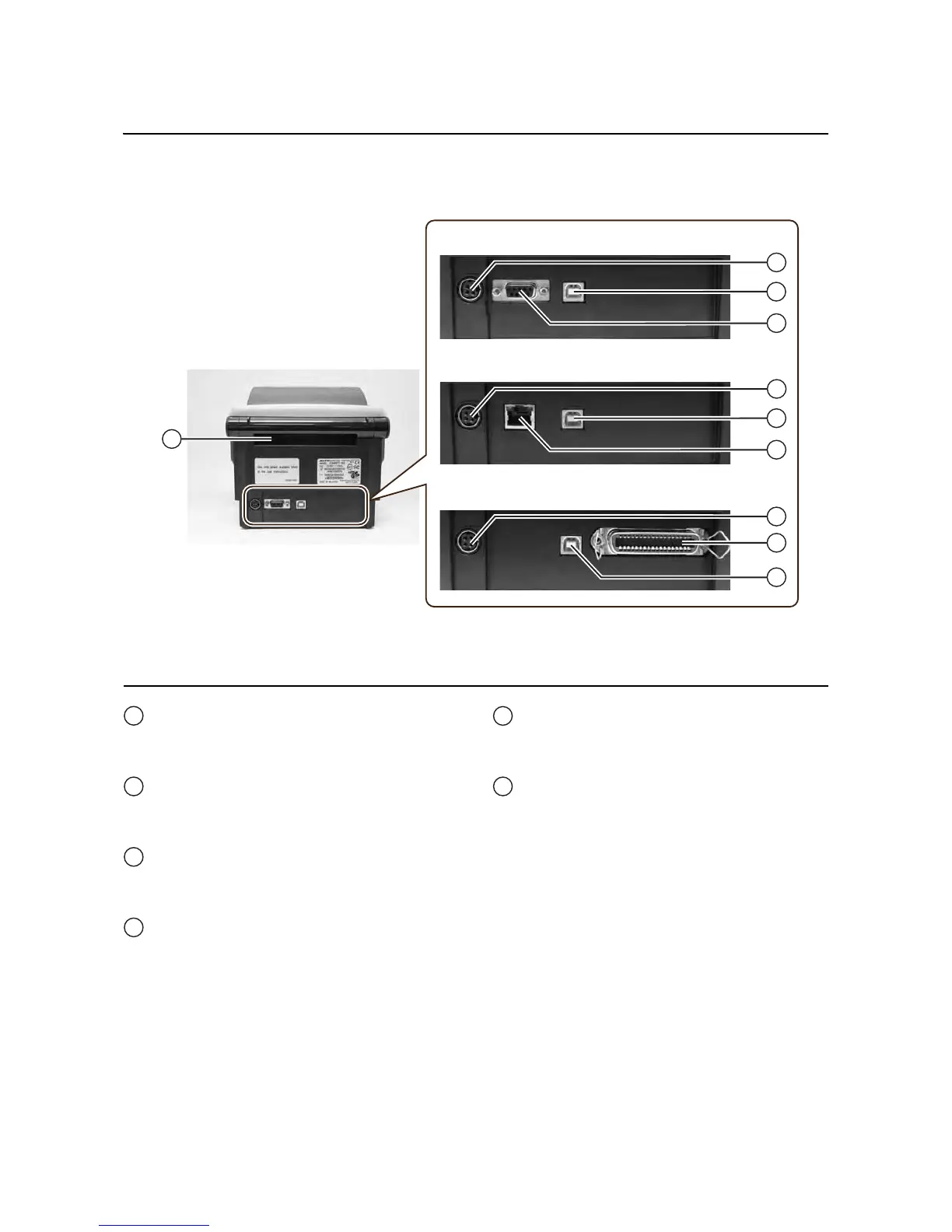

Back view
Media inlet
An opening for Fan-folded media or media
from unwinder to feed in to the printer.
DC input power terminal
Supplies power to the printer by inserting the
power cable via the AC adapter.
USB interface terminal
To connect printer to the host computer using
the USB interface.
RS-232C interface terminal
To connect printer to the host computer using
RS-232C interface.
Or, to connect the optional Keypad, Scanner or
Smart keyboard to the printer.
LAN interface terminal
To connect printer to the host computer using
LAN interface.
IEEE interface terminal
To connect printer to the host computer using
IEEE interface.
9
10
11
12
13
14
