SATO CG4 Series Service Manual

Section 1: Introduction
CG4 Series Service Manual Page 1-5
1.2 PARTS IDENTIFICATION (cont’d)
CG408DT/ CG412DTCG408TT/ CG412TT
15
20
16
17
18
19
21
22
15
18
20
19
21
22

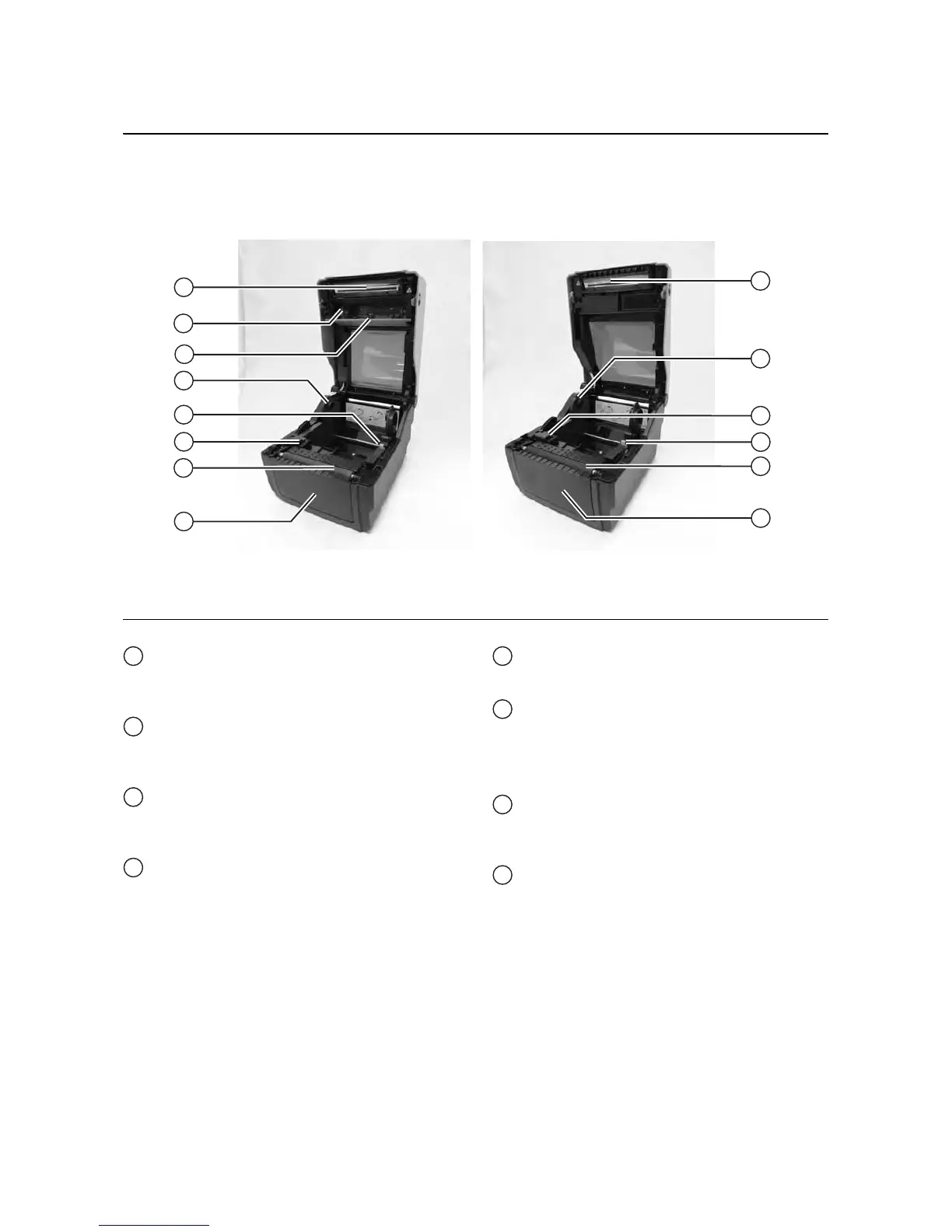

Internal view when Top cover is opened
Print head
This component is used to print on the media.
Perform maintenance at regular intervals.
Ribbon unit
Used to load the ribbon and wind up the used
ribbon.
Pull out lever
This is used to pull out the ribbon unit from the
top cover for ribbon loading.
Roll media holder
To hold the roll media.
Media guide slide lever
Set to meet the size of the media used.
Media guide and I-Mark/ Gap sensor
A guide for the media to feed properly.
Detects the I-Mark on the media or gap of the
label.
Platen roller
This roller feeds the media. Perform
maintenance at regular intervals.
Optional device compartment
Used to install optional cutter, dispenser or
linerless (Non sepa) unit.
15
16
17
18
19
20
21
22
