WARNING!
Do not lean over the engine when
removing the rocker arm shaft. The unit
injector spring is pre-tensioned and can
come loose, causing personal injury.
Note: If the spring comes loose from the unit
injector, the unit injector must be renewed.

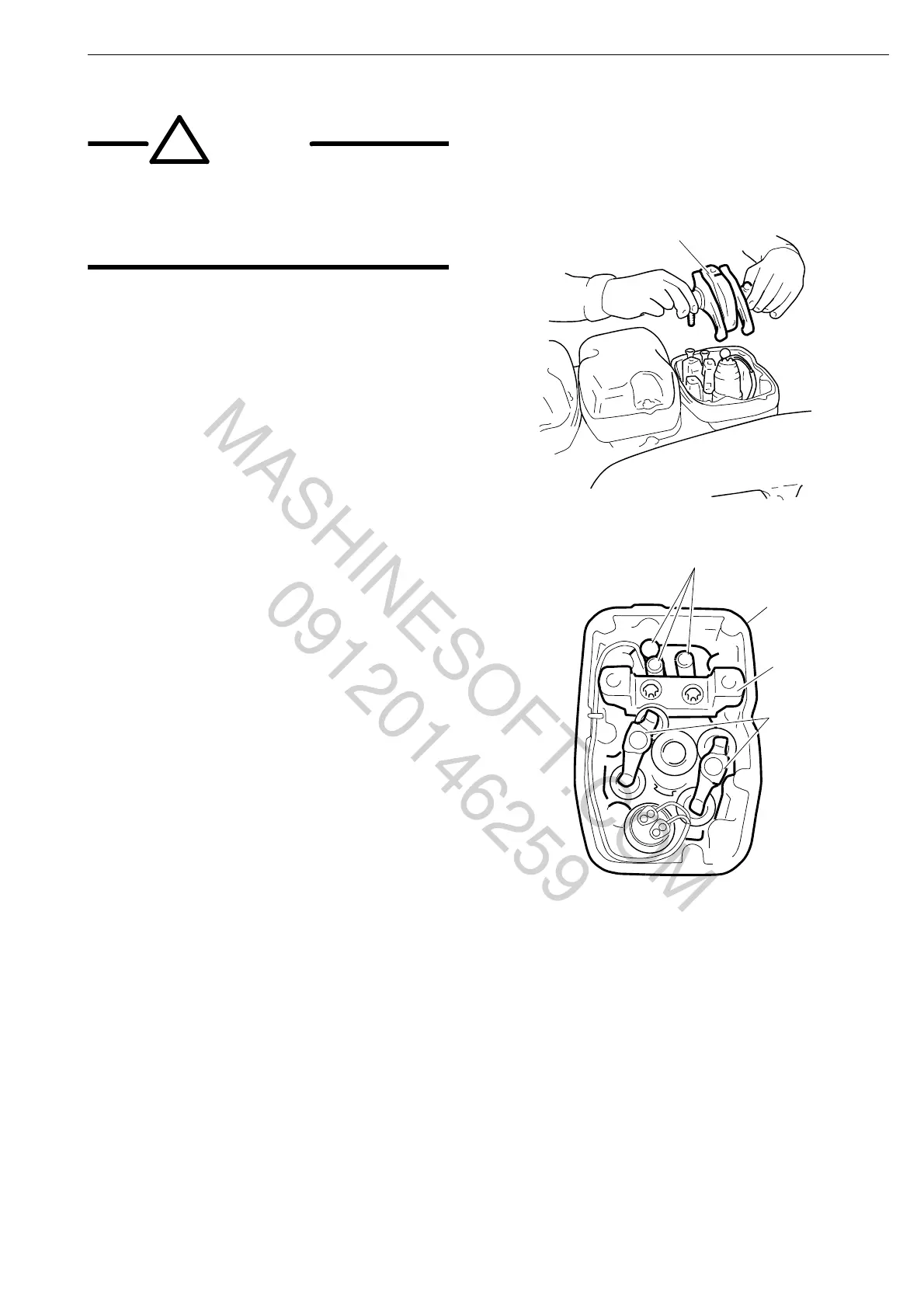

5 Remove the rocker arm shaft.
120519
5
6 Remove the bearing bracket.
7 Remove the pushrods.
Note: The pushrod for the unit injector is
secured with a retaining ring. Jiggle and pull
carefully on the pushrod to loosen it.
8 Remove the valve bridges.
9 Remove the lower rocker cover.
120514
9
6
8
7
10 Remove the unit injector according to the
section Removing the unit injector, steps
6-10 in booklet 03:04-01.
11 Detach the intake manifold, fuel manifold,
cooling system bleed pipe and the exhaust
manifold.
12 Remove the cylinder head. Mark the
cylinder heads if more than one is being
removed at the same time.
