In the LINE CONVERGENCE adjustment, the adjustment point of the column line (vertical) or
row line (horizontal) is comprehensively moved for color matching. It is convenient to utilize
this adjustment when the color of the column line or row line is uniformly deviated.

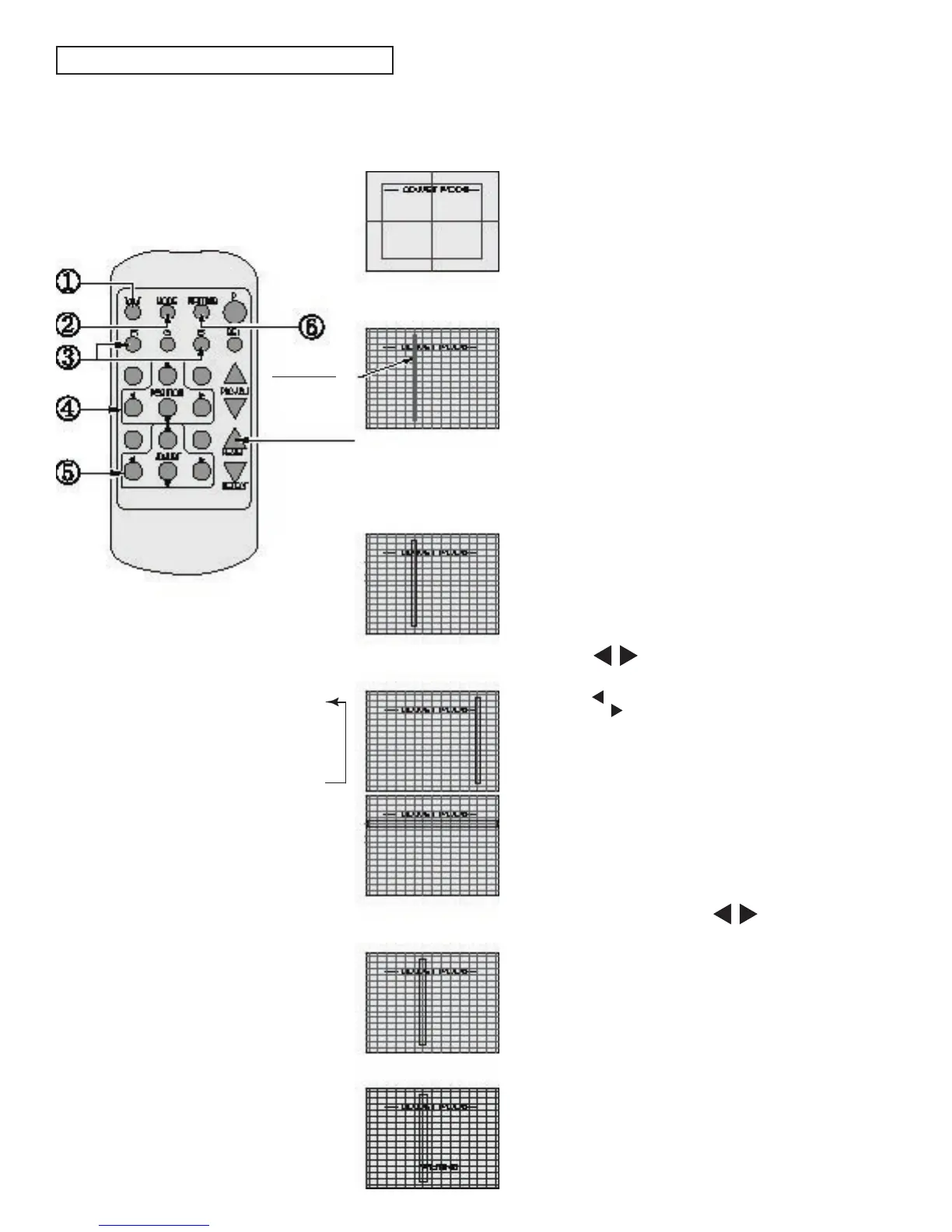

The screen changes to ADJUST MODE from the
Game Board mode and displays the green test
pattern.
(1) Keep pressing the TEST button for approximately 3
(2) Press the MODE button once to have the POINT
ADJUSTMENT mode.
(Note 1)
The crosshatch test pattern appears and the
vertically long MARKER is shown.
The selected color is displayed by superimposing on
green. The MARKER will be in the color selected.
(4) By using the
▲▼
POSITION buttons, move the
MARKER to the position to be adjusted.
Use the buttons to select the column line, and
the MARKER moves in the right/left direction.
However, the movable range is predetermined.
Use the ▲ ▼ buttons to select the row line and
the MARKER moves in the up/down direction.
However, the movable range is predetermined.
(5) Make adjustment by using the
▲▼
ADJUST
buttons.
The selected column line or row line
(shown left is the column line) can be
moved in the desired up/down or right/left
directions as applicable.
(6) Press the WRITING button (for storing and finish).
WRITING is displayed and the adjustment data is
stored. After the data is stored, the Game Board
screen returns.
(3) Using either R or B button, select the desired color to
be adjusted.
(Note 2)
Although the green color can also be
selected by using the G button, to avoid the screen size
change adjustment, do not choose green.
DO NOT PUSH.
MARKER
LINE CONVERGENCE ADJUSTMENT
(Note 1) When the MODE button
is repeatedly pressed, the
adjustment modes will circulate
as follows:
STATIC ADJUSTMENT MODE
    ↓
LINE ADJUSTMENT MODE
    ↓
POINT ADJUSTMENT MODE
(Note 2) When either of the COLOR
SELECT buttons (R, B) is
pressed, if the desired color to
be adjusted disappears, press
that particular button again.
