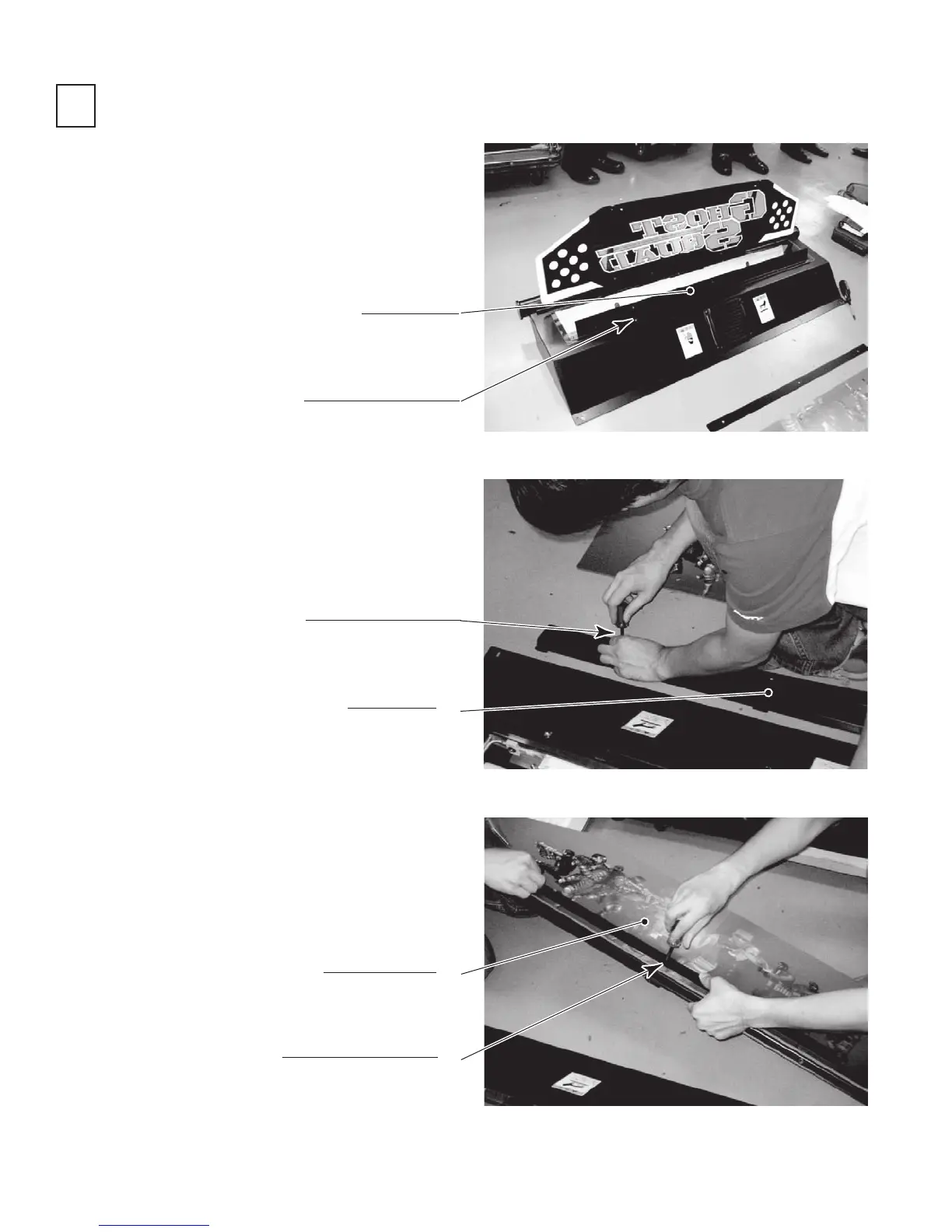

ASSEMBLING THE BILLBOARD

● Undo the 2 truss screws, and remove the

pop bracket.

● Attach the billboard pop by ﬁtting it be-

tween the pop bracket and pop holder, and

ﬁxing it in place with the 3 truss screws.

● Undo the 3 truss screws, and remove the

pop holder.

PHOTO 6. 1 a

PHOTO 6. 1 c

PHOTO 6. 1 b

TRUSS SCREW (2), black

M4×8

POP BRACKET

BILLBOARD POP

TRUSS SCREW (3), black

M4×8

POP HOLDER

TRUSS SCREW (3), black

M4×8
