64
www.sauservice.com

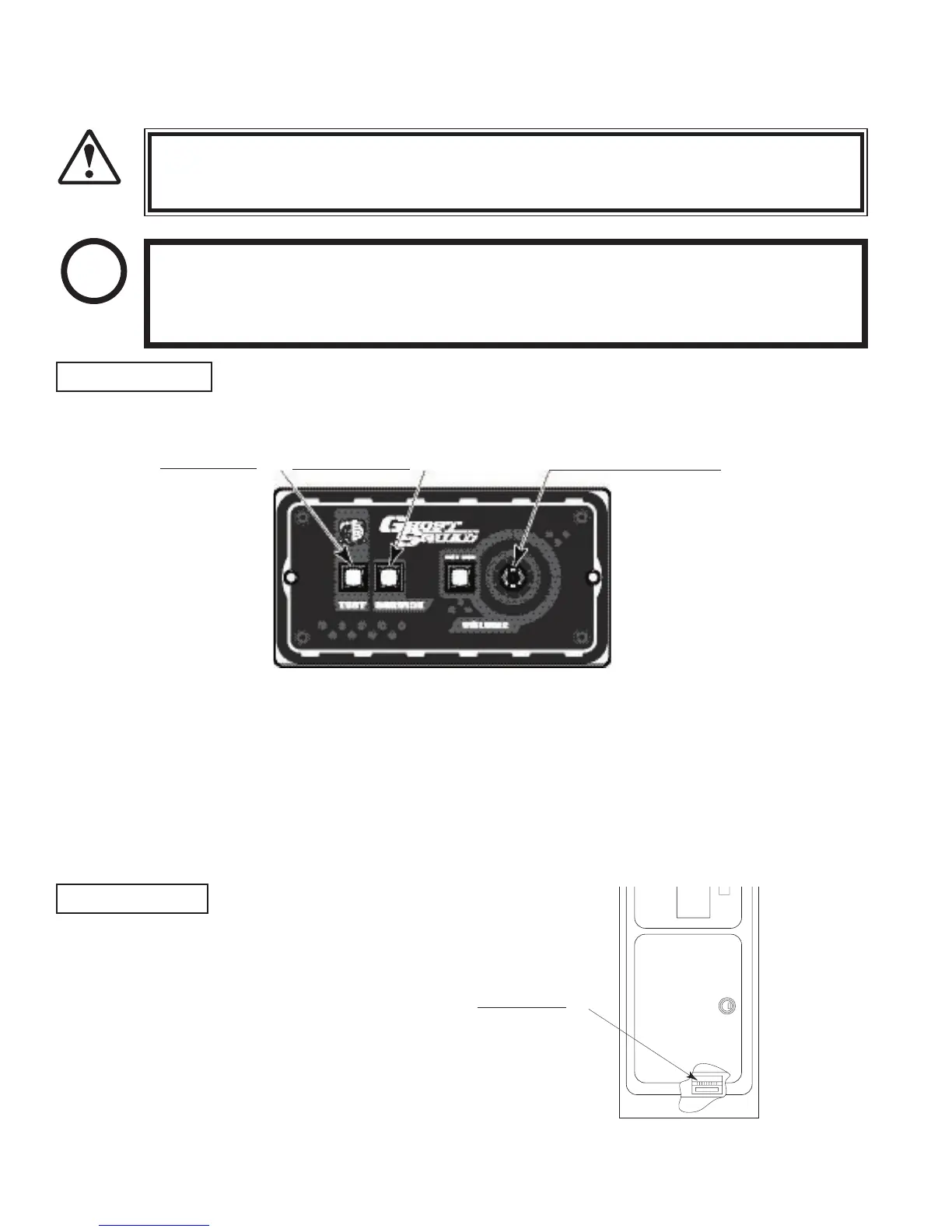

9-1 SWITCH UNIT AND COIN METER
FIG. 9. 1 b
FIG. 9. 1 a SWITCH UNIT
Never touch places other than those specified. Touching places not specified can cause
electric shock and short circuit accidents.
● Adjust the sound to the optimum volume, taking into consideration the
environmental requirements of the installation location.
● Removing the Coin Meter circuitry renders the game inoperable.
Open the coin chute door, and the switch unit shown will appear.
The functioning of each SW is as follows:
SWITCH UNIT
● SOUND VOLUME SWITCH: Adjusts sound volume for all of the machines' Speakers.
(SOUND VOLUME)
● SERVICE BUTTON: Gives credits without registering on the coin meter.
(SERVICE)
● TEST BUTTON: For the handling of the test button, refer to the following pages.
(TEST)
Open the Cashbox Door by using the key to have
the Coin Meter appear underneath the Cashbox.
COIN METER
COIN METER
SOUND VOLUME SWITCH
TEST BUTTON
SERVICE BUTTON
STOP
IMPORTANT!
WARNING!
To Next Page
