171

www.sauservice.com

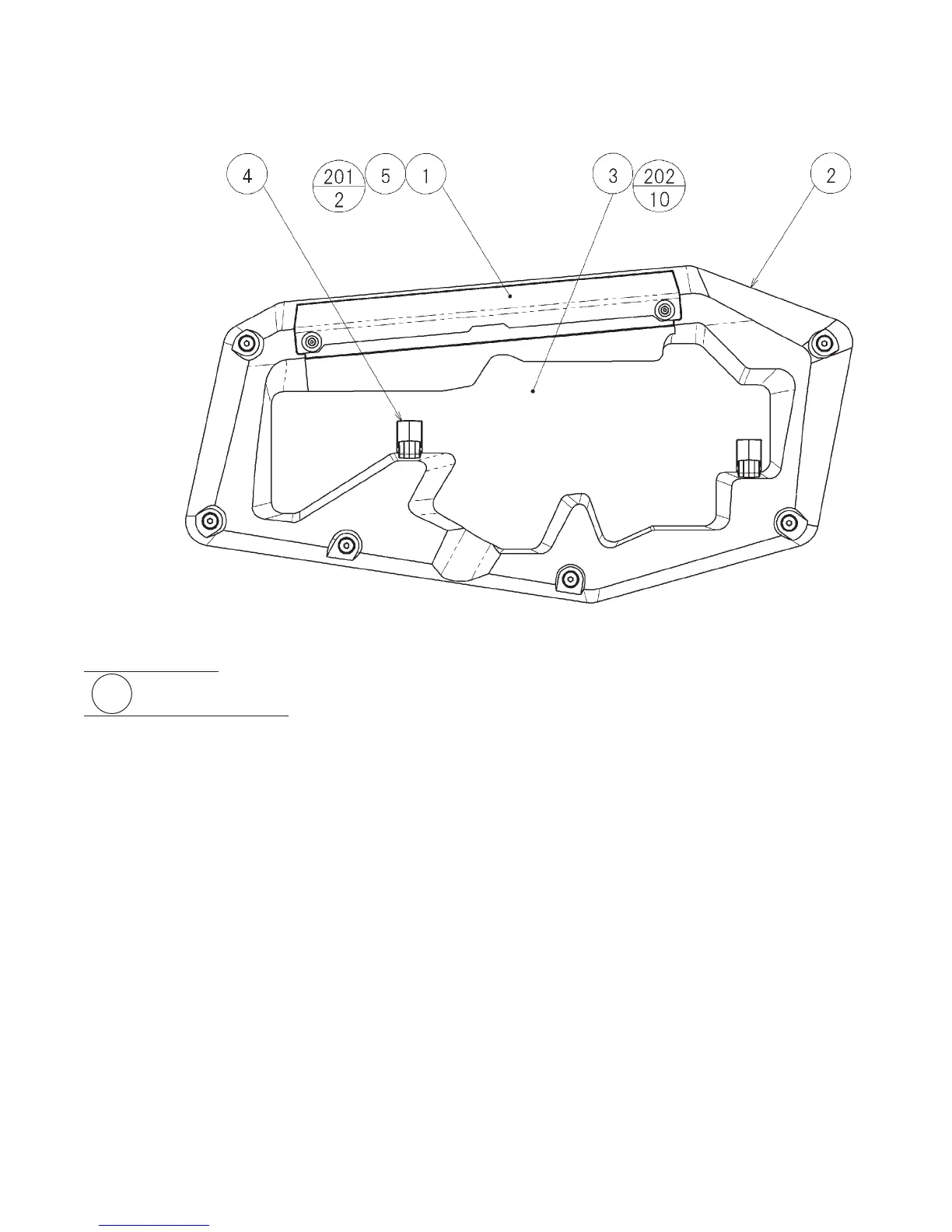

ITEM NO. PART NO. DESCRIPTION NOTE

1 CTF-1340 ASSY HOLDER LIGHT

2 CTF-1321 CONTROLLER HOLDER R

3 CTF-1322 CONTROLLER HOLDER PLATE R

4 CTF-1303 CONTROLLER HOOK

5 CTF-1002 WASHER CTF

201 FAS-290037 HEX SKT LH CAP SCR SCR STN M5X20

202 FAS-120031 TAP SCR P-TITE TH BLK 4X16

ASSY CONTROLLER HOLDER (CTF-1320)

Fastening Torque:

: 1.4N•m(14kgf•cm)

201

Table of Contents4
Specifications5
Introduction of the Owners Manual5
Handling Precautions8
Precautions Concerning Installation Location10
- Operation Area11
- Electric Current Consumption11
Operation12
Name of Parts16
Accessories17
- How to Use the Chihiro Board Carton Box18
- Instructions18
- How to Use the Carton Box (Gd-Rom Drive)22
Assembly and Installation23
- Assembling the Billboard25
- Assembling the Ptv27
- Assembling the Cabinet29
- Securing in Place (Adjuster Tuning)33
- Attaching the Fluorescent Lights and Lamps34
- Fluorescent Light34
- Halogen Lamp35
- Installing the Gd-Rom Drive (Setting the Gd-Rom Disc)36
- Power Supply and Earth Connection42
- Turning the Power on44
- Assembly Check45
- Memory Test45
- C.r.t. Test46
- Input Test46
- Output Test47
- Gun Adjustment47
- Interference Prevention Wiring48
Precautions When Moving the Machine50
Cautions When Transporting the Machine52
Game Description53
- Game Outline54
- Game Controls54
- Characters55
- Alpha Unit55
- Fellow M.O.P. Members55
- Game Flow and On-Screen Display56
- Card Insertion Screen56
- Player Information Display Screen56
- Customize Screen57
- Name Entry Screen58
- Gun Controller Explanation Screen59
- Gun Controller Calibration Screen59
- Mission Select Screen60
- In-Game Display61
- Mission Results Screen62
- Game Results62
- Game Rules and Gameplay63
- Life63
- Continue and Game over63
- GS Meter63
- E-Marker64
- Tactic Selection64
- Events (Special Operations)65
- Auxiliary Items66
- Experience Points66
- Rank and Promotion66
- Costumes67
- Weapons67
- MID-Game Entry68
- MID-Game Termination68
- Card Recovery69
- Number of Uses69
- IC Cards69
Explanation of Test and Data Display70
- Switch Unit and Coin Meter71
- System Test Mode72
- System Test Menu Mode72
- Media Board Test73
- System Information74
- Jvs Test75
- INPUT TEST Screen76
- Sound Test77
- SIZE CHECK Screen78
- F. C.r.t. Test78
- COLOUR CHECK Screen78
- Coin Assignments79
- Common79
- Individual79
- DETAIL SETTING Screen80
- Coin Chute Multiplier80
- Bonus Adder80
- Coin to Credit80
- Game Cost Setting81
- Clock Setting82
- Network Setting83
- Ip Address (C)83
- Subnet Mask (C)83
- Gate Way (C)83
- Network Setting (Media)84
- Game Test Mode85
- Game Assignments88
- Card Read/Write Test91
- Close Setting92
- Bookkeeping93
- Backup Data Clear95
Control Unit (Gun Controller)96
- Replacing the Microswitch97
- Replacing the Sensor Unit101
- Replacing the Solenoid101
- IC Card Unit103
- How to Clean the IC Card Unit103
- Fixing Jammed Cards109
- Cleaning the Screen110
Projector110
- Remote Control Buttons111
- Setting the Interface111
- Projector Adjustment111
- Automatic Color Matching112
- Adjusting the On-Screen Contrast113
- Adjusting the Screen Brightness114
- Adjusting the On-Screen Display Position115
- Adjusting the Screen Size116
- Convergence Adjustment117
- Manual Color Matching117
- Static Convergence Adjustment118
- Line Convergence Adjustment119
- Coin Insertion Test120
- Handling the Coin Jam120
- Cleaning the Coin Selector120
Coin Selector120
Billboard Internal Fluorescent Light121
Replacing the Fluorescent Lights and Lamps121
- Instruction Panel Internal Fluorescent Light123
- Periodic Inspection Table125
Periodic Inspection125
- Cleaning the Cabinet Surfaces126
- Circuit Protector127
- Problems Not Involving the Game Board127
Troubleshooting127
- Replacing the Led Bd129
- Replacing the Fuse130
- Error Codes132
- Removing the Game Board136
Game Board136
- Removing the Gd-Rom Drive140
- Composition of the Game Board141
- Assy Case Box Ctf Exp(843-0012D-02)141
- Dip Sw Setting141
- Replacing the Main Board Battery142
- Replacing the Media Board Battery Pack143
Design Related Parts146
Wire Color Code Table147
- Top Assy Ctf DX148
- Assy Ptv (Ctf-0500)150
- Ptv W/Sticker Ctf (Ctf-0510)152
- Assy Billboard DX (Ctf-0500)153
- Assy Front Panel (Ctf-0600)155
- Assy Ptv Base (Ctf-0650)156
- Assy Sub Ptv Base (Ctf-0660)157
- Assy Sub Ptv Base (Ctf-0670)159
- Assy Mask (Spy-0530)161
- Assy Cabinet DX (Ctf-1000)162
- Assy Sub Cabi DX (Ctf-1100)167
- Sw Unit (Ctf-1160)168
- Assy Latch (Ctf-1170)169
- Fan Unit (Str-1070)171
- Meter Unit Single Yl (610-0549-03)172
- IC Rw Unit (Ctf-1150)174
- Assy Speaker Pipe (Ctf-1200)176
- Assy Controller Holder (Ctf-1300)177
- Assy Controller Holder (Ctf-1320)178
- Assy Holder Light (Ctf-1340)179
- Assy Control Panel (Ctf-2000)181
- Control Unit (Ctf-2100)182
- Sensor Unit (Jpt-2030)184
- Assy Main Bd (Ctf-4200)185
- Assy Elec (Ctf-4100)186
- Assy Xfmr 100V Area (Ctf-4200)188
- Assy Xfmr 200V Area (Ctf-4300)189
- Wire Color Code Table191
