174

www.sauservice.com

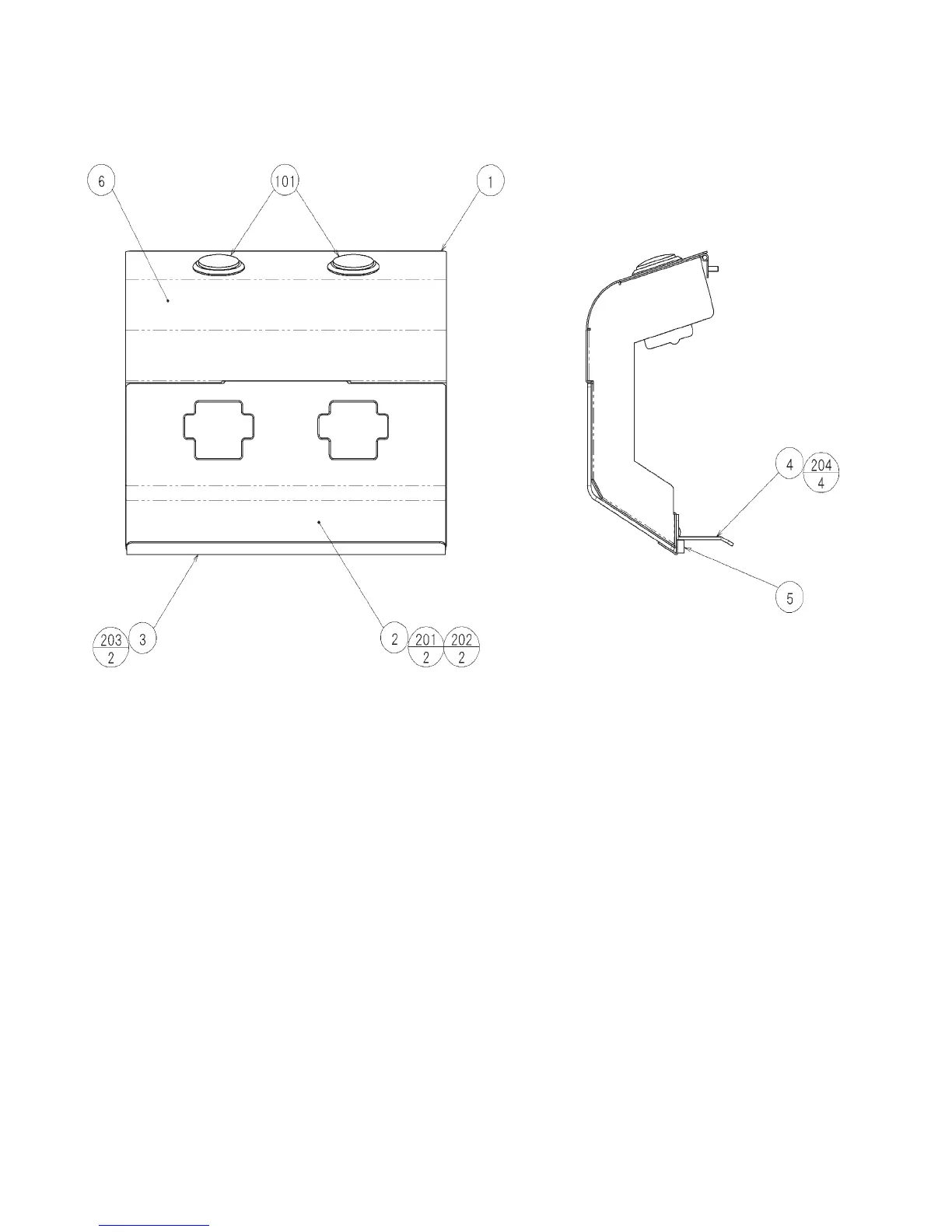

ASSY CONTROL PANEL (CTF-2000)

ITEM NO. PART NO. DESCRIPTION NOTE

1 CTF-2001 CONTROL PANEL BASE

2 CTF-2002X CARD ENTRY PLATE

3 CTF-2003 ENTRY PLATE SASH

4 CTF-2004X LOCK BRKT

5 CTF-2005 CUSHION SPONGE CONT PNL

6 CTF-2006-01 STICKER CONTROL PANEL ENG

101 509-6069 SW PB OBSA-45UM-G-1FLED-G-5V

102 280-5009-01 CORD CLAMP 21

201 050-F00400 FLG NUT M4

202 068-441616 FLT WSHR 4.4-16X1.6

203 000-T00408-0B M SCR TH BLK M4X8

204 000-F00408 M SCR FH M4X8

301 CTF-60031 WH START SW
