D-SUB CONNECTOR
CONNECTOR (1)
CONNECTOR (3)
USB CONNECTOR
PHOTO 17. 1 b
PHOTO 17. 1 c
PHOTO 17. 1 d

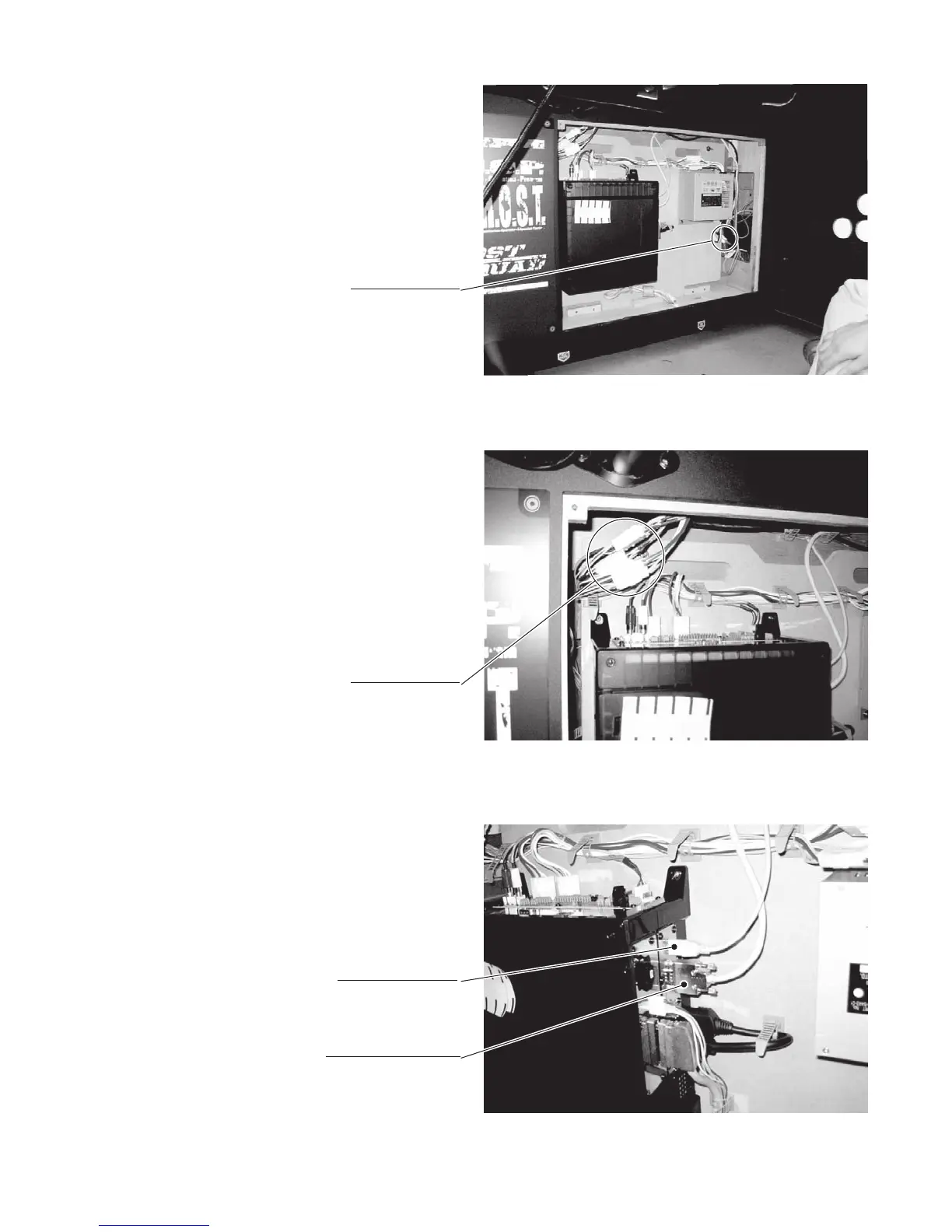

● Disconnect the single connector that
connects the wires in the cabinet to the
ASSY MAIN BD in the main cabinet.
● Unplug the 3 connectors.
● Unscrew and remove the screws that fix
the left and right sides of the D-SUB
connector that connects to the side of the
Chihiro board.
