● Unplug the AVIP Cable connected to the
Chihiro Board.
Because the AVIP Cable is packed with
it when the Chihiro Board is transported,
unfasten the cord clamp that fastens the
cable and remove it.
● Unplug all connectors connected to the
Chihiro Board. Unplug the GD Cable
connector on the side of the Media Board
on the upper part of the Chihiro Board.

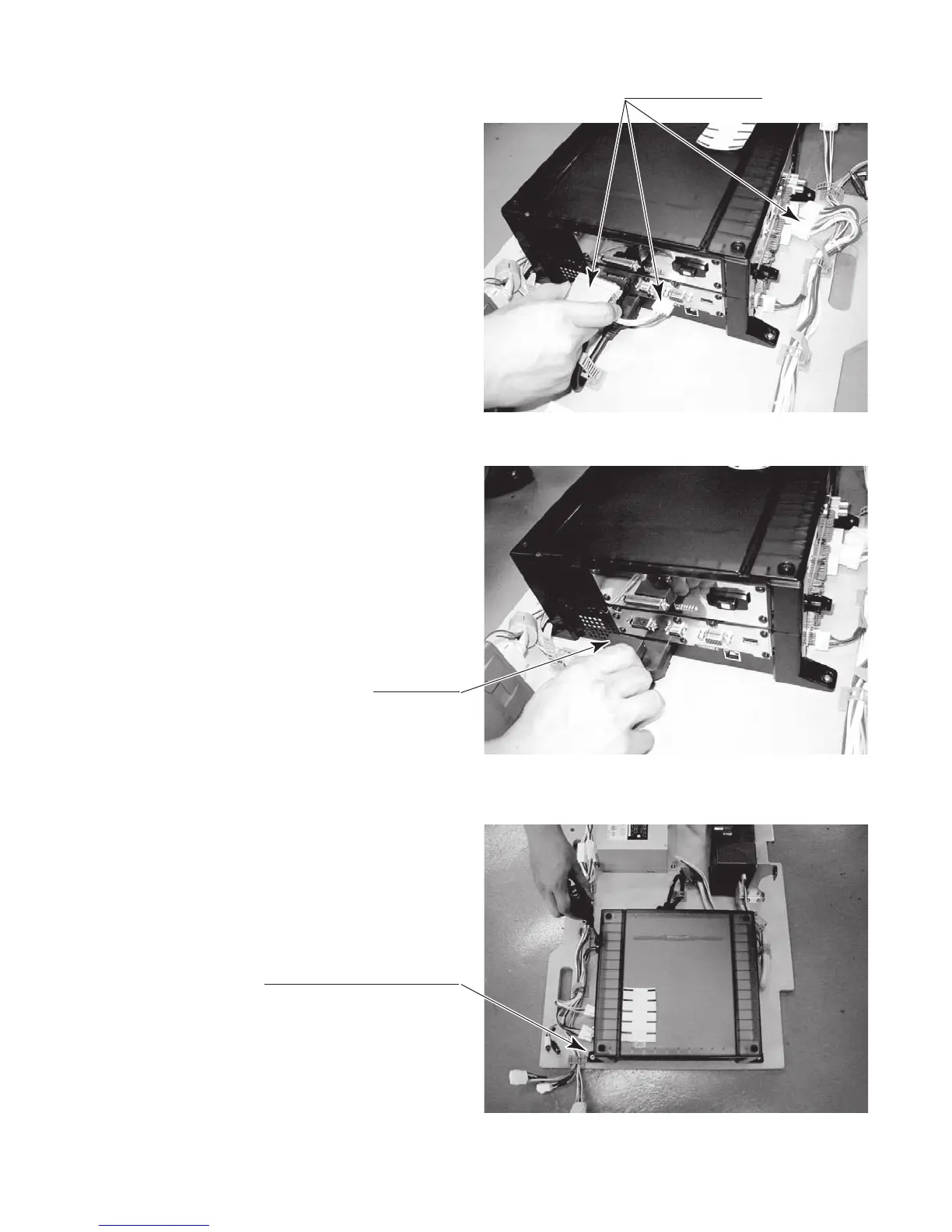

PHOTO 17. 1 g
PHOTO 17. 1 h
Unplug all connectors.
AVIP CABLE
PHOTO 17. 1 i
● Remove the 4 screws and remove the
Chihiro Board from the Base.
SCREW (4) t
M4×16, w/flat & spring washers
