14. Device description
14.1. Description of the commeo Multi Send – BASIS version
1
3
11
6
2
10
5
4
12
13
14
7
8
9

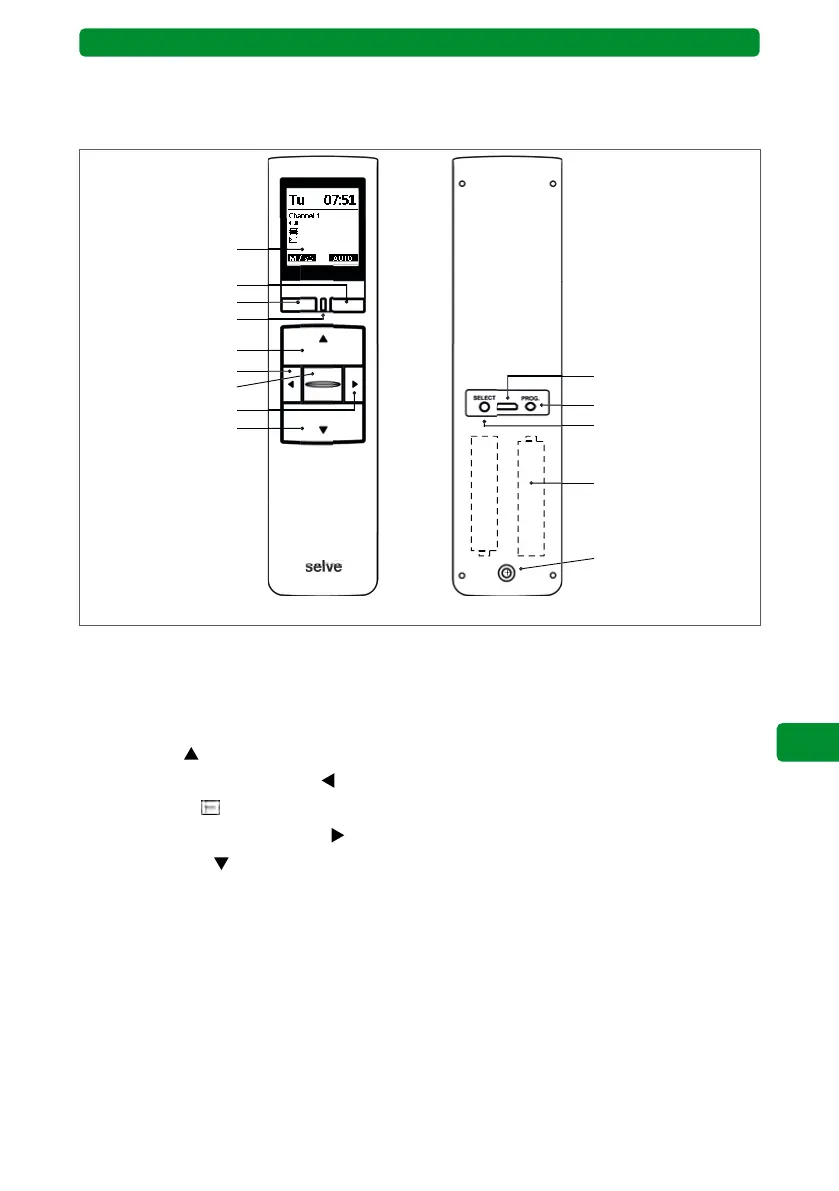

Front side Rear side
1 Display
2 Display button right
3 Display button left
4 Status LED
5 UP button
6 Left channel selection button
7 STOP button
8 Right channel selection button
9 DOWN button
10 Micro-USB port
11 Programming button/PROG.
12 Select button/SELECT
13 2 x AAA batteries (inside)
14 Retention screw for battery compartment
