Detailed Monitoring
The Detailed Monitoring pop-up is activated by clicking a stream line in the monitoring list.
The Probe is continuously gathering detailed information for the selected multicast. The VB220 will
continue updating the detailed information for the selected multicast until another is selected. Clicking
the Clear button will clear all information about the selected stream, including PSI/SI analysis data.
The

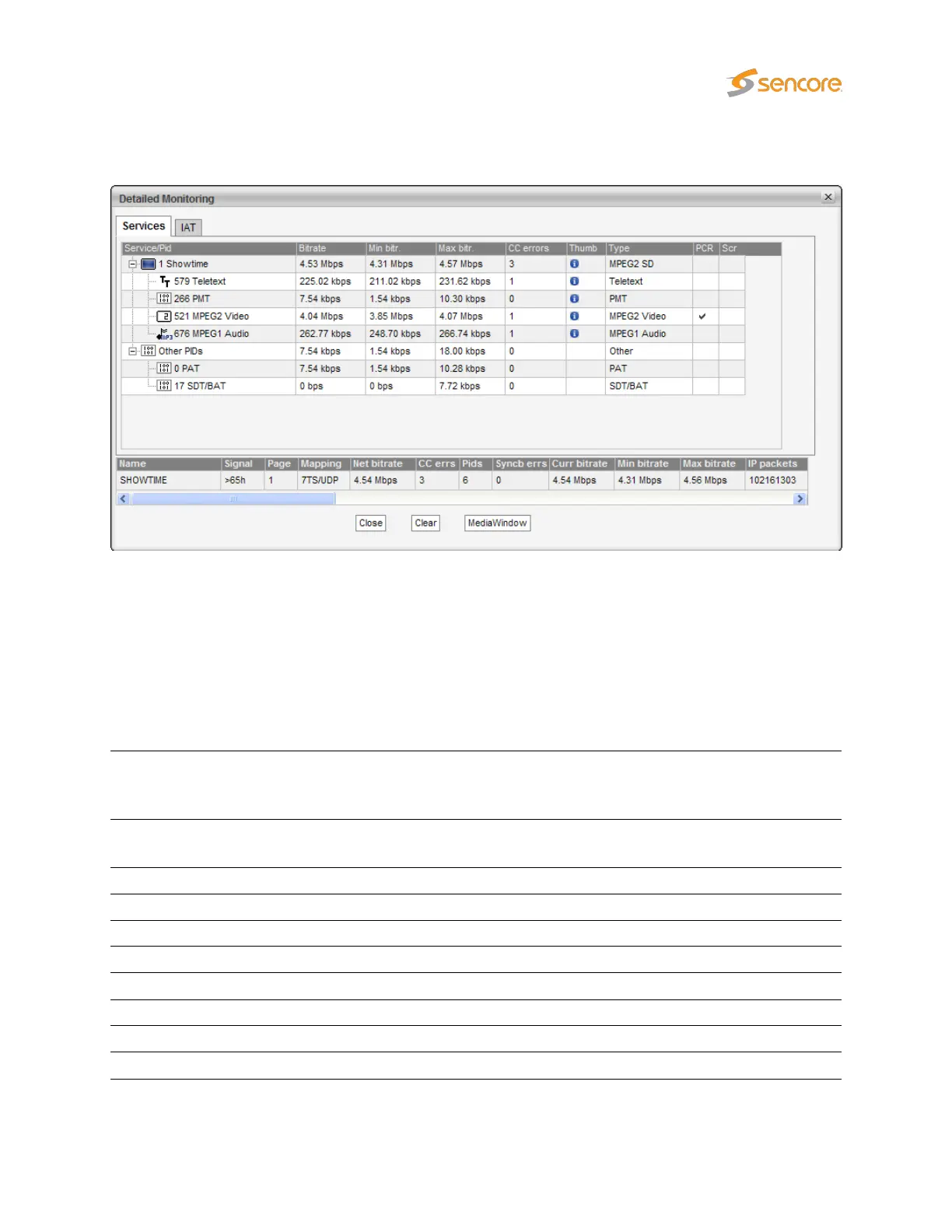

Detailed Monitoring — Services
view lists detected MPEG-2 TS services (by analyzing the PSI/SI
tables) or SMPTE 2022-6 SDI over IP components, providing the following aggregate information for
each service:
Service/Pid:
For each service, the service-name or service-id is obtained from the PSI/SI
tables. PIDs that do not belong to a service are denoted ‘Other PIDs’. The
service ID is presented in square brackets.
Service/Component:
This replaces the “Service/Pid” column for SMPTE 2022-6 SDI over IP
streams, displaying the identified components.
Bitrate: Service or component bitrate in bits per second
Min bitr.: Minimum service or component bitrate in bits per second
Max bitr.: Maximum service or component bitrate in bits per second
CC errors: Number of Continuity Counter occurrences
Thumb: Click the
i
icon to access the Thumb pop-up view, explained below
Type: The list entry service type or PID type
PCR: This field will be checked if the corresponding PID carries PCR
Scr: This field will be checked if the corresponding PID is scrambled
VB2xx GigE User’s Manual version 5.4 85
