SEW-Eurodrive MOVIMOT advanced DRN DBC Series User Manual

5
Electrical installation
Plug connectors
Operating Instructions – MOVIMOT
®
advanced
59
5.9.4 Plug connector positions of the MOVIMOT
®
advanced DBC drive unit

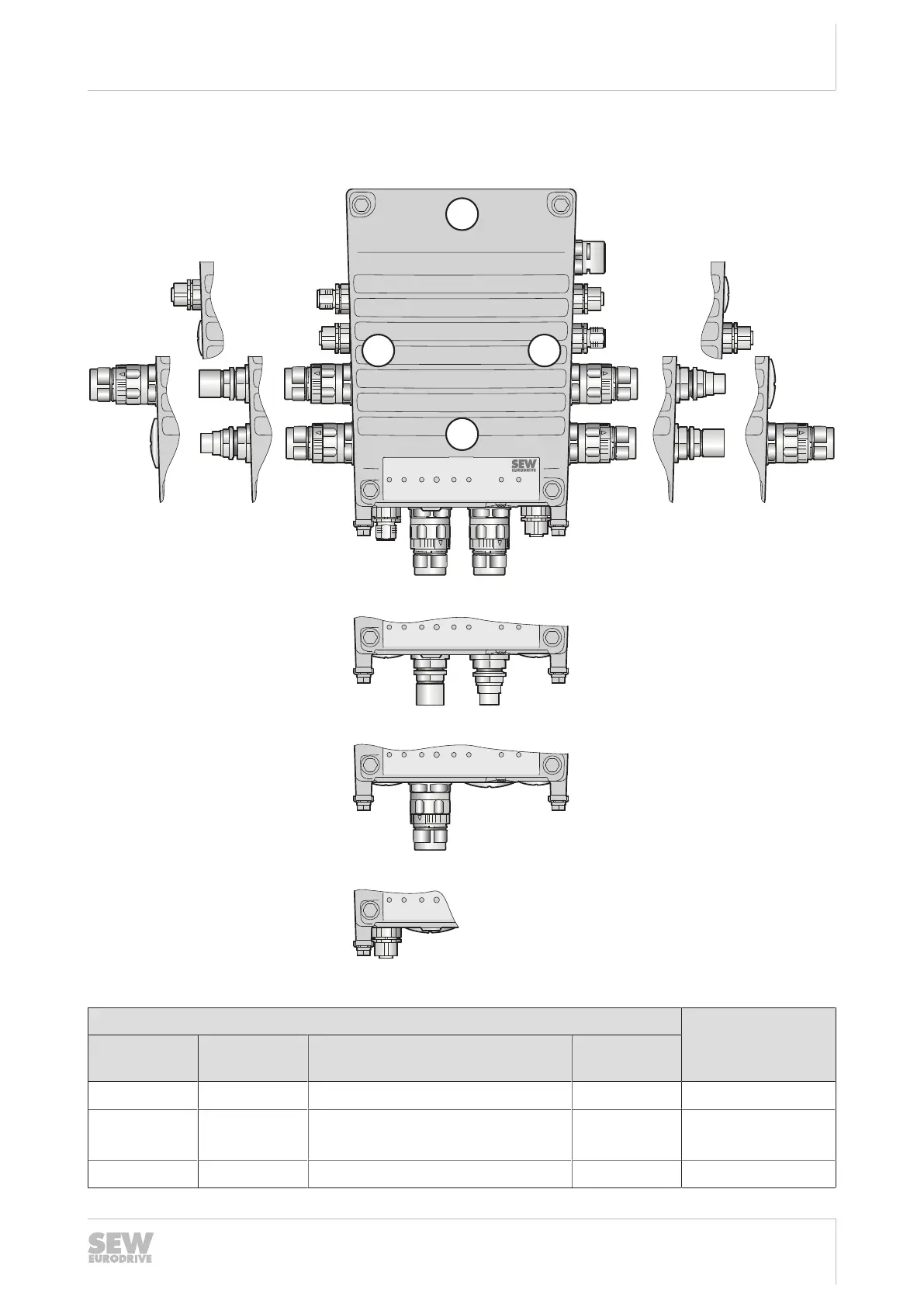

The following figure shows possible plug connector positions:
X2242
X4142
X 2
3
1
X1203_1
X5136
X1206
X2242
X1203_1
X1203_1
X5505 X5504
X5136
X1203_2
X5504
X5505
X4142
X4142
X5505
X5504
X1203_2
X1203_2 X5136
X1206
X2242
[1]
X1206
32288509835
Plug connectors Not together at a
position with the
plug connector:
Designation Coding ring/
color
Function Position
X1203_1 Black AC400V connection
1)
X, 2 or 3
• X1206
X1203_2 Black AC400V connection X, 2 or 3
• X2242
• X5136
X1206 - AC400V connection (IN)
2)
X, 2 or 3
• X1203_1
25891936/EN – 05/2020
