Drive units with optional ASEPTIC / ASEPTICplus design
Mechanical Installation
4.7.2 Tightening torques when using optional ASEPTIC
plus
design
Blanking plugs Tighten the blanking plugs optionally
included in the delivery by SEW-EURODRIVE
with 2.5 Nm:

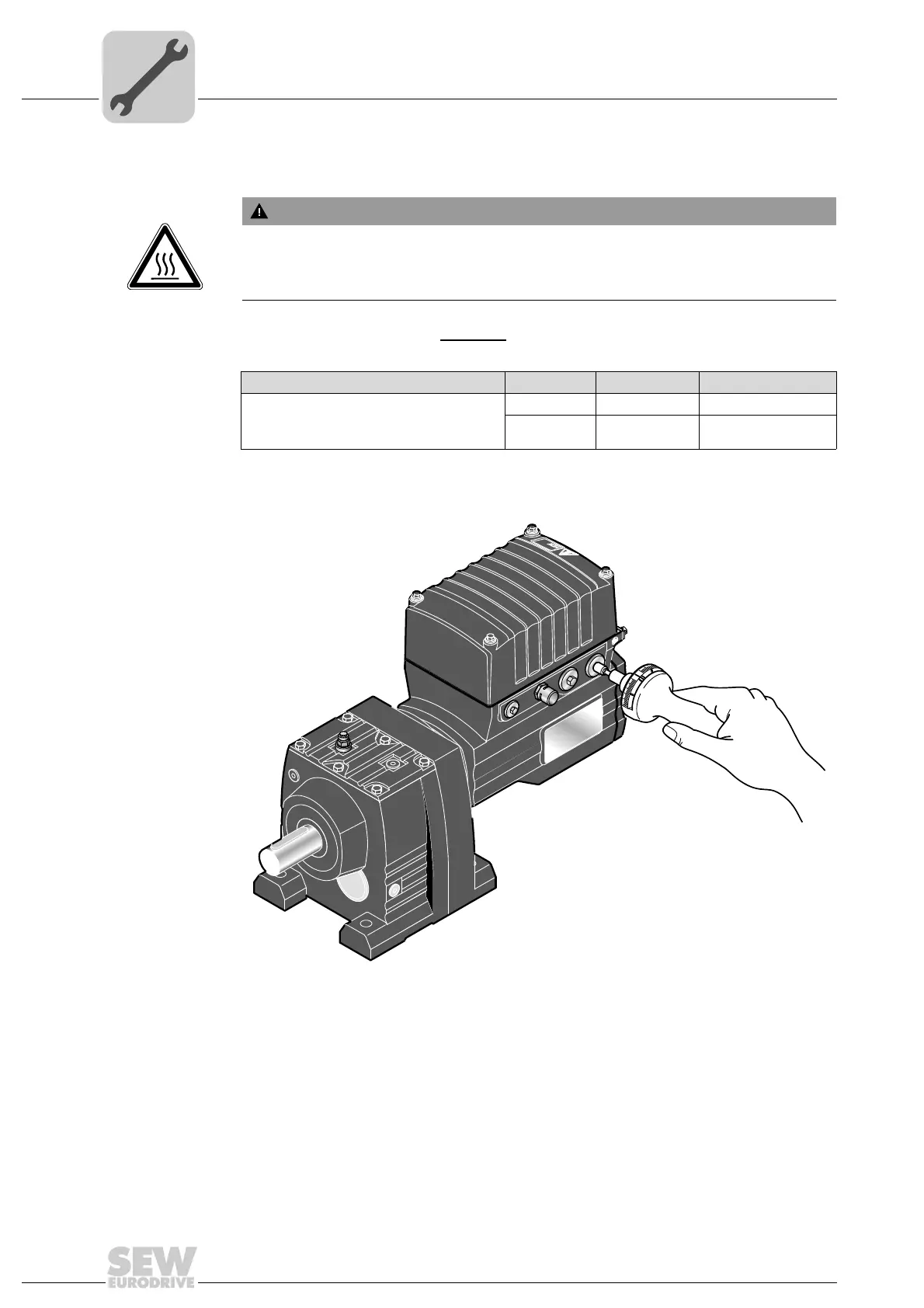

Example The following figure shows an example. The number and position of cable entries
depends on the variant you have ordered.
WARNING
Burns caused by hot surfaces.
Severe injuries.
• Let the units cool down before touching them.
Type of screw fitting Content Size Part number
Screw plugs
hexagon
(made of stainless steel)
10 pcs M16 x 1.5 1 824 734 2
10 pcs M25 x 1.5 1 824 735 0
4768590091
MOVIGEAR
®
B
SNI
