Operating Instructions – Electronic Motor DRC.-..-SNI
65
5
Assignment of optional plug connectors
Electrical Installation

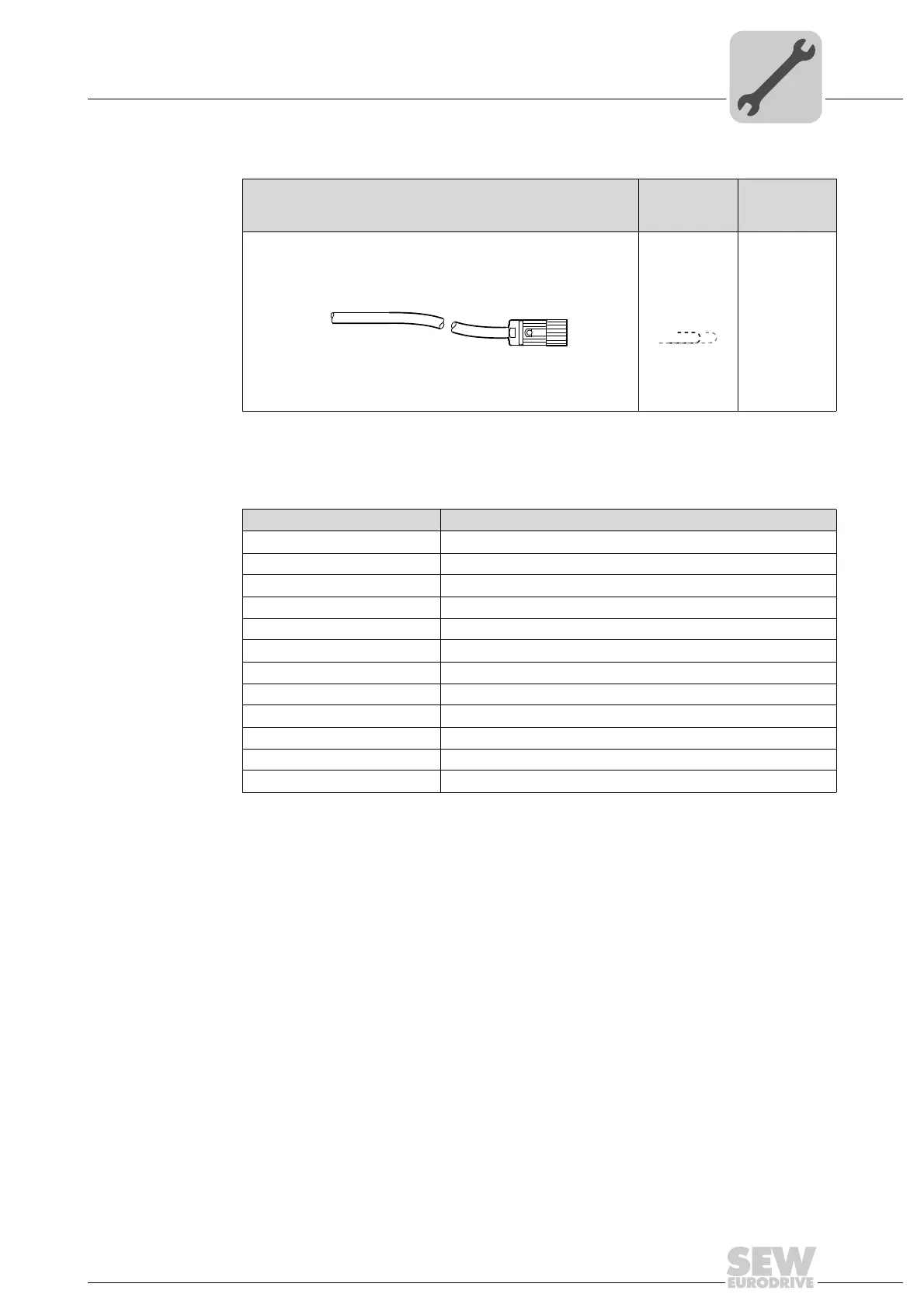

Connection cables The following table provides an overview of the cables available for this connection:
Connection of
cables with open
end
The following table shows the conductor assignment of the cable with the following part
number:
1 174 145 7
Connection cable
Length/
Installation
type
Operating
voltage
Part number 1 174 145 7
Variable
DC 60 V
Open M23, 12-pole,
0°-coded
Signal name Color coding
DI01 Pink
DI02 Gray
DI03 Red
DI04 Blue
Reserved Yellow
Reserved Green
Reserved Violet
+24V_O Black
0V24_O Brown
0V24_SEN White
+24V_SEN Gray/pink
FE Red/blue
