Operating Instructions – Electronic Motor DRC.-..-SNI
5
Assignment of optional plug connectors
Electrical Installation

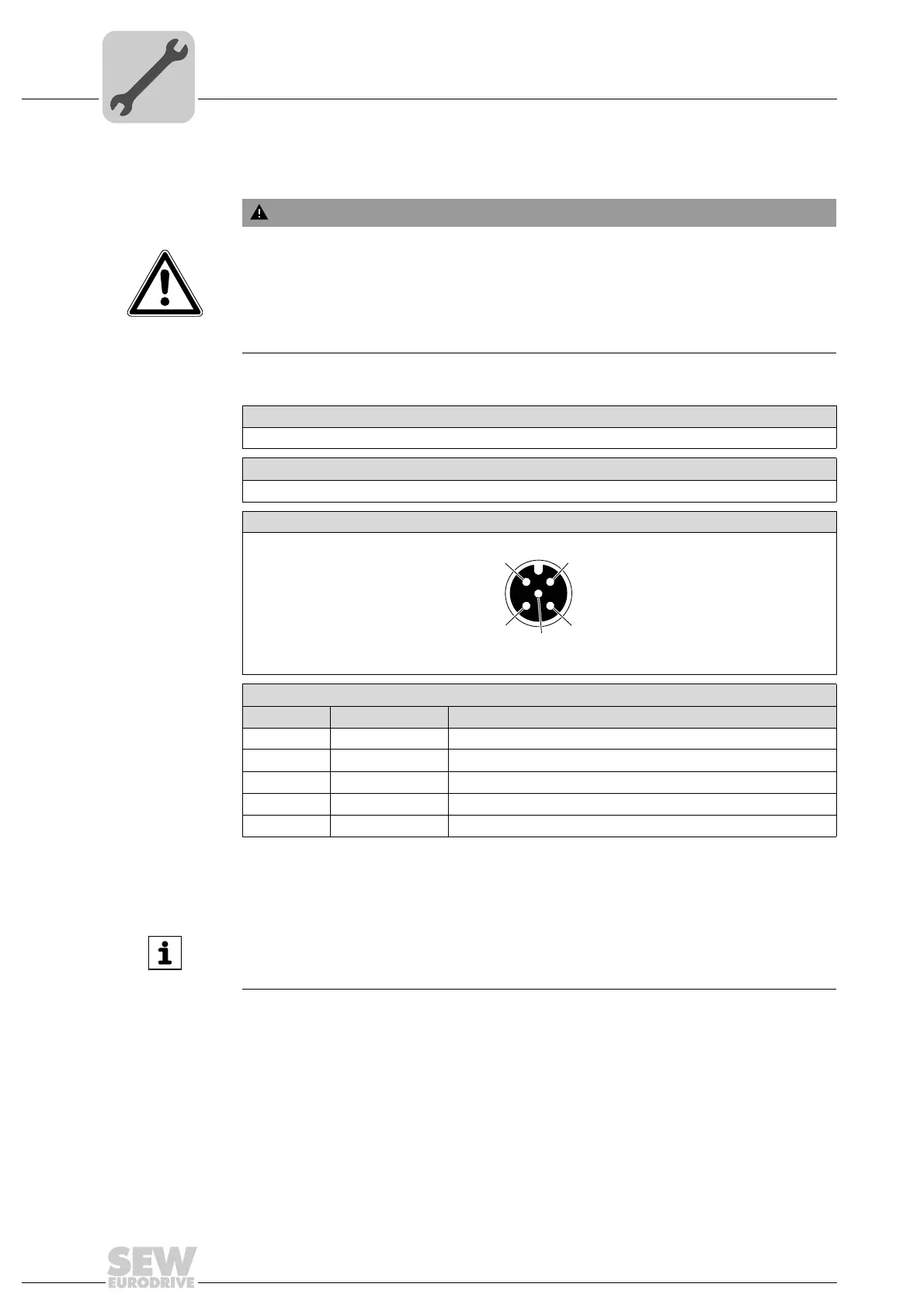

5.10.3 X5502: STO – IN
The following table informs about this connection:
Connection cables
WARNING
No safe disconnection of the DRC drive unit.
Severe or fatal injuries.
• Do not use the 24 V output (pins 1 and 3) for safety-related applications with DRC
drive units.
• You may only jumper the STO input with 24 V when the DRC drive unit need not
fulfill any safety function.
Function
Input for safe torque off (STO)
Connection type
M12, 5-pole, female, A-coded
Wiring diagram
2264816267
Assignment
No. Name Function
1 +24V_O DC 24 V output
2STO − Input STO –
3 0V24_O 0V24 reference potential
4 STO + Input STO +
5 res. Reserved
1
4
3
2
5
INFORMATION
Use only shielded cables for this connection and only suitable plug connectors that
connect the shield with the unit in an HF-capable manner.
