Operating Instructions – Electronic Motor DRC.-..-SNI
67
5
Assignment of optional plug connectors
Electrical Installation

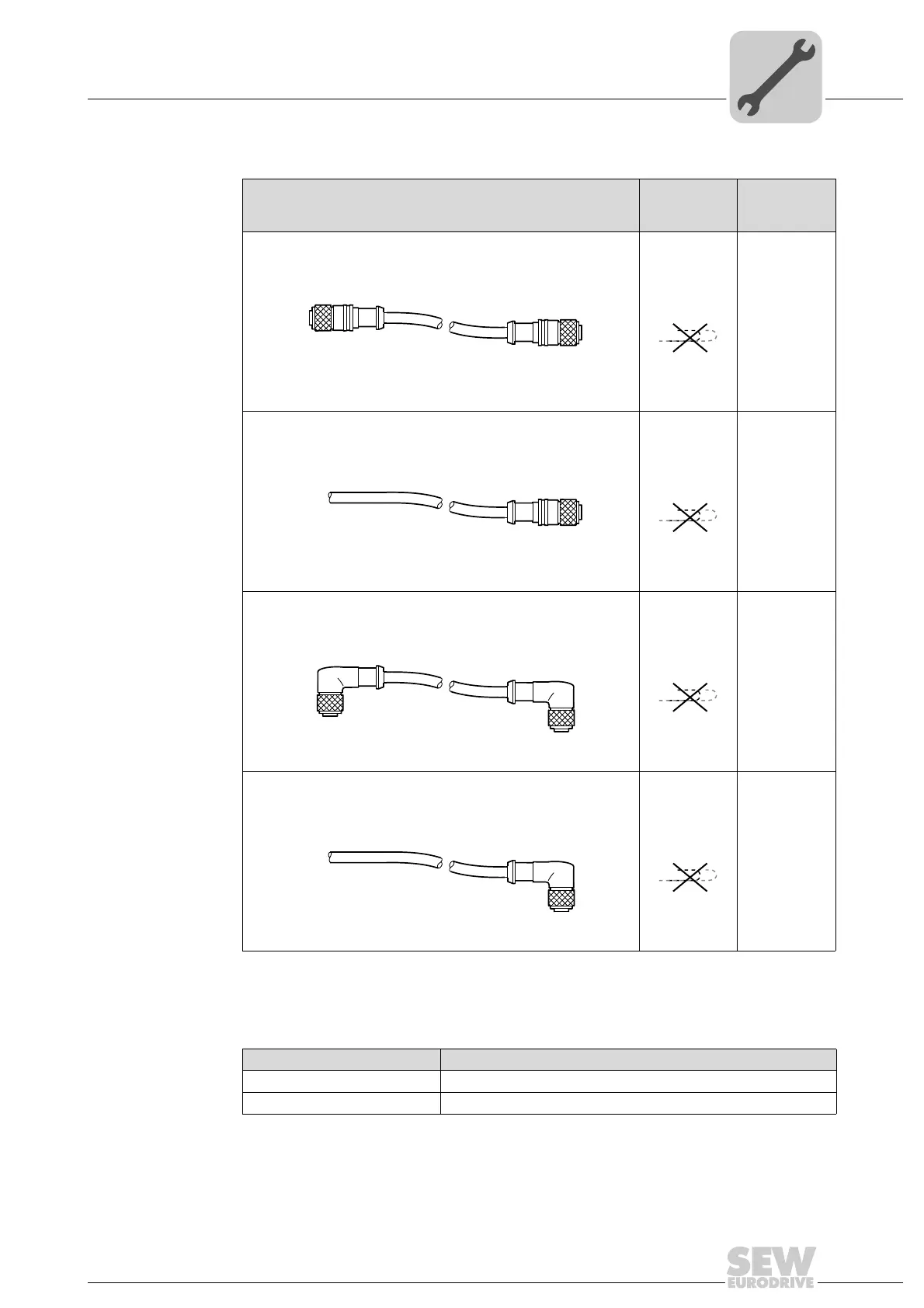

The following table provides an overview of the cables available for this connection:
Connection of
cables with open
end
The following table shows the conductor assignment of the cable with the following part
number:
1 812 497 6 and 1 812 739 8
Connection cable
Length/
Installation
type
Operating
voltage
Part number 1 812 496 8
Variable
DC 60 V
M12, 5-pole, A-coded M12, 5-pole,
A-coded
Part number 1 812 497 6
Variable
DC 60 V
Open M12, 5-pole,
A-coded
Part number 1 812 740 1
Variable
DC 60 V
M12, 5-pole, A-coded M12, 5-pole,
A-coded
Part number 1 812 739 8
Variable
DC 60 V
Open M12, 5-pole,
A-coded
Signal name Core color/designation
STO − Black / 1
STO + Black / 2
