Operating Instructions – Electronic Motor DRC.-..-SNI
5
Assignment of optional plug connectors
Electrical Installation

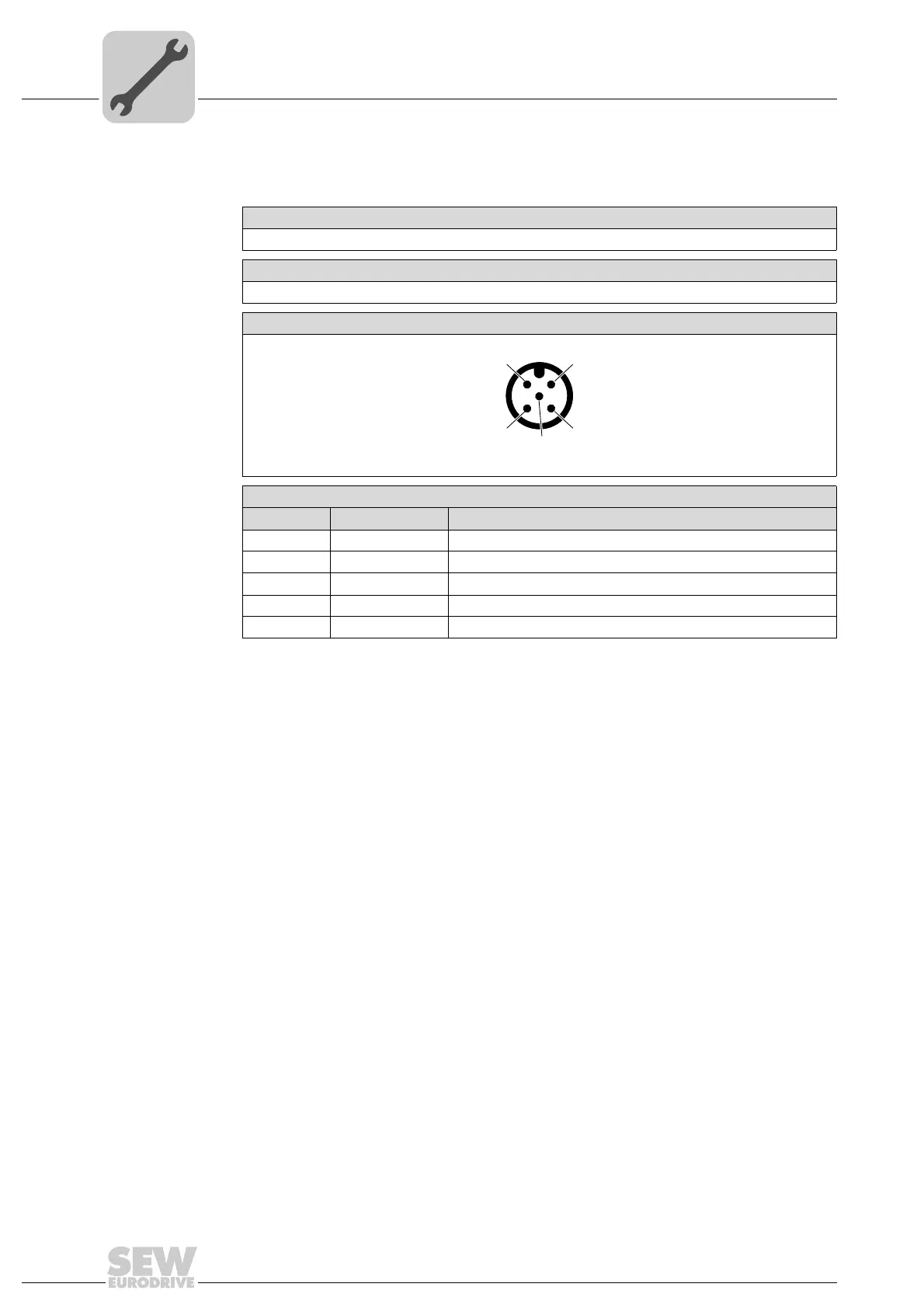

5.10.4 X5503: STO – OUT
The following table informs about this connection:
Function
Connection for safe torque off (STO) for looping through
Connection type
M12, 5-pole, male, A-coded
Wiring diagram
2264818187
Assignment
No. Name Function
1 res. Reserved
2STO − Output STO – (to loop through)
3 res. Reserved
4 STO + Output STO + (to loop through)
5 res. Reserved
