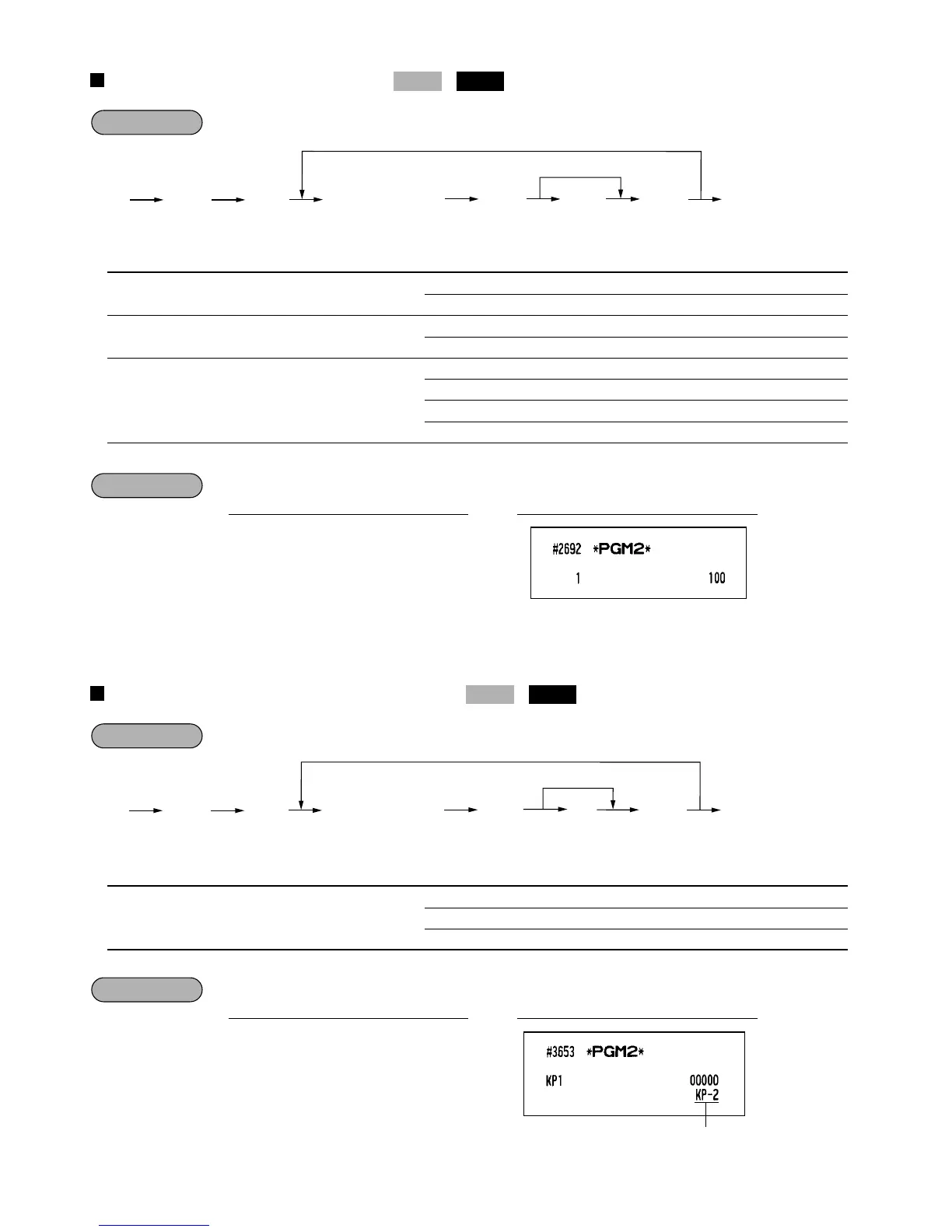

168
Remote printer assignment
*
Item:
Selection:
Entry:
A
Logo text printing
Not print
0
Print
1
B
Auto cutter function
Disable
0
Enable
1
C
Type of the printer
TM-U200 or TM-U230
0
TM-U220 (type B only)
1
TM-T88(3)
2
TM-T88(3)+Logo
3
Second remote printer assignment
*
Item:
Selection:
Entry:
A
Second remote printer
Nothing
0
Remote printer 1
1
Remote printer 2
2
Remote printer 2
3653
.@
1
@
2
t
Ç
Print
Key operation
Example
3653
.
@
@
t
Ç
Remote printer no.
(1 or 2)
*A
To program zero
Procedure
3653
PGM 2
2692
.@
1
@
100
t
Ç
Print
Key operation
Example
2692
.
@
@
t
Ç
Remote printer no.
(1 or 2)
*ABC
To program zero
Procedure
2692
PGM 2
169
171
