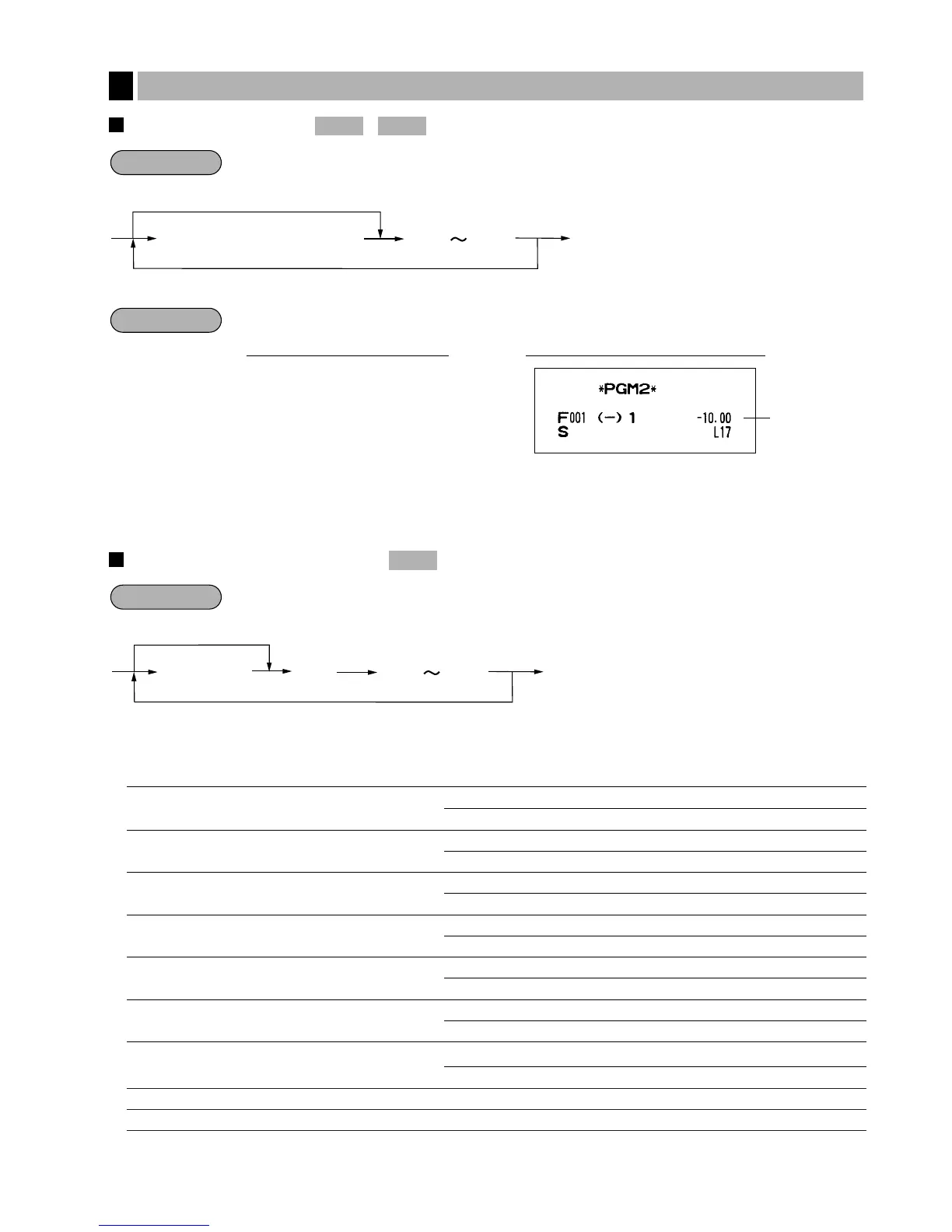

87
Discount amount
Functional programming
*
Item:
Selection:
Entry:
A
Food stamp status
Ineligible
0
Eligible
1
B
Tax 4 status
Non-taxable
0
Taxable
1
C
Tax 3 status
Non-taxable
0
Taxable
1
D
Tax 2 status
Non-taxable
0
Taxable
1
E
Tax 1 status
Non-taxable
0
Taxable
1
F
Sign (+/-)
Plus
0
Minus
1
G
Vendor/store coupon selection
Vendor coupon
(subtotal
_
)0
Store coupon
(item
_
)1
H
Significant digit for HALO
1 thru 9
I
Number of zeros to follow the significant digit for HALO
0 thru 7
-
±
Ç
*ABCDEFGHI
To program zero
@
To program any coupon function
Procedure
PGM 2
Discount
amount
1000
-
Ç
Print
Key operation
Example
-
±
Ç
Discount amount (max. 6 digits)
To program zero
Procedure
PGM 2
PGM 1
Programming for discount keys (
-
)
4
88
90
