204
The subsequent printout occurs in the
same format as th ePLU/UPC report by
designated range.
PLU/UPC report by associated department

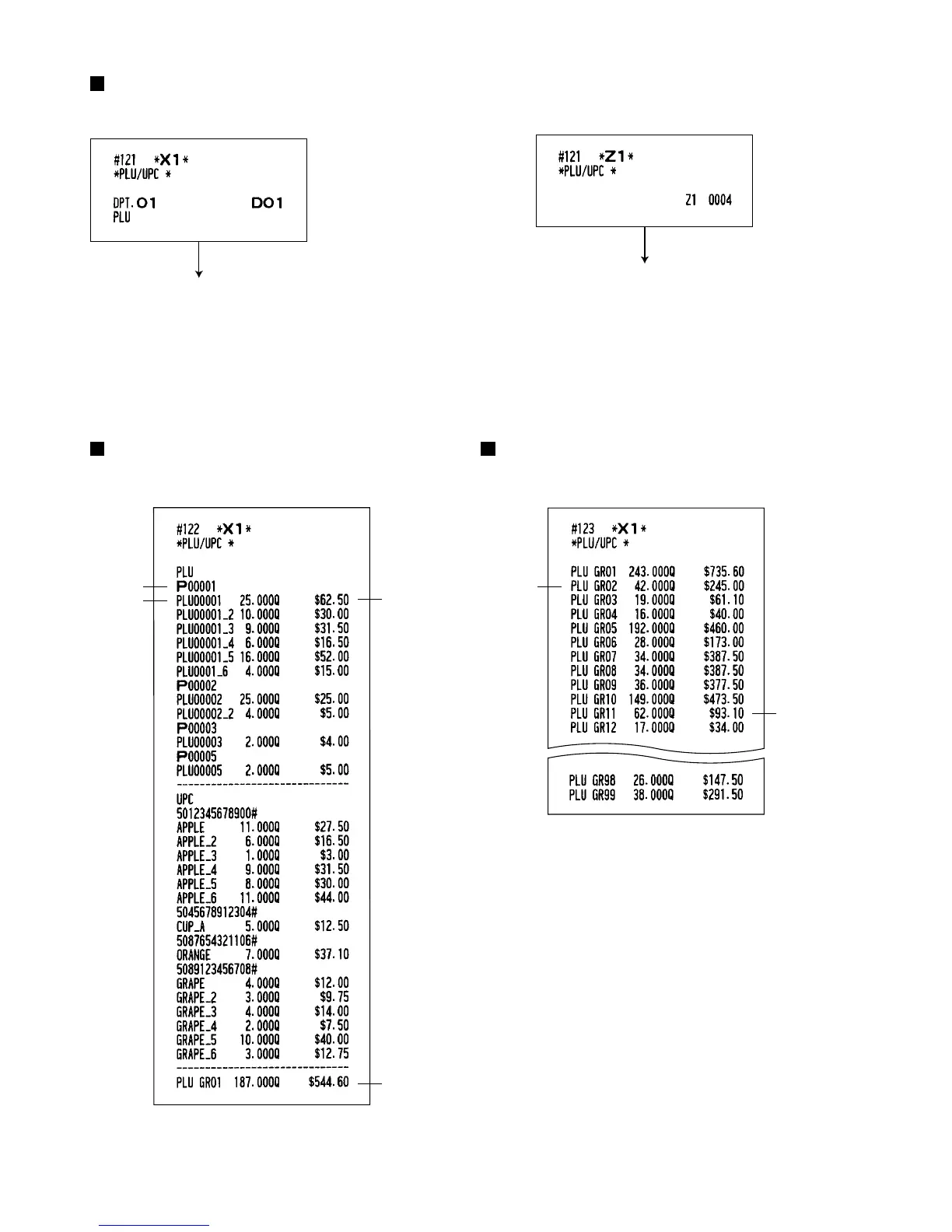

• Sample X report
• Sample Z report
The subsequent printout occurs in the same
format as in the sample X report.
Individual group total report on
PLU/UPC
Sales q'ty and
amount for
price level 1
PLU code
Item label
for price
level 1
Group 1 sales q'ty
and amount
Full group total report on
PLU/UPC
Sales q’ty and
amount for
PLU group 11
Group text
205
207
