Operating Instructions Chapter 10

CLV65x Bar Code Scanner

Technical data

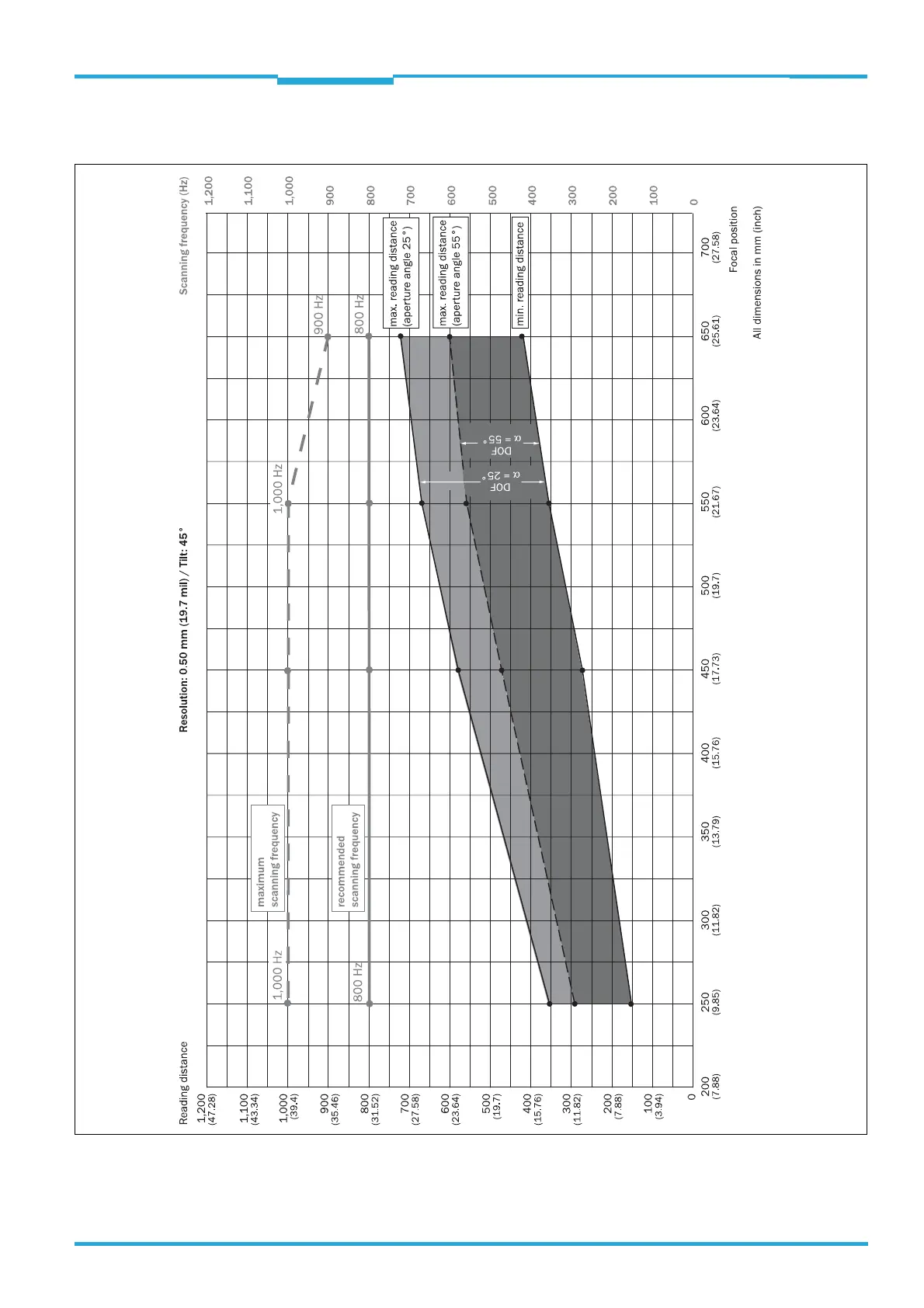

Fig. 10-17: Depth of field ranges of the CLV651 line scanner with oscillating mirror (side reading window):

Resolution 0.5 mm (19.7 mil); inclination angle 45°; aperture angle 25°/55°
