Chapter 10 Operating Instructions

CLV65x Bar Code Scanner

Technical data

10.4.3 Depth of field ranges of the CLV651 line scanner with front reading window

(different aperture and inclination angle)

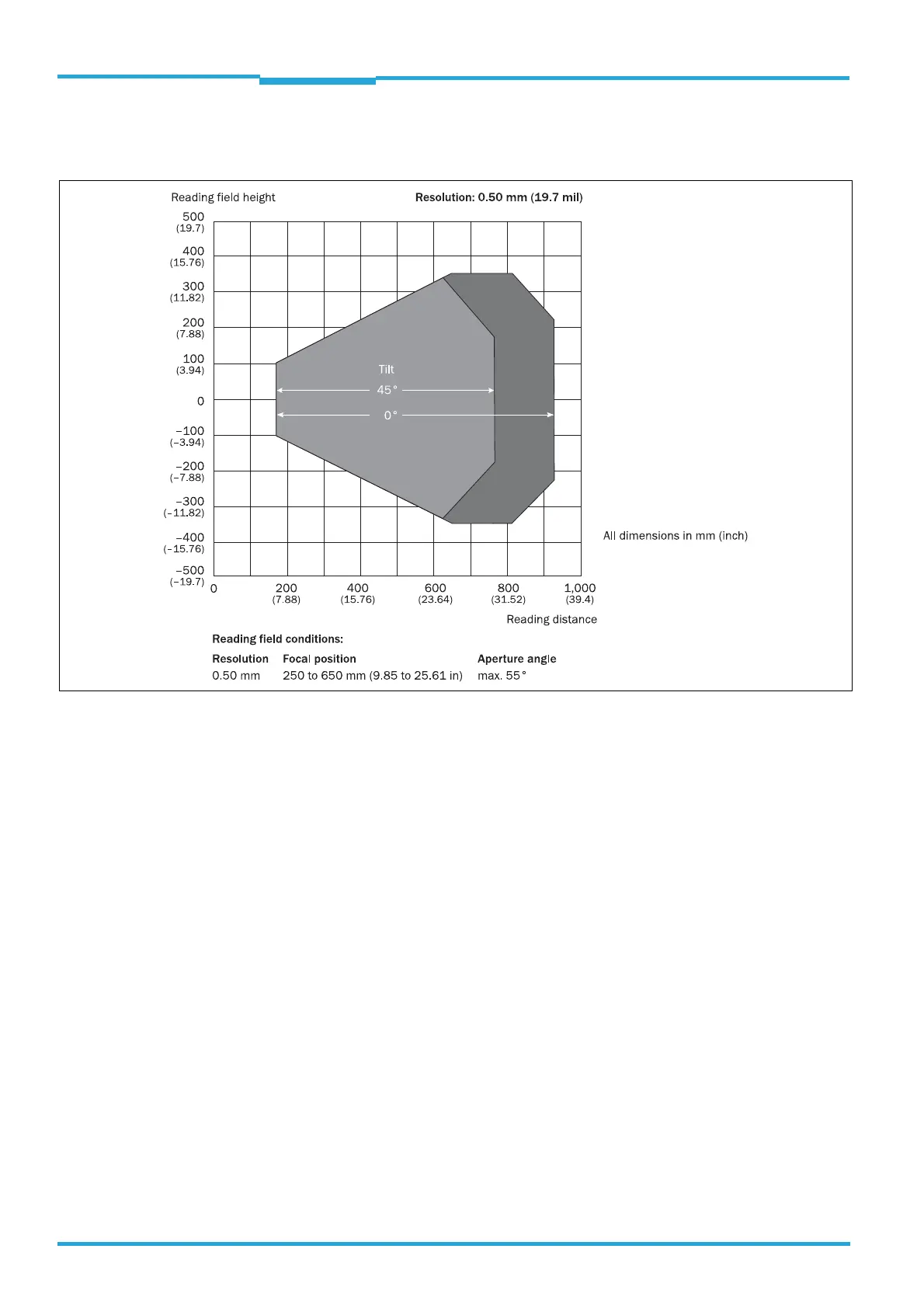

Fig. 10-12: Depth of field ranges of the CLV651 line scanner with front reading window: Resolution 0.5 mm (19.7 mil) and inclination

angle 0°/45°
