Chapter 10 Operating Instructions

CLV65x Bar Code Scanner

Technical data

10.4.1 Depth of field ranges of the CLV650 line scanner with front reading window

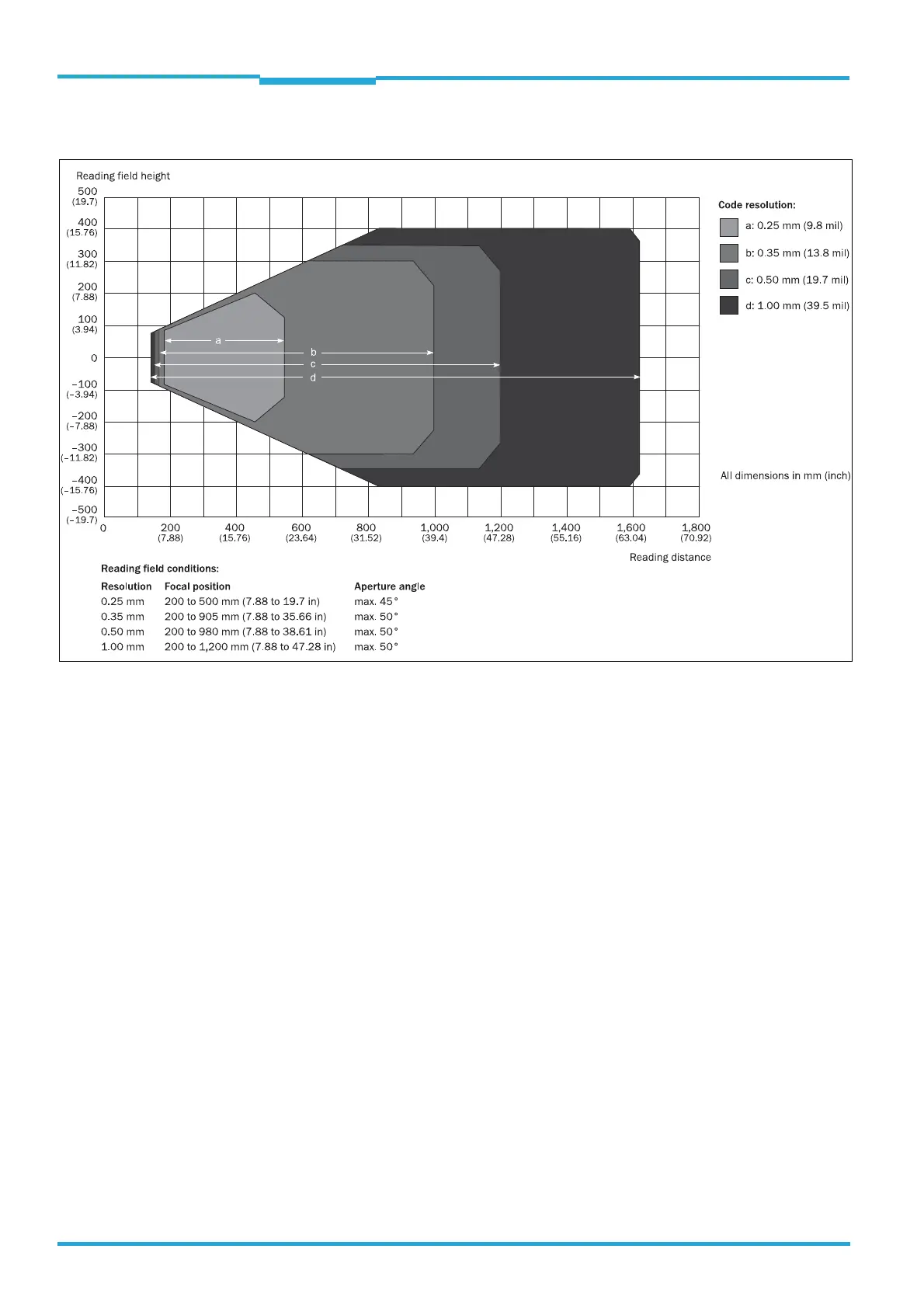

Fig. 10-2: Depth of field ranges of the CLV650 line scanner with front reading window:

Resolutions 0.25 mm (9.8 mil), 0.35 mm (13.8 mil), 0.5 mm (19.7 mil) and 1.0 mm (39.4 mil)
