11.4.2 Dimensional drawing of quick release clamp no. 2025526

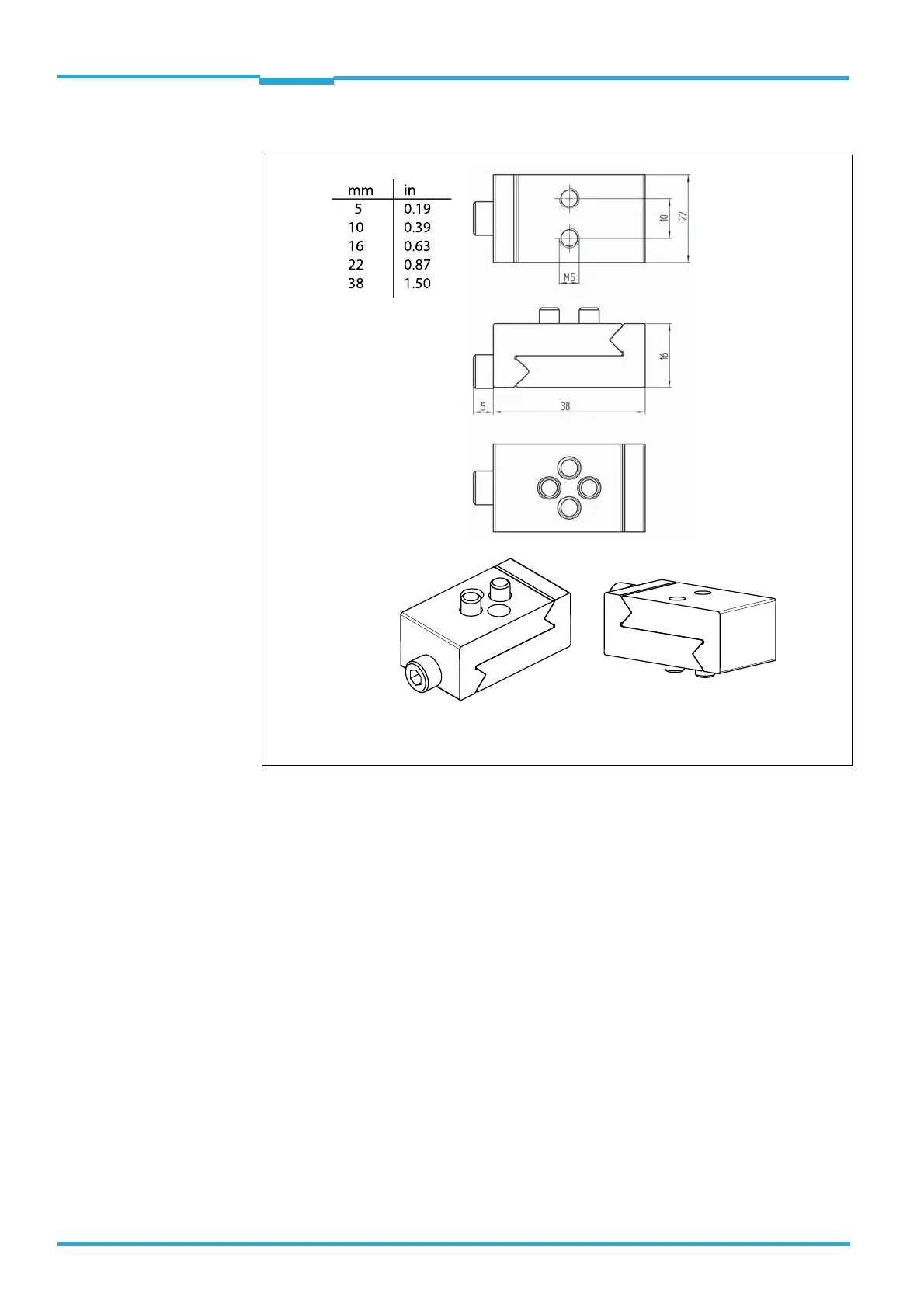

Fig. 11-2: Dimensions of the quick release clamp no. 2025526

Included to fix the bar code scanner to the clamp:

2 x cylinder head screws M5 x 8 mm (0.32 in), with hexagon socket, self-locking
