Operating Instructions Chapter 4
CLV65x Bar Code Scanner
Product description
8011980/0000/2009-04-21 © SICK AG · Division Auto Ident · Germany · All rights reserved 35
4.6.8 Reading operation mode
There is only one object in the reading field during start/stop operation, i.e. all the read
codes should be unambiguously assigned to the object. Starting and stopping the reading
process controls one/two reading pulse sensors at the beginning and at the end of the rea-
ding field by default. The distance between each sensor is determined by the size of the rea-
ding field. The reading process can be alternatively controlled with command strings via the
data interface. The output of the reading results is carried out either at the end of the rea-
ding pulse (the rear edge of the object has left the end of the reading field) or during the
reading pulse if certain configurable conditions have been fulfilled.

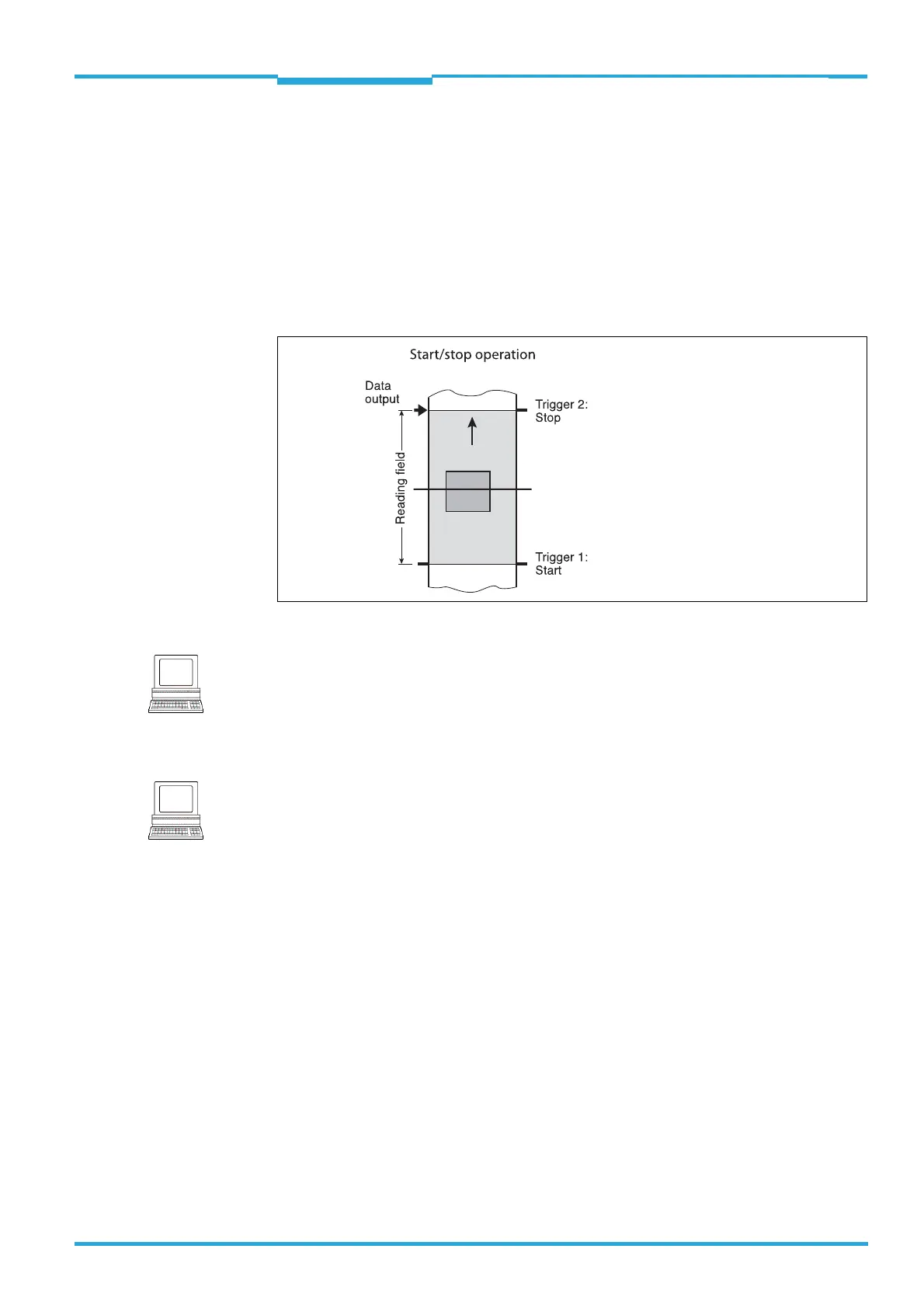

Fig. 4-7: Reading operation mode for the CLV65x bar code scanner in stand-alone operation
4.6.9 Data processing
Note
The reading operation mode can be configured using the SOPAS-ET configuration software:
P
ROJECT TREE, CLV65X, PARAMETER, DATA PROCESSING, TRACKING register tab
Note
The output time in the reading process with regard to the reading pulse start can be confi-
gured using the SOPAS-ET configuration software:
P
ROJECT TREE, CLV65X, PARAMETER, DATA PROCESSING, OUTPUT CONTROL
Furthermore, the evaluation conditions, filters and sorters for data output to the host com-
puter can be configured:
P
ROJECT TREE, CLV65X, PARAMETER, DATA PROCESSING, EVALUATION CONDITION
PROJECT TREE, CLV65X, PARAMETER, DATA PROCESSING, FILTER/SORTER FOR OUTPUT
