Operating Instructions Chapter 11

CLV65x Bar Code Scanner

Appendix

11.4.3 Dimensional drawing fixing bracket no. 2042800

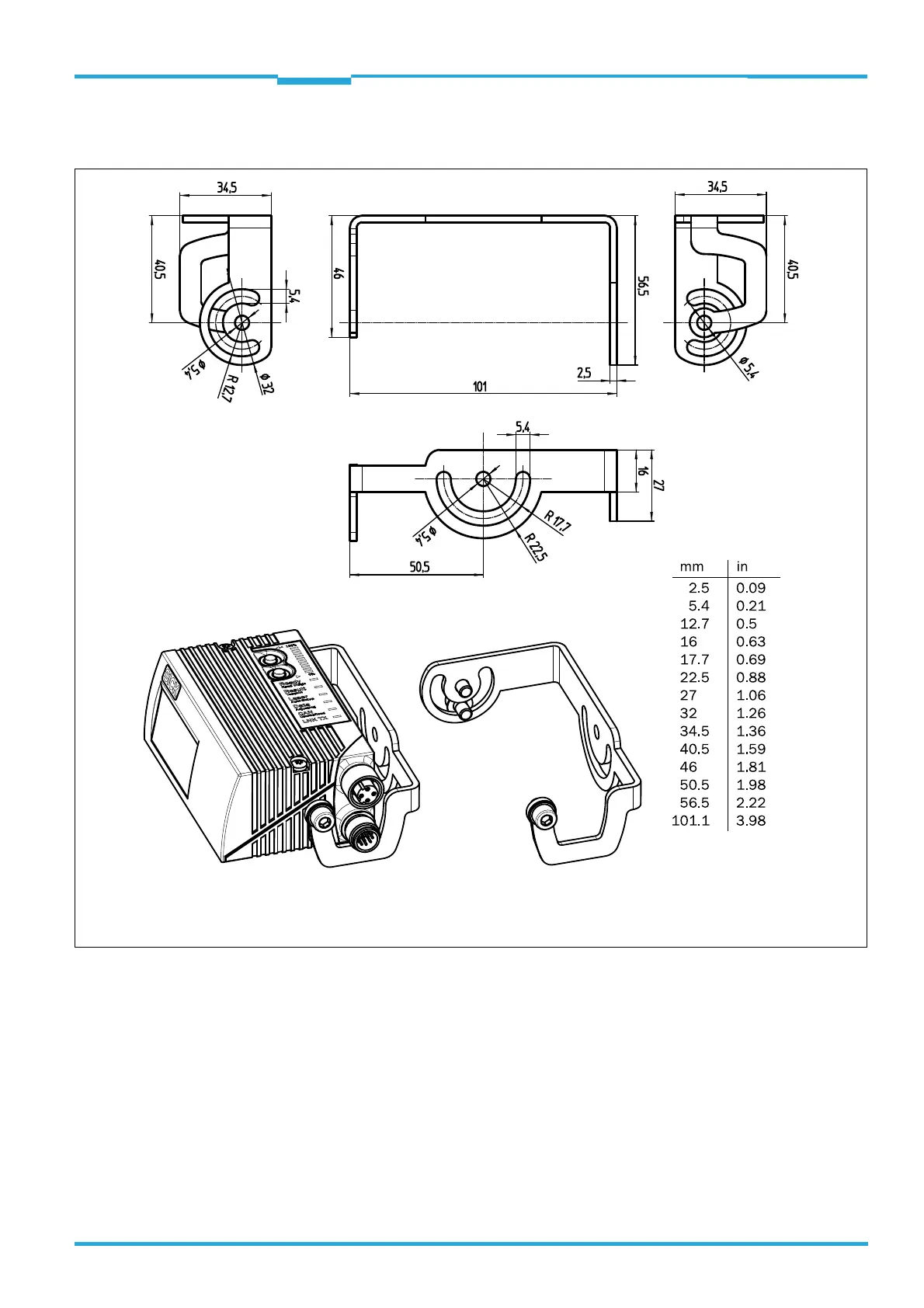

Fig. 11-3: Dimensions of the fixing bracket no. 2042800

Included to fix the bar code scanner to the bracket:

• 3 x cylinder head screws M5 x 8 mm (0.32 in), with hexagon socket, self-locking

• 3 x spring washer A5
