Chapter 6 Operating Instructions
CLV65x Bar Code Scanner
66 © SICK AG · Division Auto Ident · Germany · All rights reserved 8011980/0000/2009-04-21
Electrical installation
Cable no. 6034418 (Standard version)

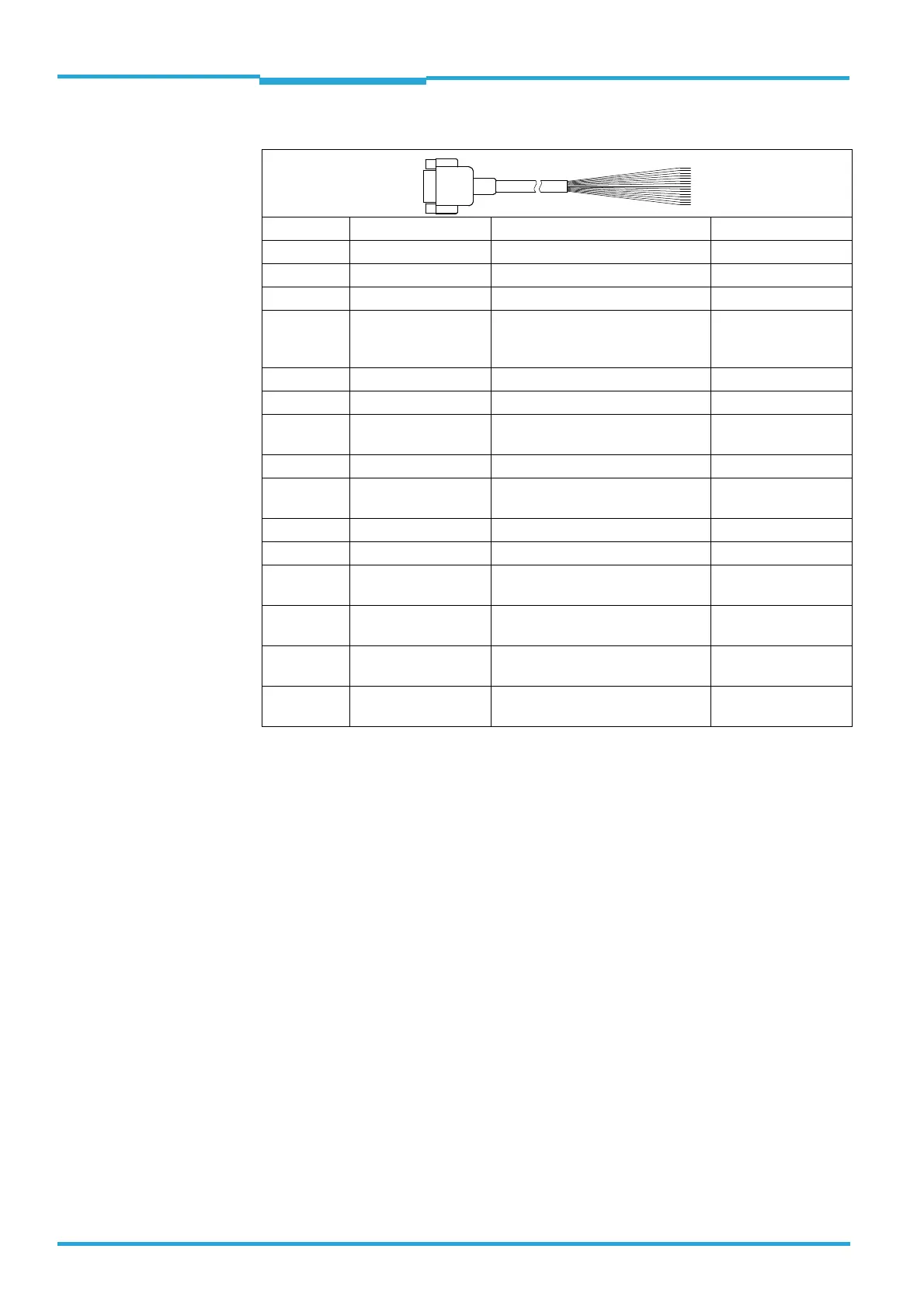

Tab. 6-13: Pin assignment of the 15-pole D-Sub-HD socket and wire colours at the open cable end
Pin (15-pole) Signal Function Wire colour
1 18 ... 30 V DC Supply voltage Red
2 RxD (Aux) Aux interface (receiver) violet
3 TxD (Aux) Aux interface (sender) Yellow
4 Sensor 2 Digital switching input (adjustable
function, e. g. external reading
pulse)
red-black
5GND Ground black
6 RD+ (RS-422/485) Host interface (receiver) light blue
7 RD– (RS-422/485);
RxD (RS-232)
Host interface (receiver) blue
8 TD+ (RS-422/485) Host interface (sender) light grey-turquoise
9 TD– (RS-422/485);
TxD (RS-232)
Host interface (sender) green
10 CAN H CAN bus (IN/OUT) grey
11 CAN L CAN bus (IN/OUT) pink
12 Result 1 Digital switching output, adjustable
function
brown
13 Result 2 Digital switching output, adjustable
function
orange
14 Sensor 1 Digital switching input for external
reading pulse
white
15 SensGND Common ground for the switching
inputs
white-black
