SICK Advanced CLV65 Series - Fig. 10-23: Ethernet Version: Dimensions of the Bar Code Scanner with Oscilliating Mirror (Clv65 X-6120)

124 pages

To Next Page

To Previous Page

Chapter 10 Operating Instructions

CLV65x Bar Code Scanner

Technical data

10.5.4 CLV65x-6120 bar code scanner diminsional drawings

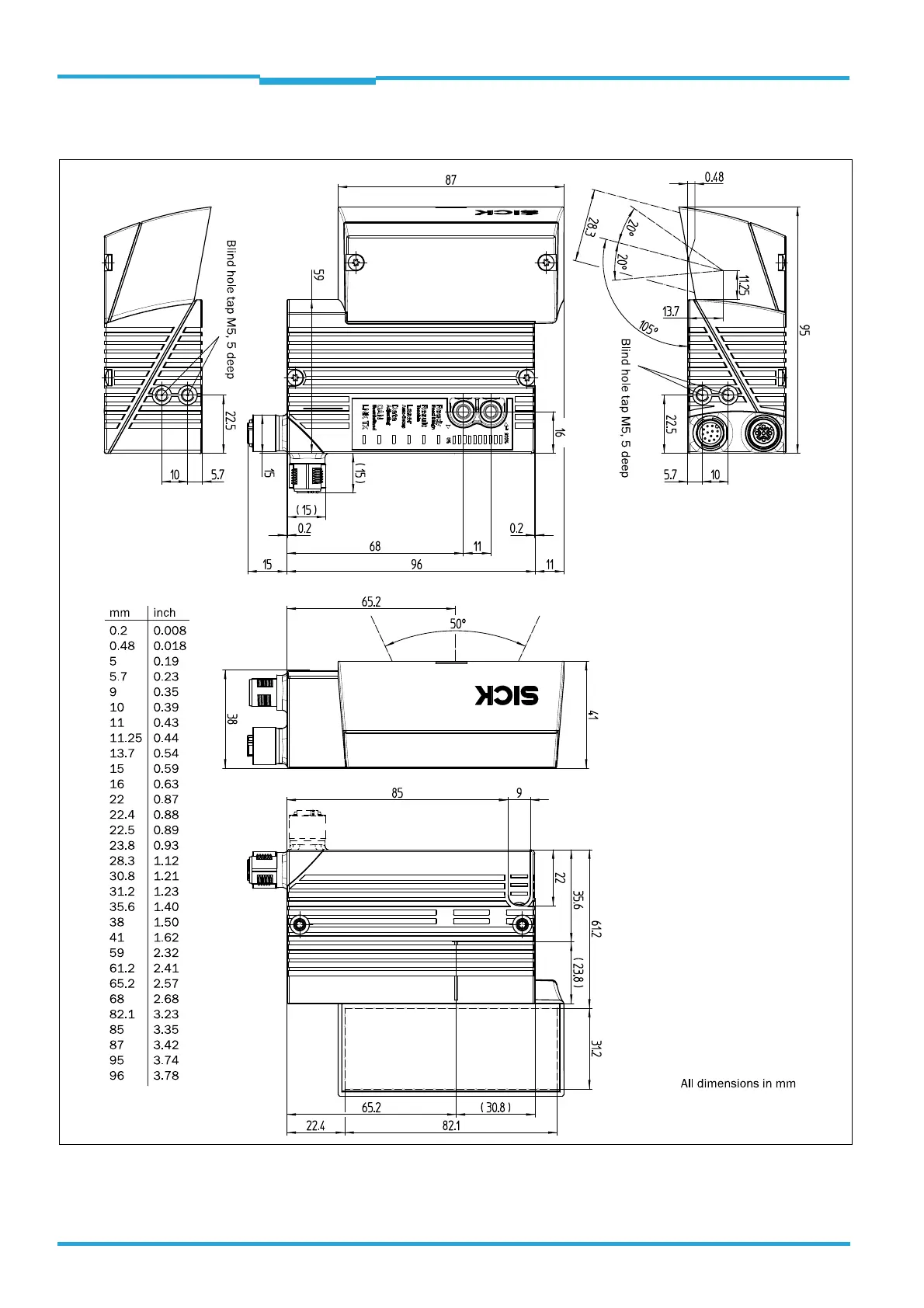

Fig. 10-23: Ethernet version: Dimensions of the bar code scanner with oscilliating mirror (CLV65x-6120)
