SICK Advanced CLV65 Series - Tab. 2-2: Laser Data of Clv65 X; Fig. 2-2: Laser Warning Sign Attached to the Bar Code Scanner at Delivery

To Next Page

To Previous Page

Chapter 2 Operating Instructions

CLV65x Bar Code Scanner

Safety information

The bar code scanner displays a black and yellow laser warning sign.

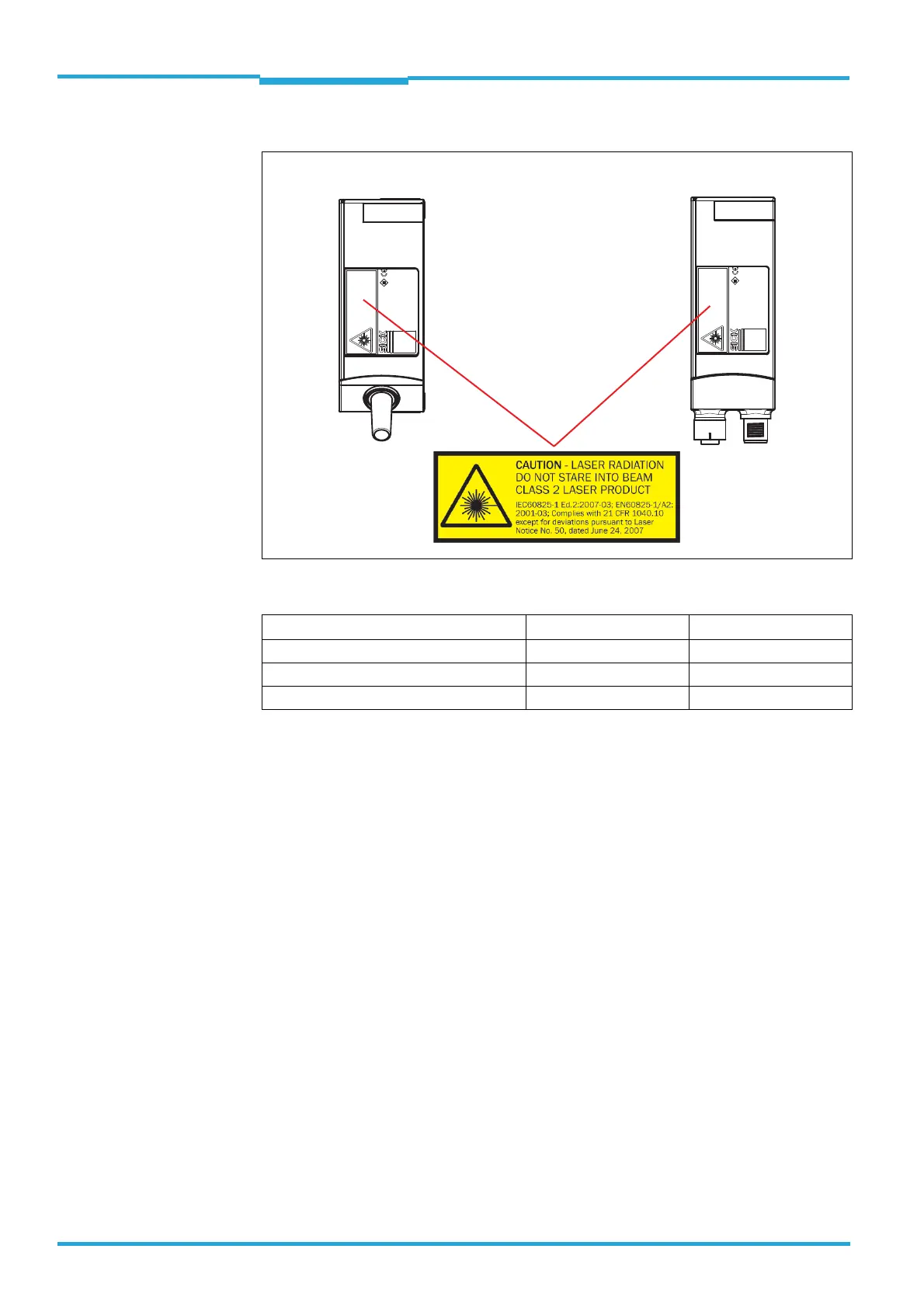

Fig. 2-2: Laser warning sign attached to the bar code scanner at delivery

Tab. 2-2: Laser data of CLV65x

Important If the bar code scanner is installed in a machine/panelling in such a way that the bar code

scanner's laser warning sign is hidden, additional warning signs in the same language (not

included in delivery) have to be attached to the machine next to the outlet opening of the

laser radiation!

Standard version Ethernet version

Device CLV650 CLV651

Laser out radiation (maximum/average) 7.0 mW/ <1.0 mW 4.5 mW/ <1.0 mW

Emitted wavelength 658 nm 658 nm

Pulse duration < 80 μs < 80 μs
