SICK ALIS - ALIS - Matrix Camera Based Bar Code Reading System; ALIS Camera - Camera System with 8 Matrix Cameras and 2 Laser Scanners

19
8027605/V1-0/2022-03| SICK S Y S T E M D E S C R I P T I O N | ALIS
Subject to change without notice
SYSTEMS DESCRIPTION 3
3.2 ALIS - Matrix Camera based Bar Code Reading System
3.2.1 ALIS Camera - Camera System with 8 Matrix Cameras and 2 Laser Scanners

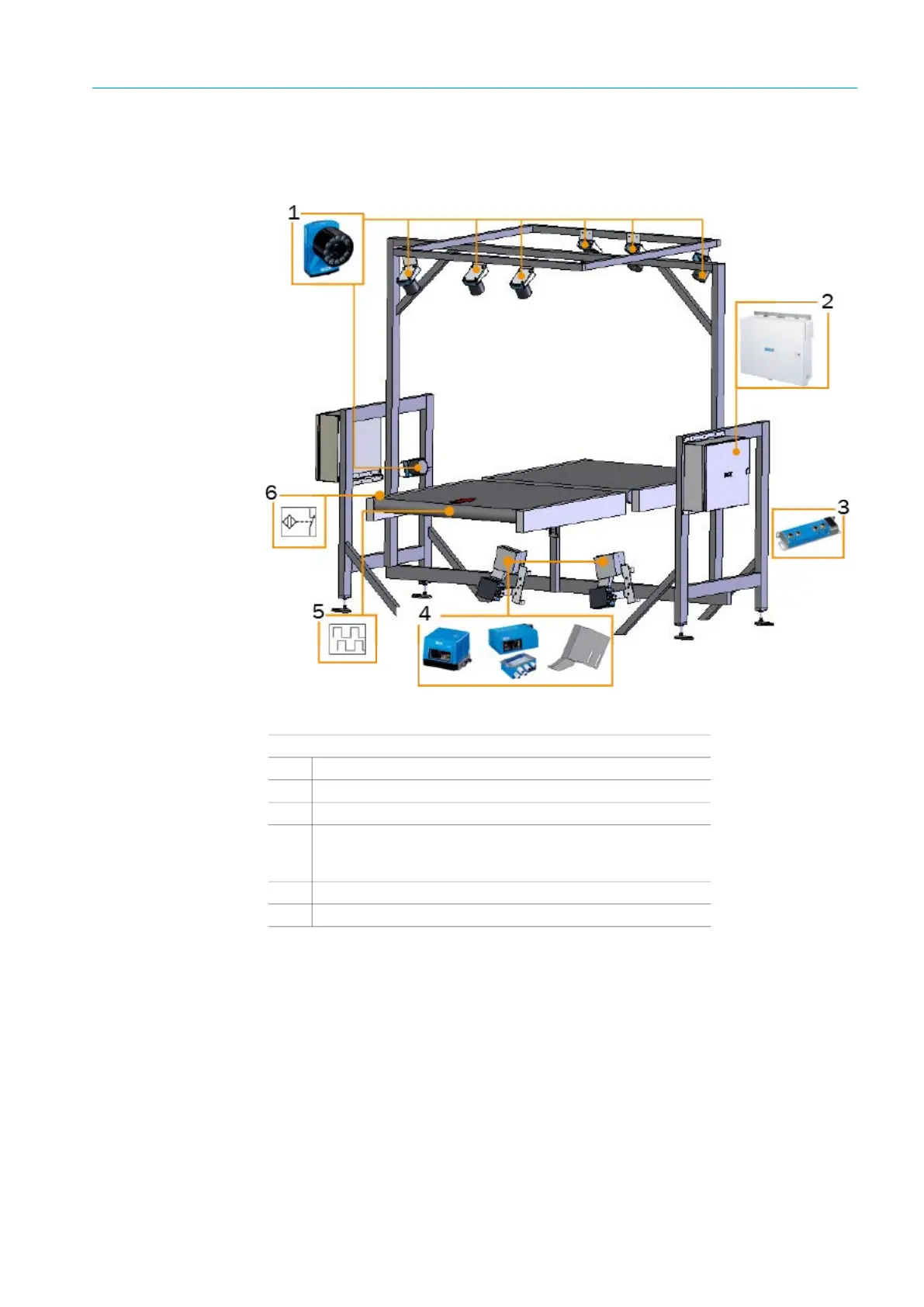

Fig. 2: Components of the 6 side ALIS reading gate based on Lectors654 and 2 CLV691
Legend
1
Eight Lector654 image based code reader
2
Cabinet with controller, power supply and Ethernet switch
3
Field bus module for PROFINET (optionally)
4
Two CLV691 fixed mount bar code scanner with cleaning unit
optionally 3 - 4 CLV651 fixed mount bar code scanners with
cleaning unit and connection unit
5
Incremental signal
6
Trigger signal
