MAINTENANCE AND REPAIR 9
9.4 Components Replacing
9.4.1 CLV691 Replacing
The CLV691 features a removable cloning connector, on which all parameters of the device
are permanently stored. This makes replacing the component very easy.
Removing the cloning connector

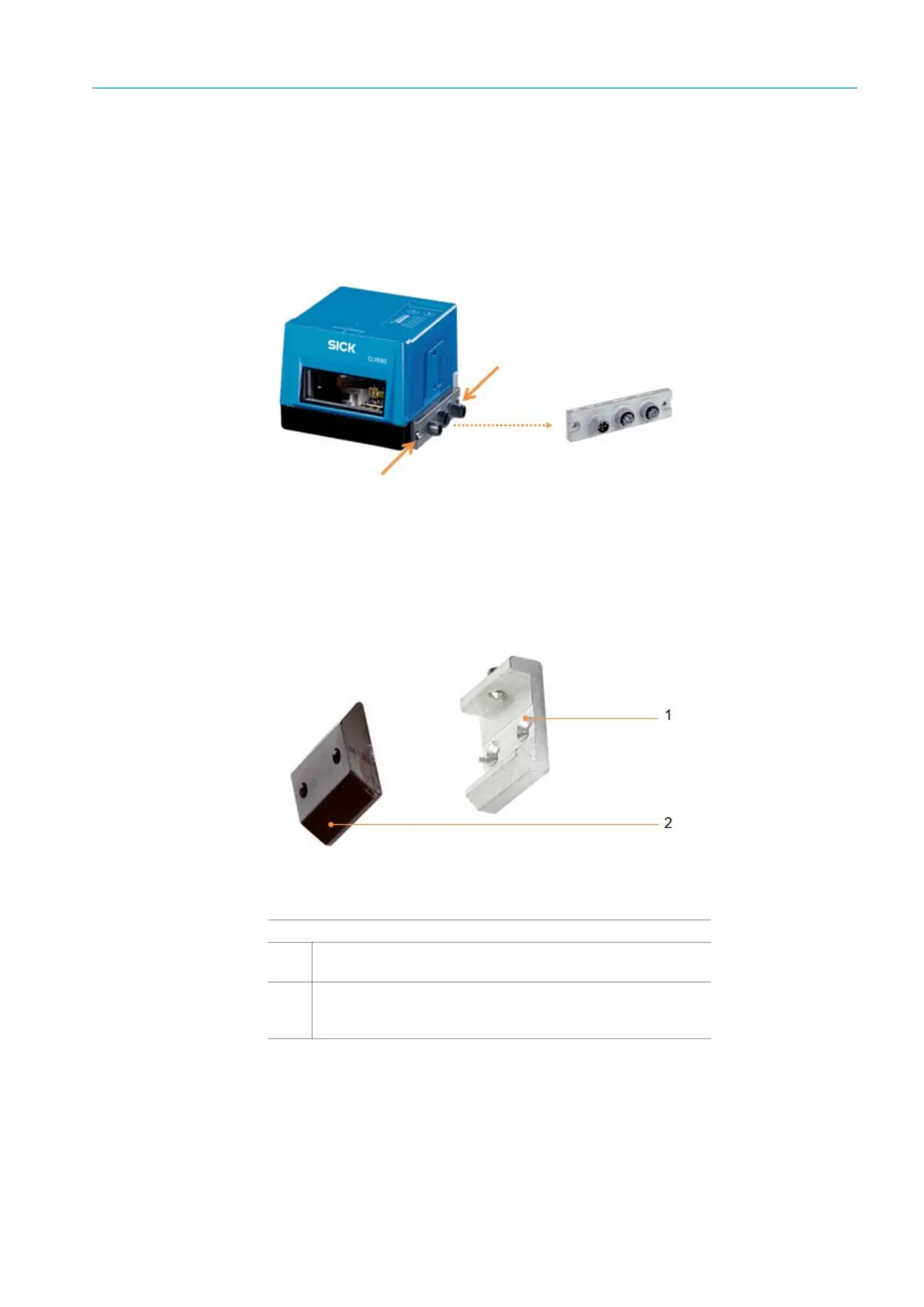

Fig. 42: Removing the cloning connector
▸ Undo the hexagonal socket screws of the cloning connector.
▸ Remove the cloning connector and connected cables from the CLV691.
Quick release
The fixed mount bar code scanners for top reading are mounted on the main frame using a
quick release and a mounting bracket.
Fig. 43: Quick release
Legend
1
Clamping profile. Used to accommodate the fixed mount bar
code scanner.
2
Clamp. Is inserted into the clamping profile and screwed in
place after the fixed mount bar code scanner has been
mounted
