SYSTEMS DESCRIPTION 3
3.3 ALIS RFID - Radio Frequency Identification System

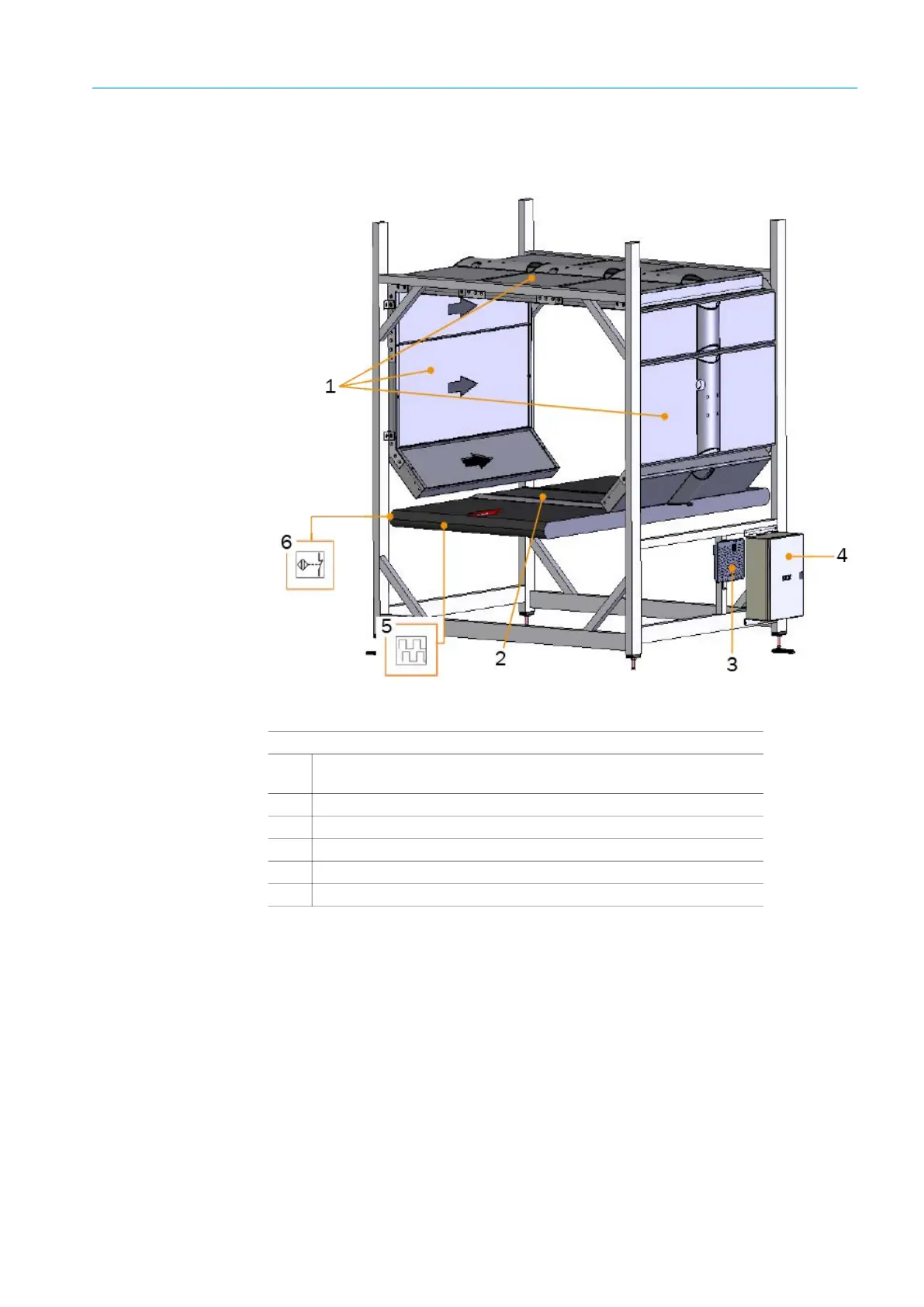

Fig. 4: Components of the ALIS RFID
Legend
1
Absorber modules with integrated antenna.
The remaining modules are without antennas
2
Bottom antenna mounted between conveyor bed and conveyor belt
3
RFU630 read/write device
4
Cabinet with controller and power supply unit
5
Incremental signal
6
Trigger signal
