4 SYSTEM COMPONENTS
4.2.2 Lector654 Image-Based Code reader with Mirror
If the Lector654 Image based bar code reader cannot be installed at the prescribed mini-
mum distance to the conveyor, the reading can be done by using a mirror.
The mirrors can be installed on either one or both sides and even on top of the system,
depending on where the space restriction occurs.

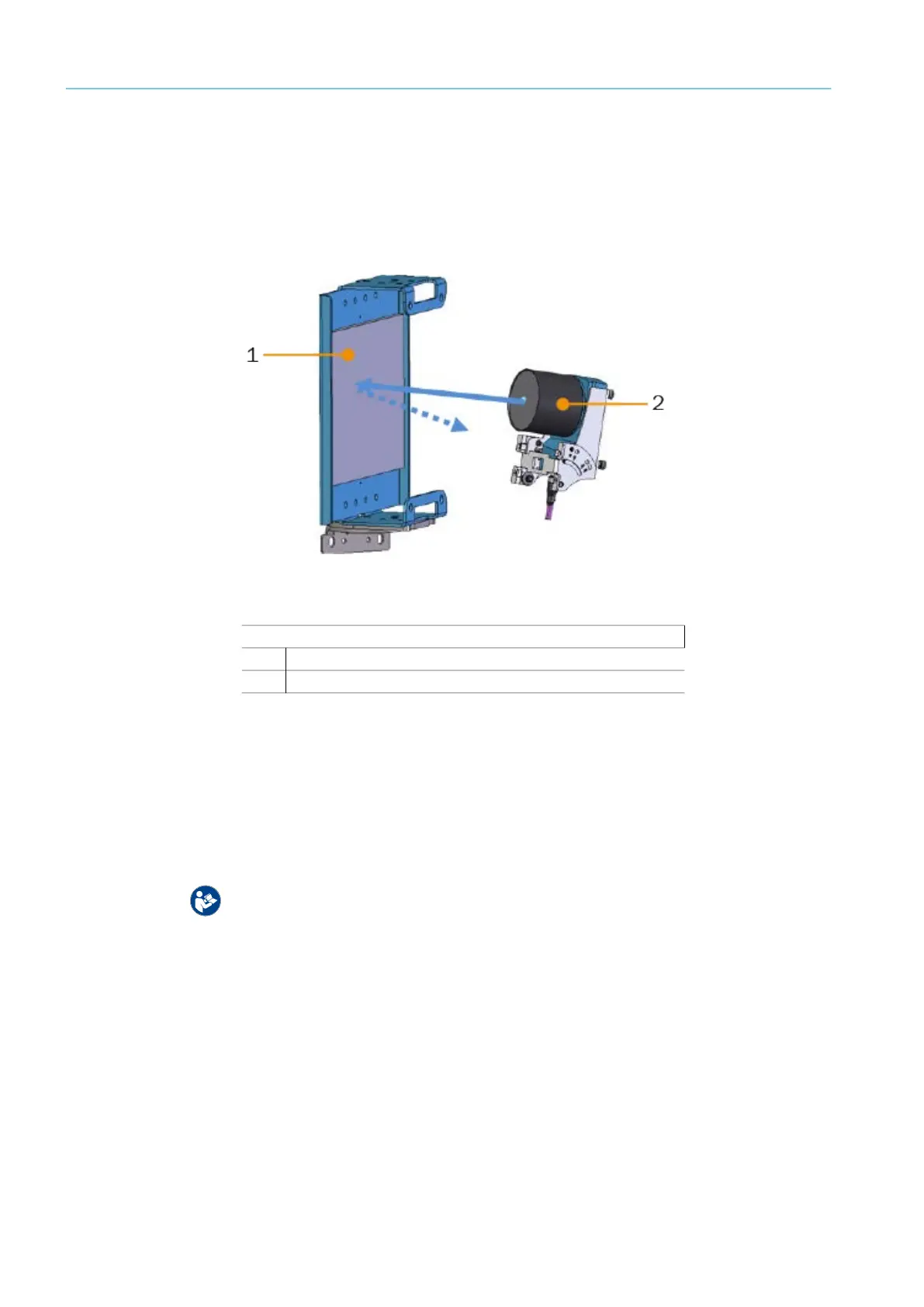

Fig. 15: Lector654 with deflection mirror
Function
● The resulting extension of the light path allows space-saving mounting of the sensors on
the conveyor system
● The deflection via the mirror is loss-free due to its special surface vaporization, as this
eliminates light refraction
● Figure 15 shows the arrangement of the side camera with mirror
Legend
1
Deflection mirror
2
Lector654
For further information about the Lector654, refer to the respective SICK operating
instructions.
