6 ELECTRICAL INSTALLATION
6.3 Connection Overview - ALIS RFID

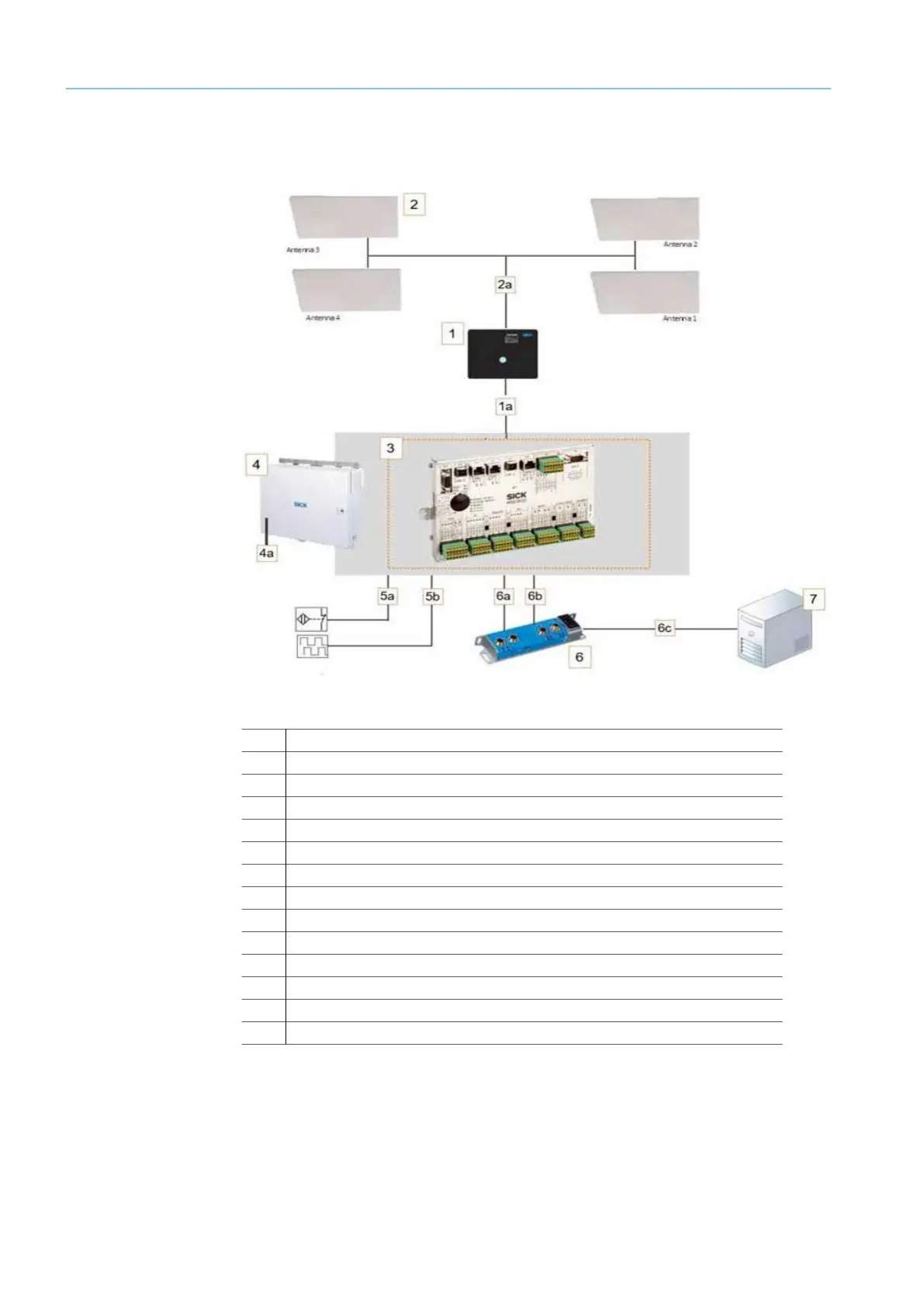

Fig. 25: Connection overview
1
Read device RFU 630-041
1a
TCP/IP
2
Antennas (3x with absorber module included and 1 for bottom reading)
2a
Coax cabel
3
MCC800 system controller
4
Cabinet
4a
Feed 230 V / 50 Hz
5a
Trigger signal
5b
Incremental signal
6
Field bus module (option)
6a
24 V voltage supply
6b
RS232 data cable (MSC800 system controller - field bus module)
6c
Data output into PROFINET network
7
Customer system
