SYSTEM COMPONENTS 4
4.6 Incremental-Encoder DFV60

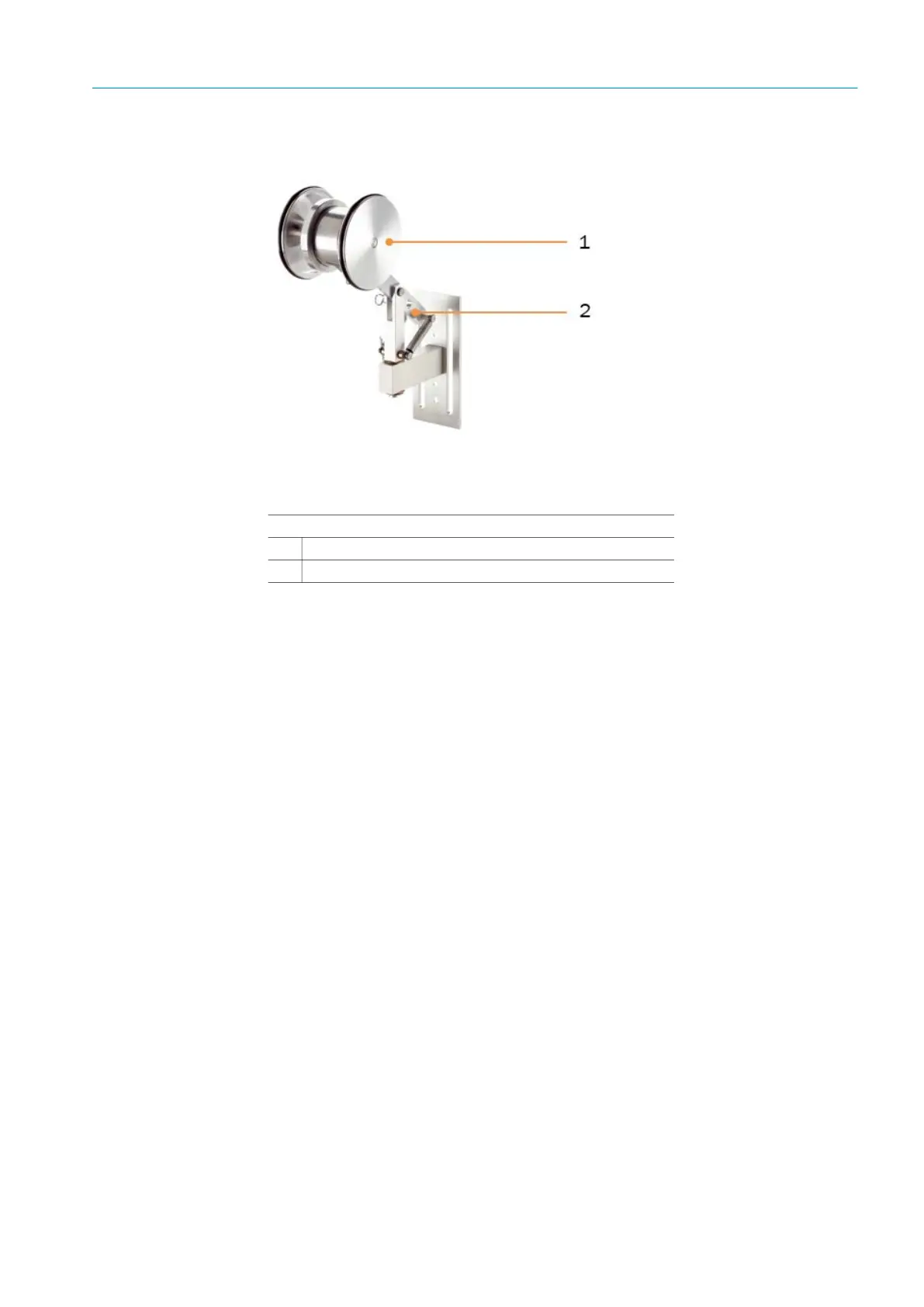

Fig. 19: Incremental encoder DFV60
Function
● Measuring wheel system, mounted under the conveyor belt.
● Large spring travel and steer ability of the spring arm to compensate for unevenness of
the measuring surface
Incremental signal
● The track and trace system requires an incremental signal
● The incremental signal is supplied either by SICK or by customer
● It is processed by the MSC800 system controller
● The belt speed is determined by means of the incremental signal
● The incremental signal together with the trigger signal enables definition of the
position of the object within the reading field
Legend
1
Wheel
2
Spring load mounting arm
