MAINTENANCE AND REPAIR 9
9.4.8 Incremental Encoder Replacing
A defective encoder must be replaced immediately.

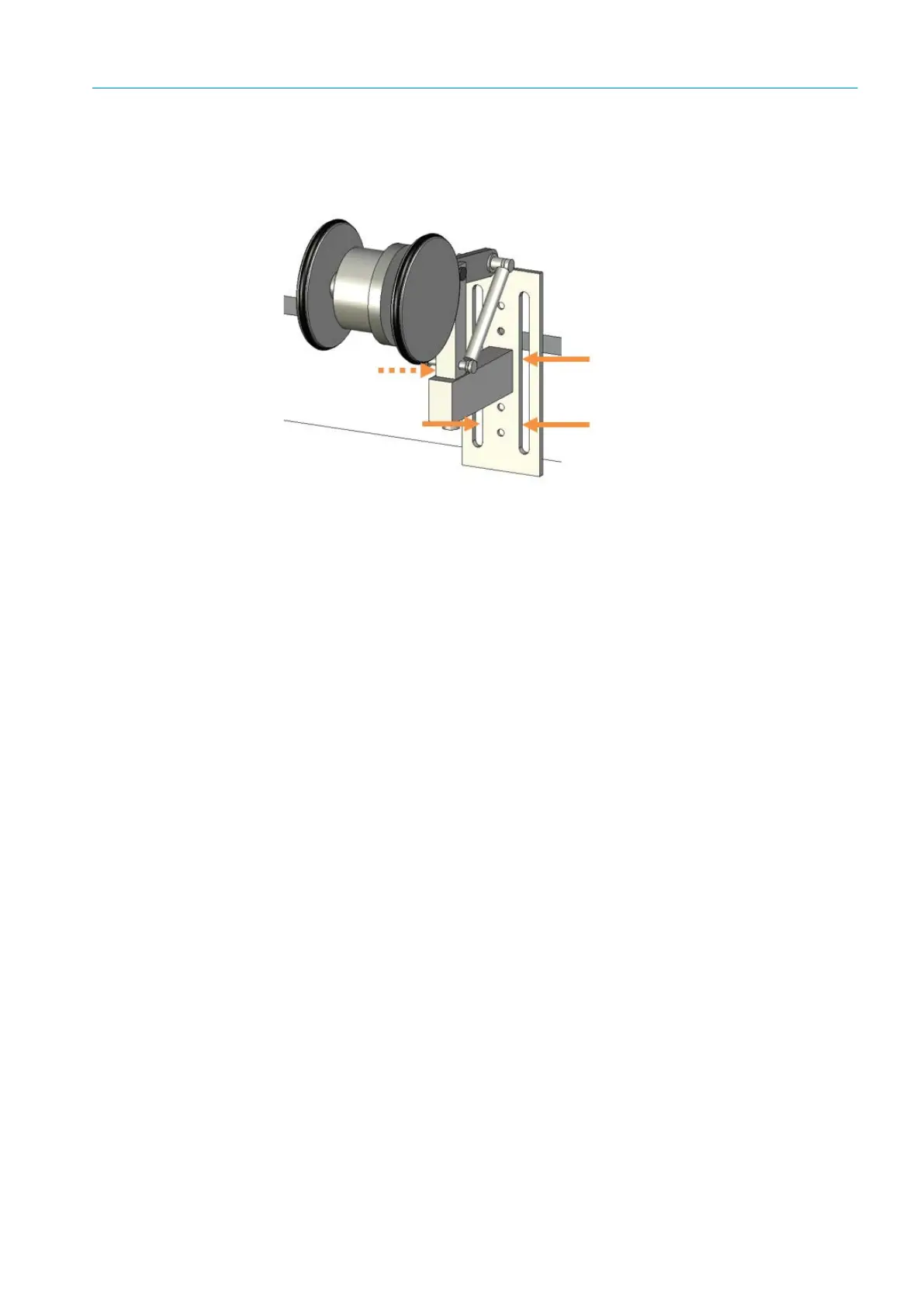

Fig. 58: Replacing the incremental encoder
▸ Unscrew the M12 pug connector from the male connector on the incremental encoder.
▸ Loosen and remove the fixing screws.
▸ Mount the replacement device on the conveyor belt
Note Observe the correct mounting direction.
▸ Screw the M12 pug connector onto the male connector on the incremental encoder.
