38
8027605/V1-0/2022-03| SICKS Y S T E M D E S C R I P T I O N | ALIS
Subject to change without notice
4 SYSTEM COMPONENTS
4.7 Accessories (option)
4.7.1 CDF600-2200 Field Bus Module (Option)

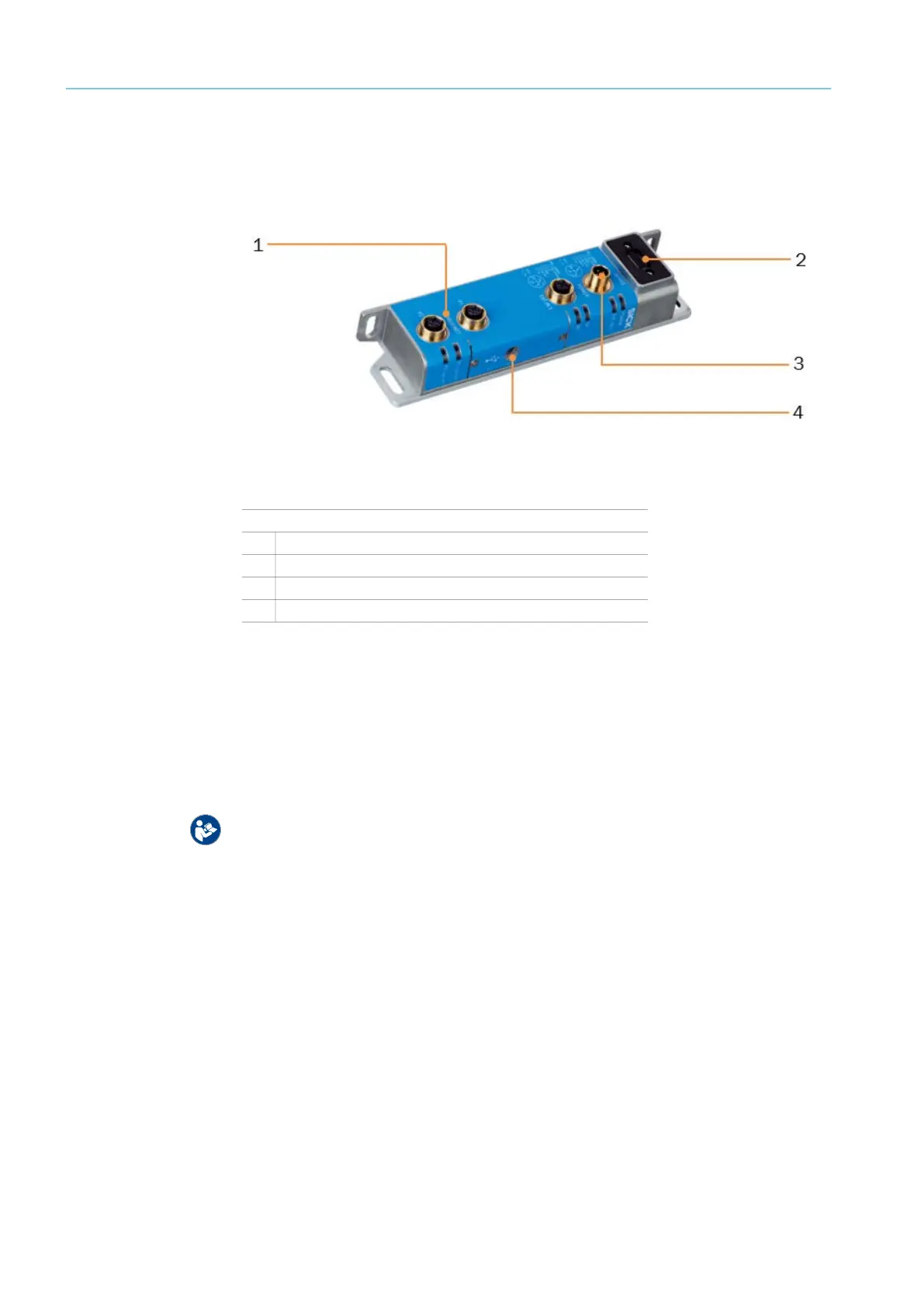

Fig. 20: CDF600-2200 field bus module
Function
● Field bus proxy/gateway for connecting the track and trace system to a PROFINET IO net-
work
● Connected to the MSC800 data interface and the customer network
● Encoding switches that are mounted and protected behind the side cover and easily
accessible from the outside for easy setup of bus address and operating mode
Legend
1
Connection to the customer network
2
Serial data interface to the MSC800 controller
3
Connecting the voltage supply
4
Rotary encoding switch behind the side cover
For further information about the CDF600-2200 - Field Bus Module, refer to the respec-
tive SICK operating instructions.
