MAINTENANCE AND REPAIR 9
9.4.2 CLV651 Replacing
With a CLV651 bar code scanner, the device parameters are saved on a microSD card.
This makes it easier to replace components.

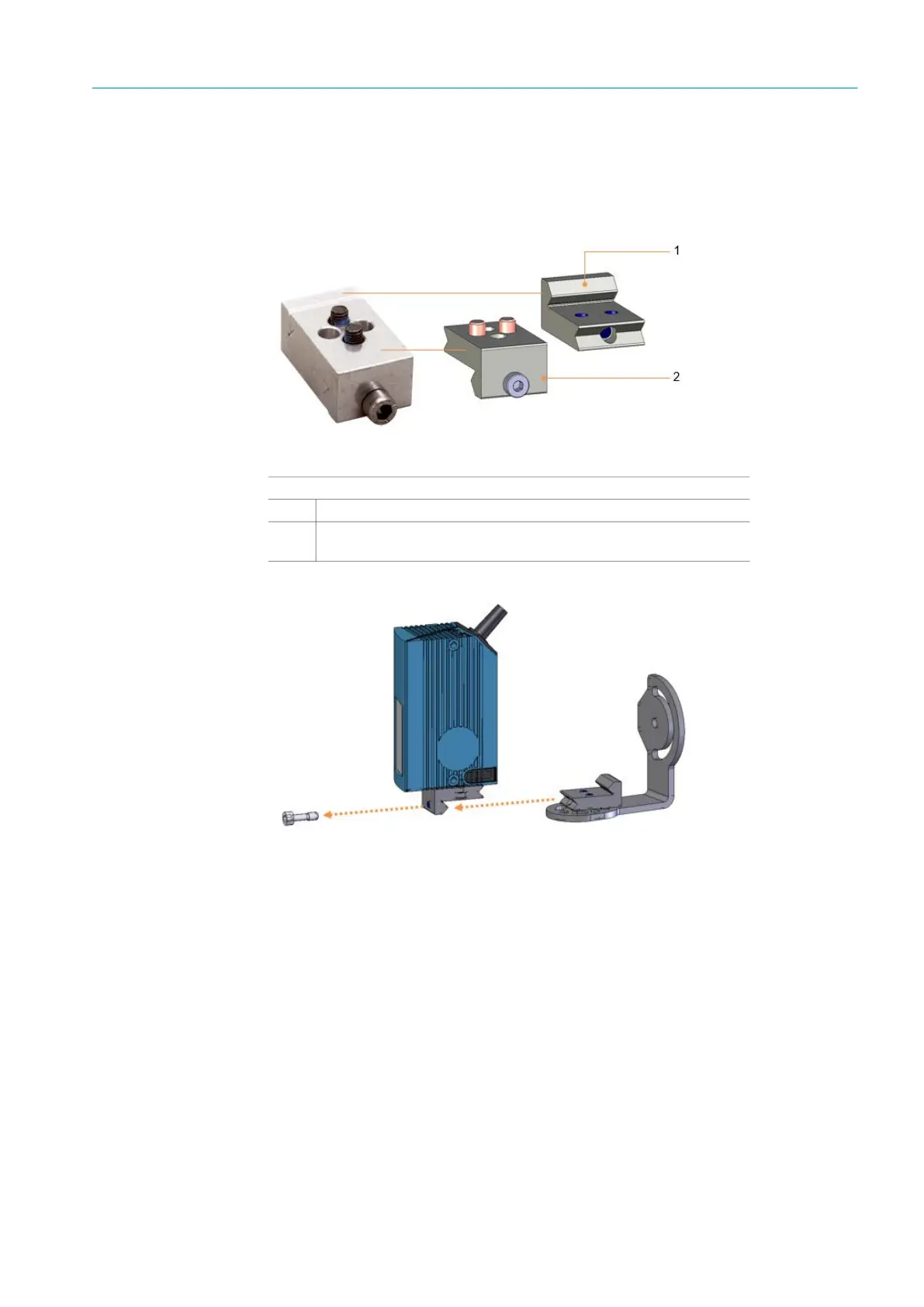

Quick release design
Fig. 45: Quick release design
Remove via quick release
Fig. 46: Remove via quick release
▸ Undo the M5 setscrew used to fasten the clamp to the clamping profile and pull it out of
the bore hole.
▸ Remove the clamp, with the CLV651 mounted on it, from the clamping profile.
▸ Loosen and remove the M6 countersunk screws.
Legend
1
Clamping profile. Screwed onto the mounting bracket
2
Clamp. Used to accommodate the fixed mount bar code scanner.
Inserted into the clamping profile and fixed in place.
