3 SYSTEMS DESCRIPTION
3.4 ALIS - Hybrid
3.4.1 RFID and Laser Scanner Reading System

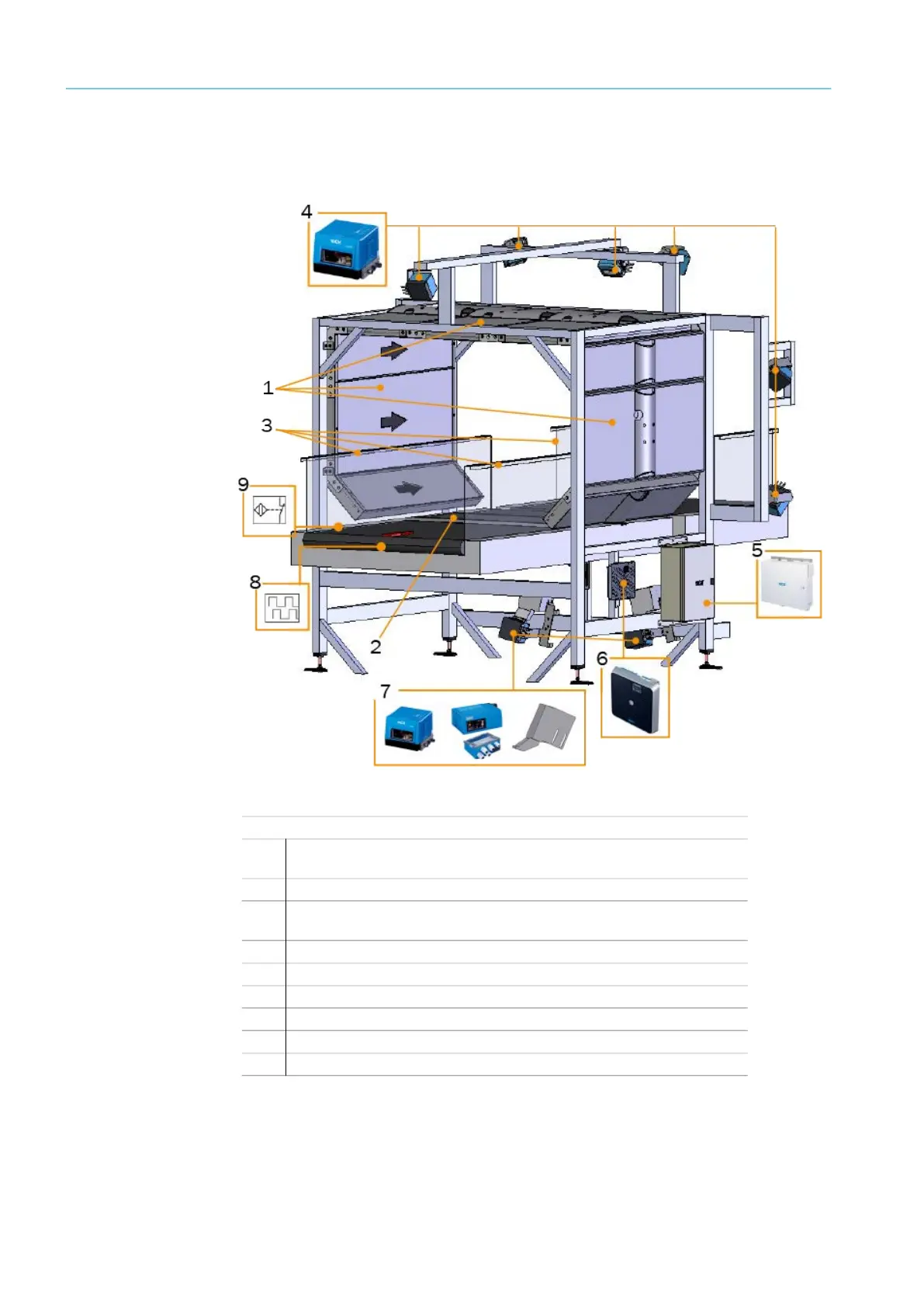

Fig. 5: Components of the ALIS RFID - Laser combination
Legend
1
Absorber modules with integrated antenna.
The remaining modules are without antennas.
2
Bottom antenna mounted between conveyor bed and conveyor belt
3
Side guards must not be made of metal
(not included in SICK scope of delivery)
4
Eight CLV691 fixed mount bar code scanner
5
Cabinet with controller and power supply unit
6
RFU630 read/write device
7
Two CLV691 fixed mount bar code scanner with cleaning unit
8
Incremental signal
9
Trigger signal
