6 ELECTRICAL INSTALLATION
6.1 Connection Overview CLV691 - ALIS Laser

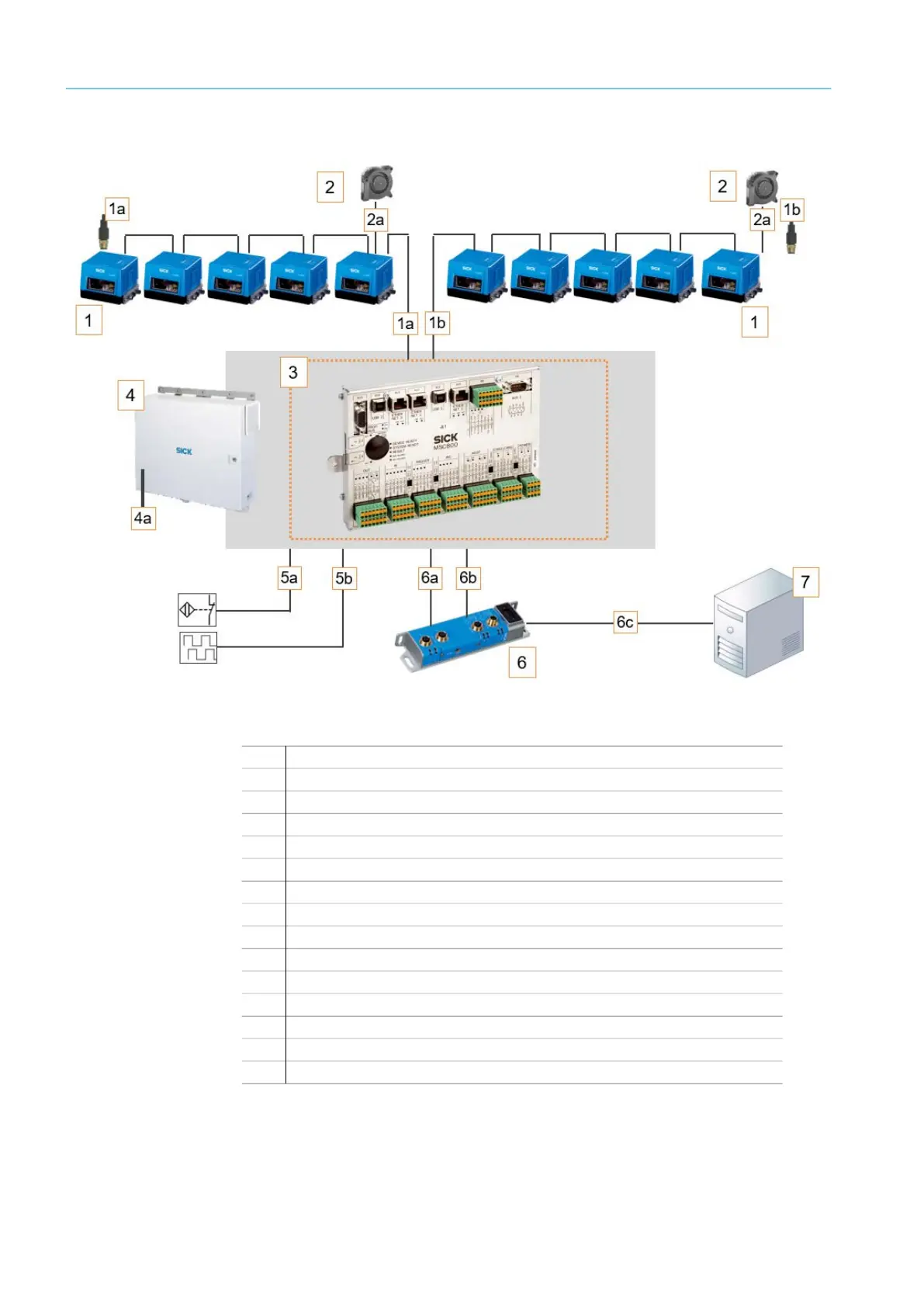

Fig. 23: Connection overview
1
CLV691
1a
CAN 1 (CAN bus, 24 V voltage supply, incremental signal, terminator)
1b
CAN 2 (CAN bus, 24 V voltage supply, incremental signal, terminator)
2
Cleaning Unit
2a
Voltage supply
3
MSC800 system controller
4
Cabinet
4a
Feed 230 V / 50 Hz
5a
Trigger signal
5b
Incremental signal
6
Field bus module (option)
6a
24 V voltage supply
6b
RS232 data cable (MSC800 system controller - field bus module
6c
Data output into PROFINET network
7
Customer's system
