SICK ALIS - System End; Stopping the Conveying Syste

52
8027605/V1-0/2022-03| SICKS Y S T E M D E S C R I P T I O N | ALIS
Subject to change without notice
8 OPERATION

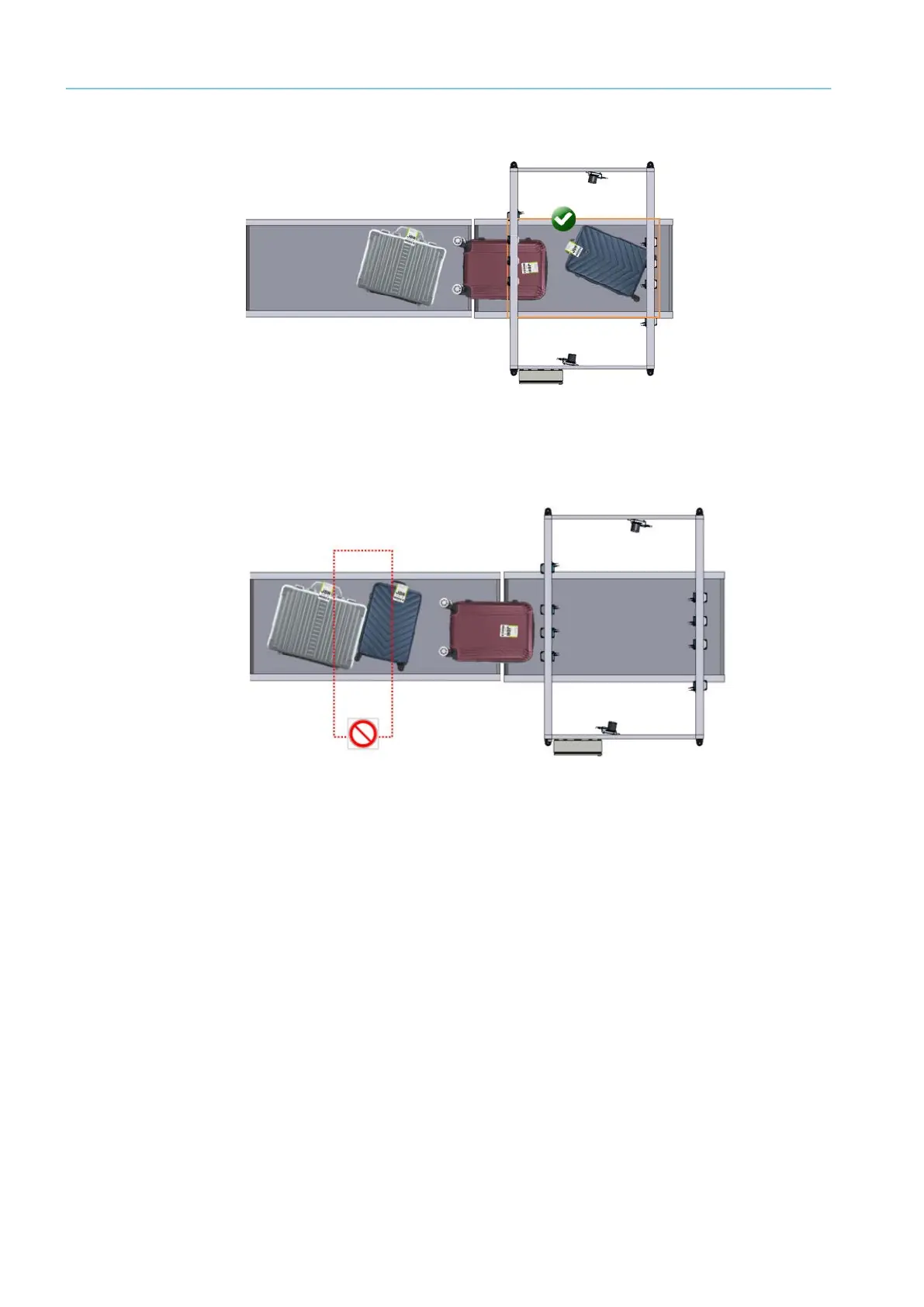

Several bags in reading field
Fig. 33: Several bags in reading field
● Several bags can be in the reading field
● The minimum distance must be upheld here
Not allowed
Fig. 34: No touching
● The objects must not be touching
● Otherwise the track and trace system will not deliver plausible read results.
8.3 System End
The conveying system is stopped by the customer.
8.3.1 Stopping the Conveying Syste,
▸ Wait until all objects have been processed.
Note
Do not stop the conveyor system if there is still an object in the reading area or if it enters
the reading area.
