3 SYSTEMS DESCRIPTION
3.5 General Information
3.5.1 Integration Into Customer System

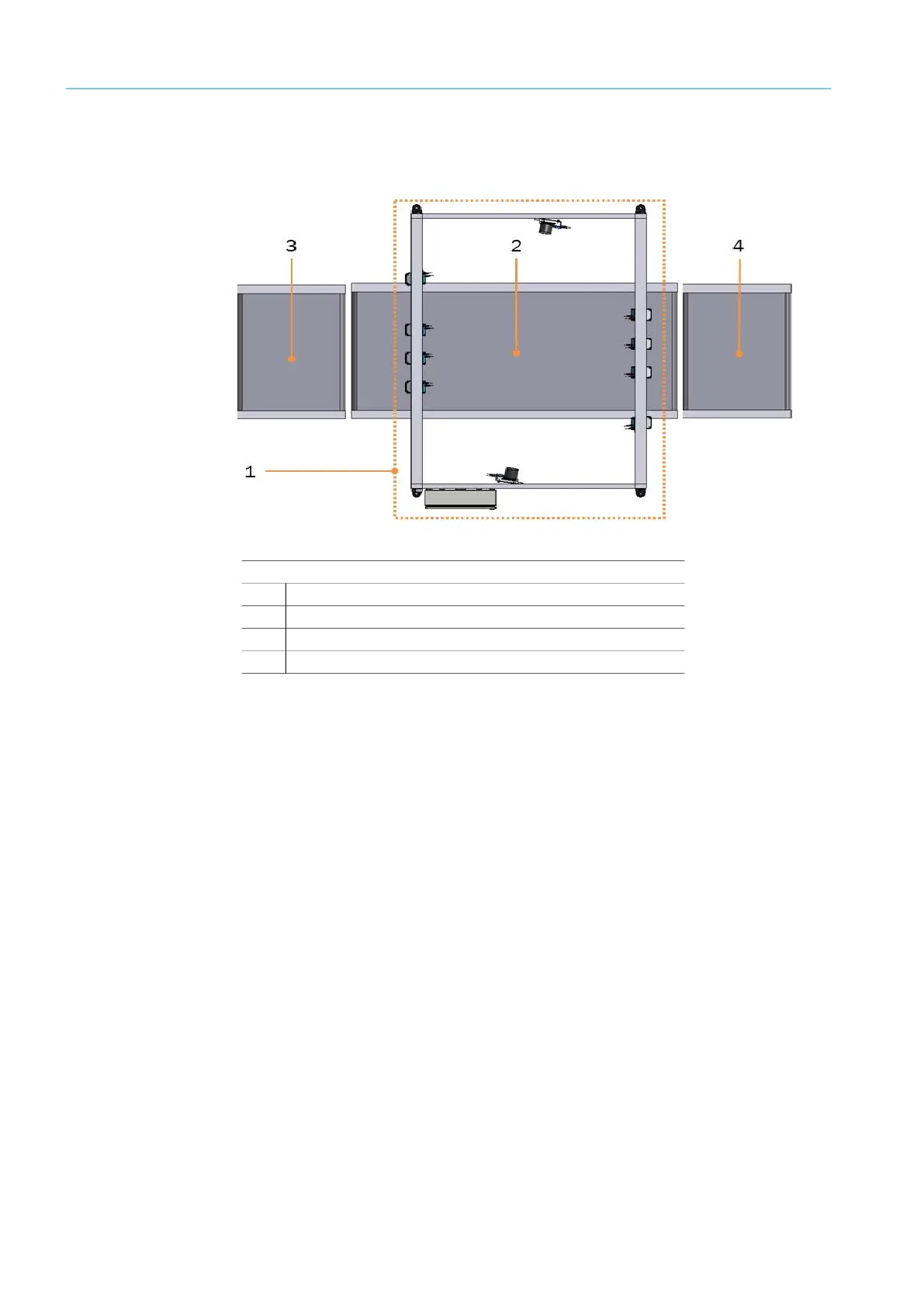

Fig. 7: Integration in customer system
Conveyor Systems
A conveyor system provided by the system integrator conveys the objects to the reading sta-
tion of the track and trace system.
The bar code reading can be realized by top, front, rear, side and underbelt mounted scan-
ners or cameras.
For underbelt reading the recommended belt gap is:
– with laser scanners of 50mm
– with cameras of 80mm
Legend
1
Track and trace system (example)
2
Conveyor technology provided by customer
3
Inbound conveyor
4
Outbound conveyor
Note
For standard systems, the conveyor must be straight. However, it is also possible to install
systems in curves, but these are then customized.
